- Outlander MAX 650EFI STD, XT & XT-P, 2012
07- Steering STD, XT

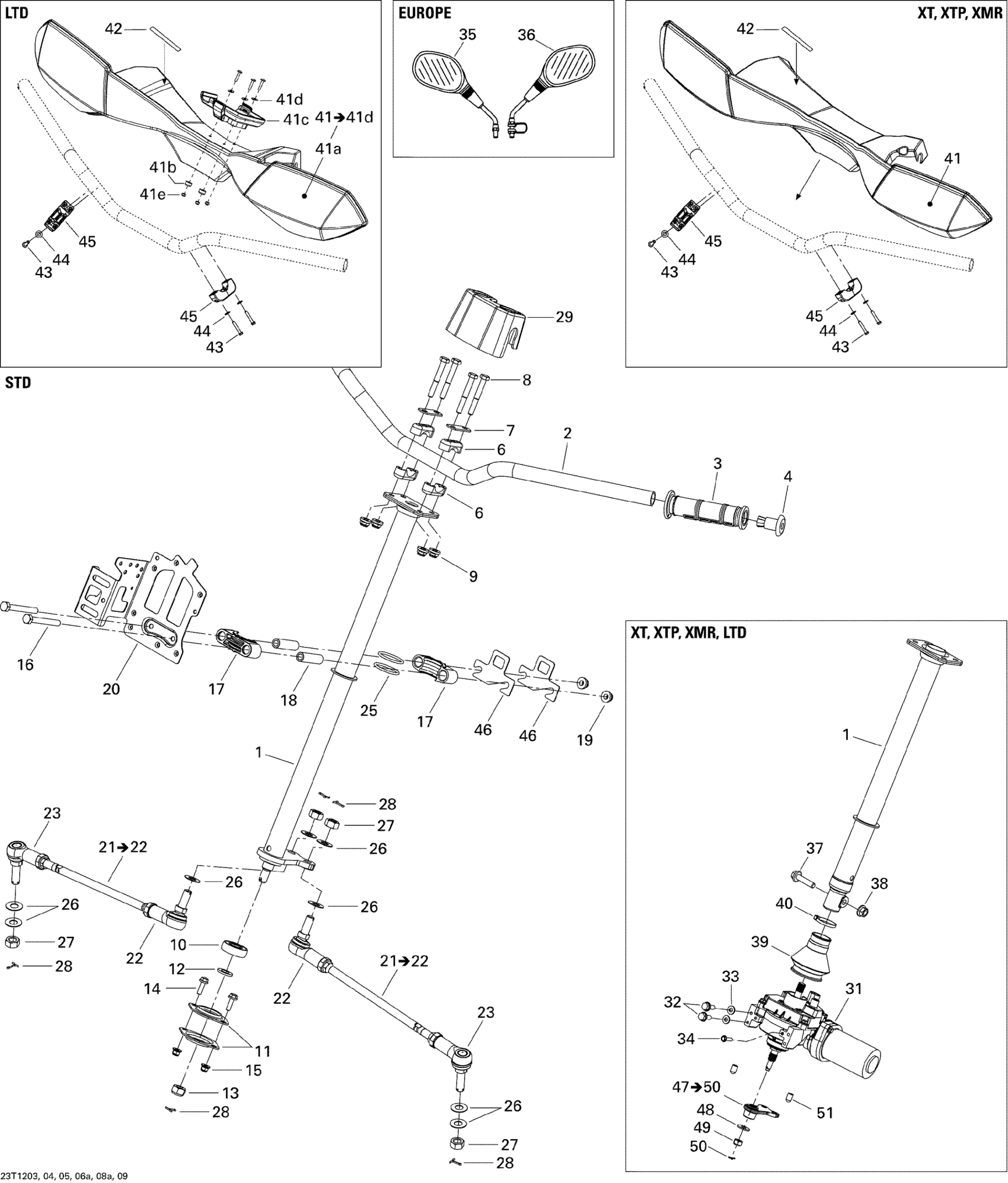

Can-Am Outlander MAX 650EFI STD, XT & XT-P, 2012 07- Steering STD, XT Diagram
#
1
Tube-Main
715900573
Unavailable
1
Main Tube, Black
709400971
Unavailable
2
Black, Handle Bar
709401240
Unavailable
3
Handle Grip
709400493
Unavailable
4
End Piece
709400449
Unavailable
6
Steering Support
709400919
Unavailable
7
Stiffner
709400509
Unavailable
8
Hex. Screw M8 X 60
207086046
Unavailable
9
Hex. Elastic Flange Nut M8
233281416
Unavailable
10
Ball Bearing
709400439
Unavailable
11
FLANGE, BEARING - Call your local BRP dealership
709400152
Unavailable
12
Flat Washer 12 mm
234021410
Unavailable
13
Hex. Flange Elastic Nut M12
250000047
Unavailable
14
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
15
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
16
Hex. Screw M8 X 70
207087044
Unavailable
17
Half Bushing
709400471
Unavailable
18
BUSHING - Call your local BRP dealership
709400072
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
MODULE SUPPORT - Call your local BRP dealership
709400751
Unavailable
21
Tie Rod Ass'y
709401059
Unavailable
22
LH Ball Joint
709402303
Unavailable
23
Ball Joint, RH Threads
709400487
Unavailable
25
O-Ring
293300068
Unavailable
26
Hardened Washer
706200281
Unavailable
27
Nut M12
250100099
Unavailable
28
Cotter Pin
211400013
Unavailable
29
Steering Cover | STD
709400278
Unavailable
31
Power Steering
709401608
Unavailable
32
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
33
Conical Spring Washer M8
234281474
Unavailable
34
Screw-Forming Hex.Hd.Fl.Bzn M5 X 20
250000992
Unavailable
35
LH Mirror | Europe
709400406
Unavailable
36
RH Mirror | Europe
709400407
Unavailable
37
Hex. Flange Screw M8 X 35
207683544
Unavailable
38
Hex. Flange Elastic Nut M8
233281414
Unavailable
39
Bellows
709400674
Unavailable
40
Tie-Rap 180 mm
414115200
Unavailable
41
Handle Guard Ass'y, XT
703100352
Unavailable
41a
Not Available As Spare Parts
XXX
Unavailable
41b
Not Available As Spare Parts
XXX
Unavailable
41c
Not Available As Spare Parts
XXX
Unavailable
41d
Not Available As Spare Parts
XXX
Unavailable
41e
Not Available As Spare Parts
XXX
Unavailable
42
Decal "Dynamic Power Steering"
704905284
Unavailable
43
Hex. Flange Screw K40 X 25
241142560
Unavailable
44
Flat Washer | XT
211200035
Unavailable
45
U-Clamp | XT
517303264
Unavailable
46
SHIM 2 MM - Call your local BRP dealership
709400734
Unavailable
46
SHIM 1 MM - Call your local BRP dealership
709400735
Unavailable
47
LOWER MAIN TUBE KIT - Call your local BRP dealership | Includes 25 to 27
703500784
Unavailable
48
Hardened Washer
706200281
Unavailable
49
Hex. Flange Elastic Nut M12
250000047
Unavailable
50
Cotter Pin
250400034
Unavailable
51
CAP - Call your local BRP dealership | XT
709401032
Unavailable
