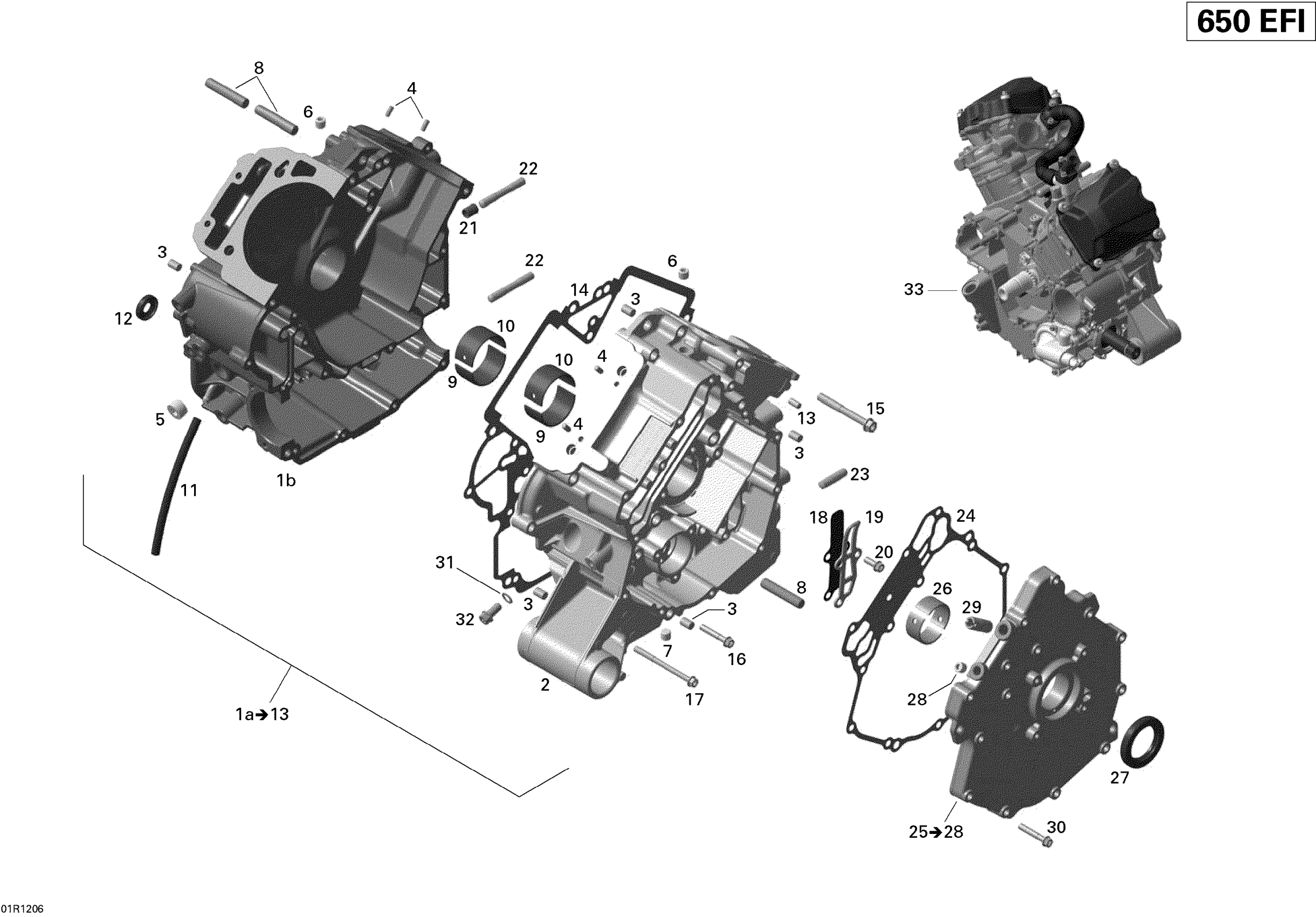

Can-Am Outlander MAX 650EFI STD, XT & XT-P, 2012 Crankcase Diagram

#

Description
Price

1a

Crankcase Ass'y | Includes 1a to 14

420685317

$1,150.49

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Center Pin 8 X 12

420632010

$4.01

4

Drive Pin 5 X 10

420929650

$1.68

5

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.41

6

Plug Screw M10 X 1

420641323

$14.28

7

Plug Screw M12x1,5

420840658

$7.51

8

Location Pin 10 M6x50

420229302

$3.17

9

Plain Bearing

420233960

$23.99

10

Plain Bearing

420233965

$23.99

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Oil Seal

420650315

$11.65

13

Needle Pin

420932780

$7.41

14

Gasket

420651220

$35.99

15

Torx Flange Screw M8 X 65

420440402

$7.41

16

Torx Flange Screw M6 X 35

420641258

$3.38

17

Torx Flange Screw M6 X 75

420440657

$4.44

18

Reed Valve

420224721

$19.19

19

Reed Valve Stop

420224725

$11.63

20

Torx Flange Screw M6 X 16

420641048

$2.96

21

Dowel Pin 10 X 13

420929670

$11.60

22

Stud

420240816

$7.09

23

Stud

420840718

$11.11

24

Gasket

420651211

$26.49

25

PTO Cover Ass'y | Includes 25a to 29

420612335

$280.99

26

Bearing Sleeve

420233995

$20.99

27

Oil Seal

420631933

$27.49

28

Plug Screw M10 X 1

420641323

$14.28

29

Hose Nipple

420256332

$17.53

30

Torx Flange Screw M6 X 35

420641258

$3.38

31

Sealing Ring

420950141

$2.00

32

Torx Flange Screw M8 X 16

420440852

$4.12

33

LONG BLOCK, 650EFI - Call your local BRP dealership

420066037

Unavailable
