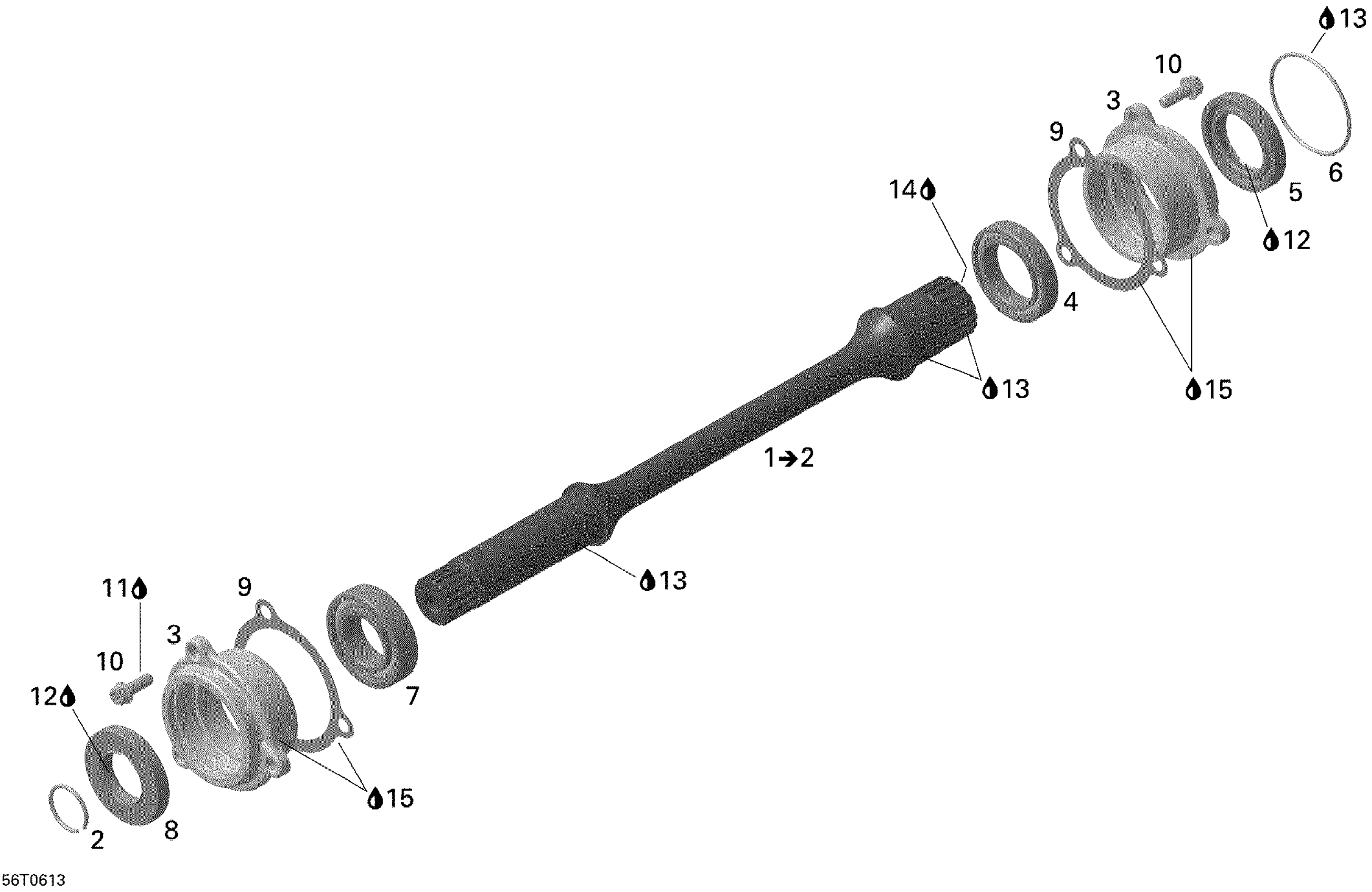

Can-Am Outlander MAX 650 XT 4 X 4, 2006 Drive Shaft (Up to engine number M6377191) Diagram

#

Description

Price

1

DRIVE SHAFT ASS'Y - Call your local BRP dealership | Includes 1 to 2

420620515

Unavailable

2

Circlip

420245010

$5.52

3

Bearing Cover

420611223

$32.28

4

Ball Bearing

420632275

$41.32

5

Oil Seal

420850055

$16.62

6

O-Ring

420230306

$10.98

7

Ball Bearing

420232342

$25.17

8

Oil Seal

420430580

$23.05

9

GASKET - Call your local BRP dealership

420430160

Unavailable

10

Torx Flange Screw M6 X 16

420641048

$2.46

11

Loctite 243, 10 ml

293800060

$20.77

12

Grease, Super Lube

293550030

$24.67

13

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

14

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

15

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97
