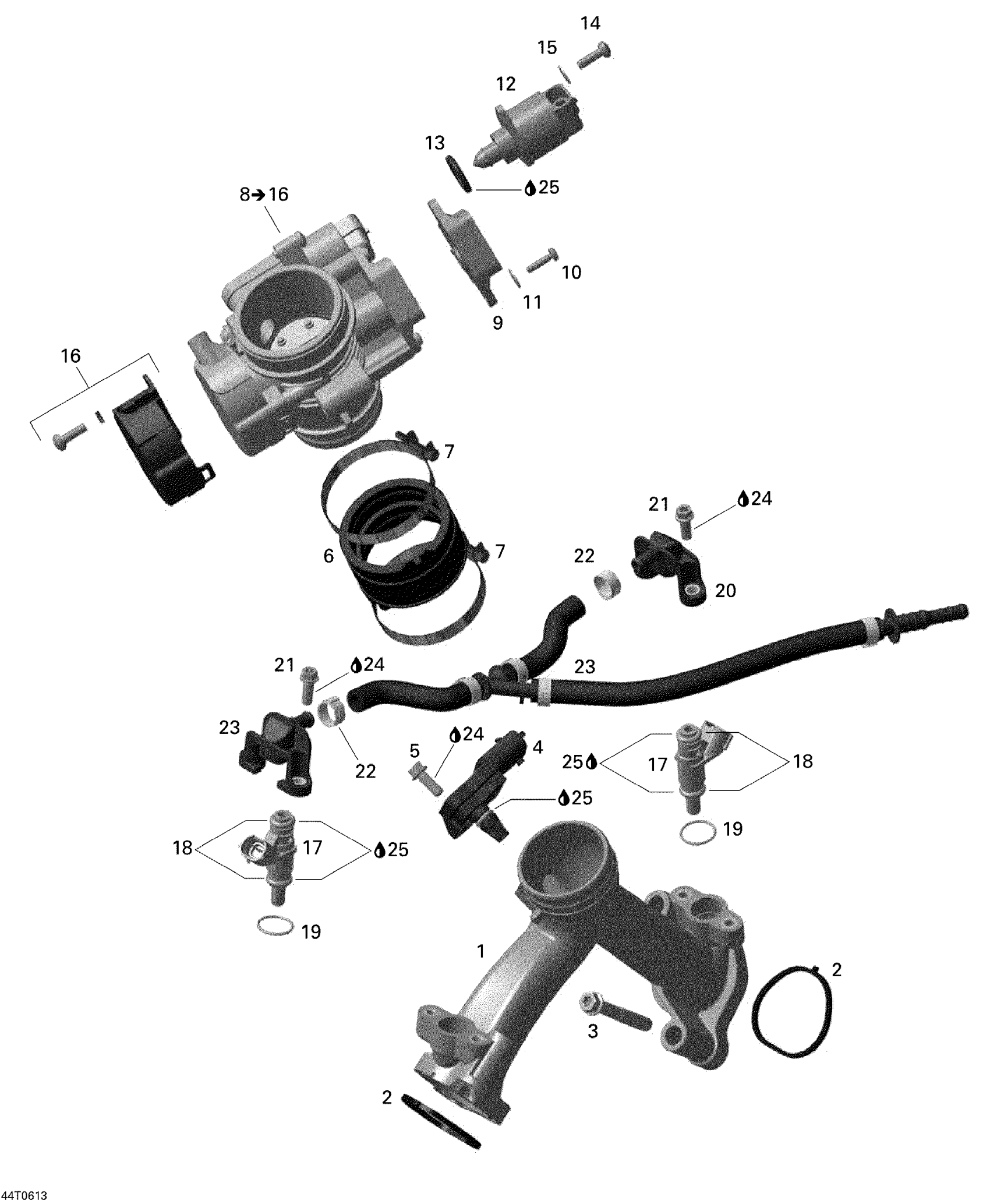

Can-Am Outlander MAX 650 XT 4 X 4, 2006 Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420667250

Unavailable

2

Gasket

420630640

$4.29

3

Torx Flange Screw M8 X 55

420641213

$7.41

4

Pressure And Temperature Sensor

707000995

$88.99

5

Torx Flange Screw M6 X 16

420641048

$2.96

6

Intake Adaptor

420267480

$15.89

7

Clamp

420251480

$14.28

8

Throttle Body Ass'y | Includes 8 to 16

420685326

$709.99

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Idle Air Control Valve

420665941

$179.99

13

O-Ring

420631780

$4.44

14

Binding Head Screw M5 X 16

420440911

$14.28

15

Snap Ring

420845710

$4.12

16

Cover Kit

420281540

$20.99

17

Injection Valve

420874402

$185.49

18

O-Ring

420631220

$14.28

19

O-Ring

420631296

$0.76

20

Fuel Rail

420874410

$19.99

21

Torx Flange Screw M6 X 16

420641048

$2.96

22

Clamp

420851458

$7.41

23

FUEL INJECTOR LINE ASS'Y - Call your local BRP dealership

420874712

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
