- Outlander MAX 650 XT 4 X 4, 2006
01- Gear Box 2

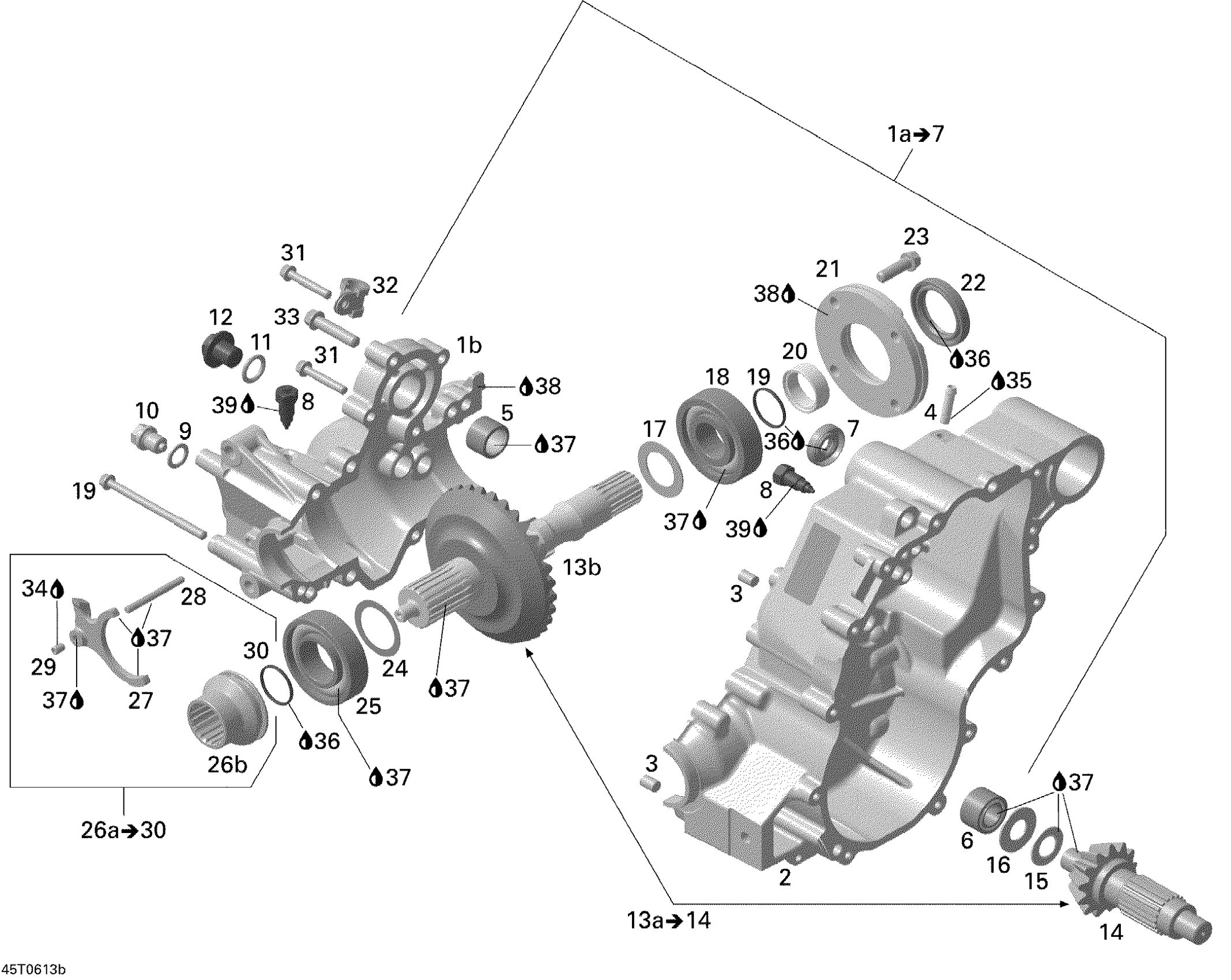

Can-Am Outlander MAX 650 XT 4 X 4, 2006 01- Gear Box 2 Diagram
#
1a
Gear Housing Ass'y | Includes 1a to 7
420686205
Unavailable
1b
Not Available As Spare Part - Friction Washer
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Center Pin 8 X 12
420632010
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Needle Bushing
420832240
Unavailable
6
Needle Bushing
420232085
Unavailable
7
Oil Seal
420250450
Unavailable
8
Position Switch
420241856
Unavailable
9
Copper Washer
420250640
Unavailable
10
Magnetic Drain Plug M12
420241787
Unavailable
11
O-Ring
420650350
Unavailable
12
Plug Screw M14 X 1.5
420241662
Unavailable
13a
Drive Ass'y | Includes 13a to 14
420296540
Unavailable
13b
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Axial Needle Bearing
420632300
Unavailable
16
Thrust Washer Set, MAG Side
420281306
Unavailable
17
Washer Thrust Set
420281300
Unavailable
18
Ball Bearing
420932822
Unavailable
19
Torx Flange Screw M6 X 85
420641228
Unavailable
20
Distance Ring
420247111
Unavailable
21
Bearing Cover
420611444
Unavailable
22
Oil Seal
420950089
Unavailable
23
Torx Flange Screw M8 X 25
420440372
Unavailable
24
Shim 0.5
420944584
Unavailable
25
Ball Bearing
420932580
Unavailable
26a
Shifting Sleeve Kit | Includes 26a to 30
420257675
Unavailable
26b
Not Available As Spare Part - Friction Washer
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
29
SET SCREW M6 X 8 - Call your local BRP dealership
420841771
Unavailable
30
O-Ring
420631612
Unavailable
31
Torx Flange Screw M6 X 35
420440274
Unavailable
32
CABLE CLAMP - Call your local BRP dealership
420251690
Unavailable
33
Torx Flange Screw M8 X 35
420641188
Unavailable
34
Loctite 243, 10 ml
293800060
Unavailable
35
Sealant Loctite 648
219703000
Unavailable
36
Grease, Super Lube
293550030
Unavailable
37
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
38
Loctite 5910, 300 ml
293800081
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
