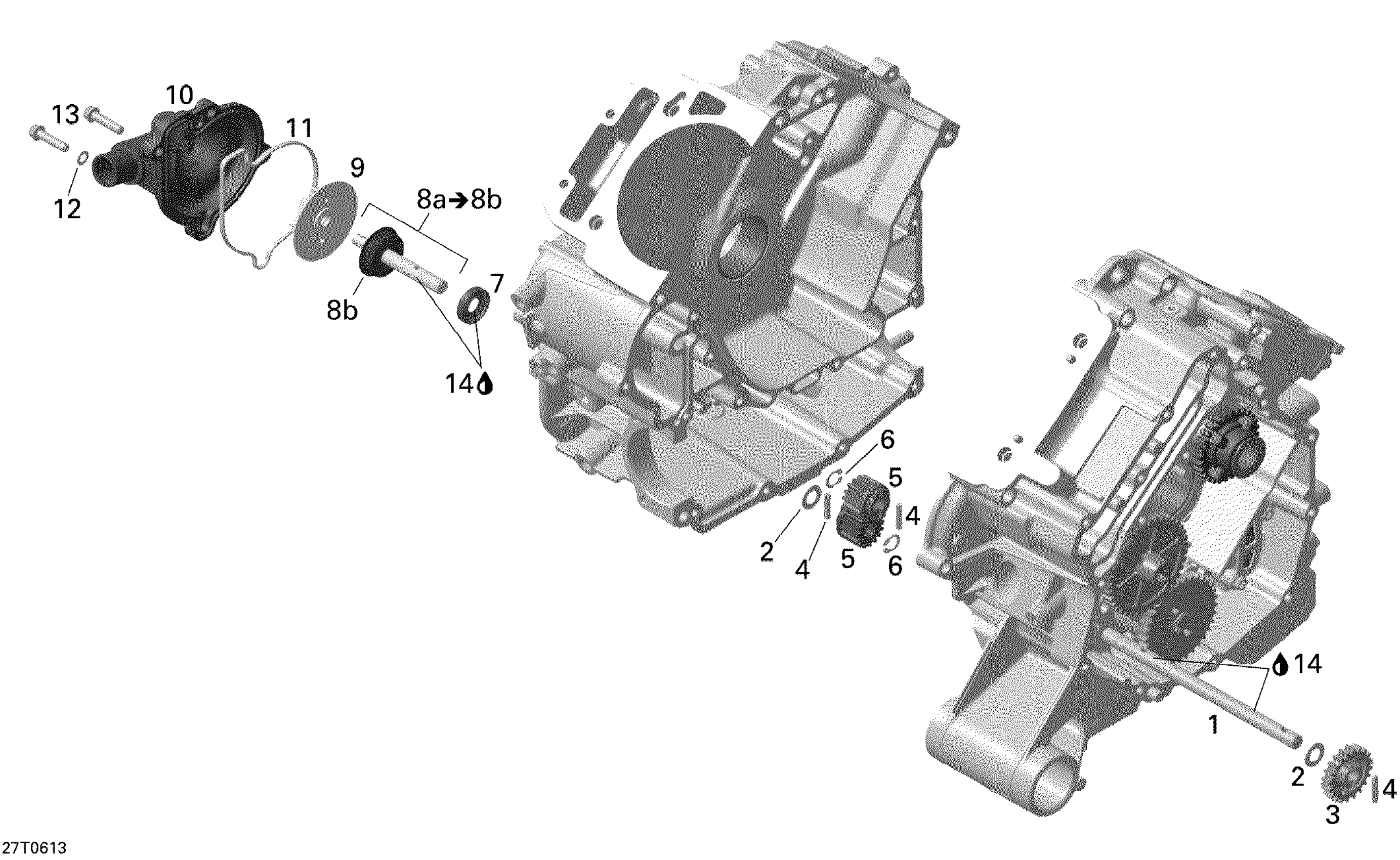

Can-Am Outlander MAX 650 XT 4 X 4, 2006 Engine Cooling Diagram

#

Description
Price

1

Intermediate Shaft

420620500

$36.99

2

Thrust Washer

420827590

$4.01

3

Water Pump Gear

420434330

$11.63

4

Needle Pin

420232420

$4.01

5

Pump Gear, 15 Teeth

420234627

$11.63

6

Snap Ring

420245330

$1.79

7

Oil Seal

420650315

$11.65

8a

Water Pump Shaft Ass'y | Includes 8a to 8b

420620175

$72.99

8b

Rotary Seal

420650371

$43.49

9

Water Impeller

420222505

$19.99

10

Kit Water Pump Housing

703501124

$53.99

11

Gasket

420651190

$8.57

12

Seal Washer

420230415

$1.79

13

Torx Flange Screw M6 X 25

420641238

$3.27

14

Not Available As Spare Part - Friction Washer

Unavailable
