01- Cylinder Head, Front

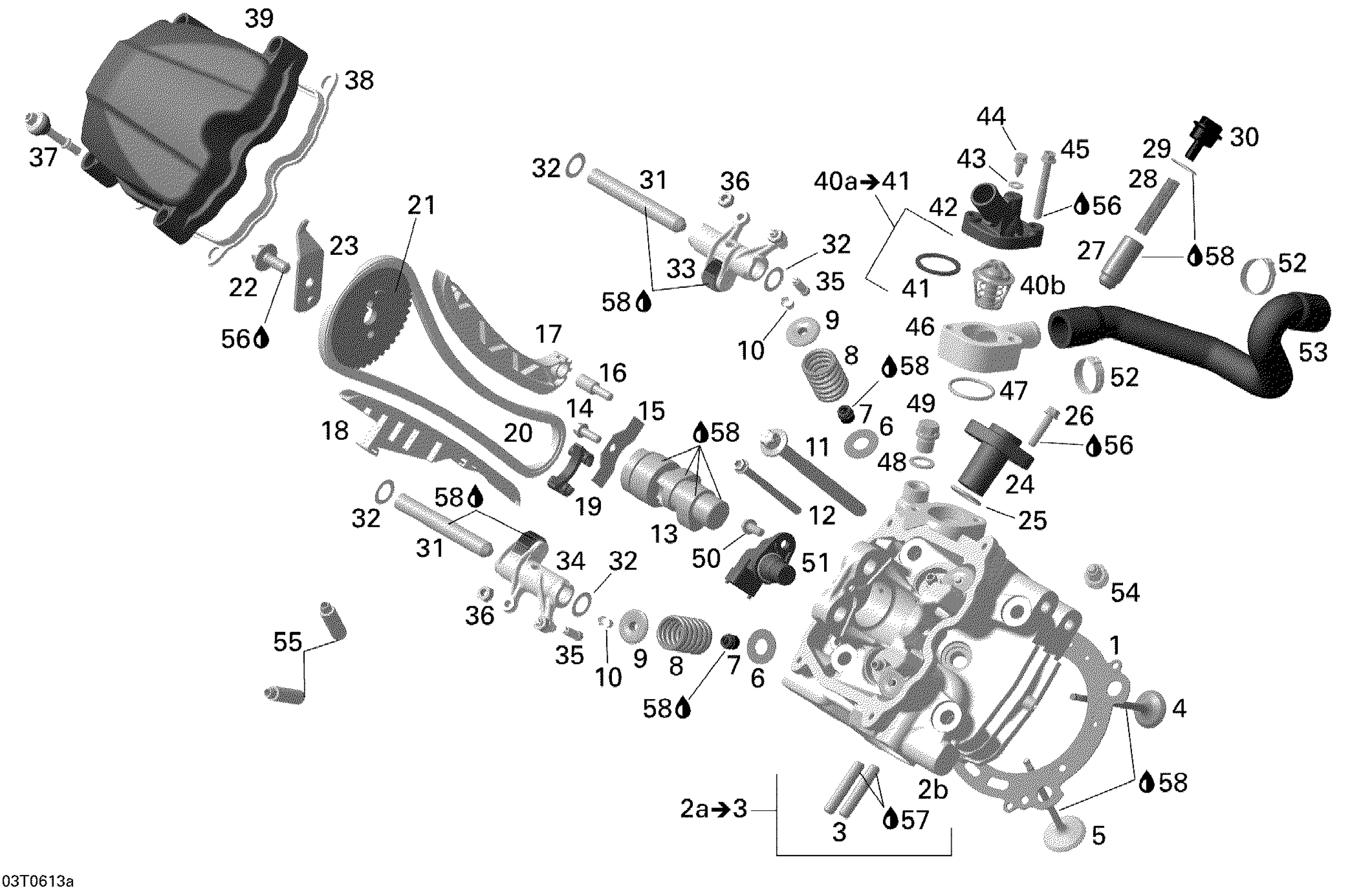

Can-Am Outlander MAX 650 XT 4 X 4, 2006 01- Cylinder Head, Front Diagram
#
1
Cylinder Head Gasket | 330HO
420630850
Unavailable
2a
Cylinder Front Ass'y | Includes 2a to 3
420613534
Unavailable
2b
Not Available As Spare Part - Friction Washer
Unavailable
3
Stud M8 x 26
420941014
Unavailable
4
Intake Valve 31MM
420254359
Unavailable
5
Exhaust Valve 27MM
420254368
Unavailable
6
Thrust Washer
420627525
Unavailable
7
Valve Stem Seal
420230515
Unavailable
8
Valve Spring
420239295
Unavailable
9
Valve Spring Retainer
420254132
Unavailable
10
Cotter Valve
420254120
Unavailable
11
Torx Screw M10X140
420641551
Unavailable
12
Torx Flange Screw M6 X 85
420641228
Unavailable
13
CAMSHAFT - Call your local BRP dealership
420620023
Unavailable
14
Torx Flange Screw M6 X 16
420641048
Unavailable
15
Holding Strip
420627743
Unavailable
16
Bearing Screw M6
420240943
Unavailable
17
Chain Tension Guide
420436015
Unavailable
18
Chain Guide
420236584
Unavailable
19
Chain Guide
420236351
Unavailable
20
Silent Chain
420297063
Unavailable
21
Camshaft Sprocket
420254434
Unavailable
22
Hex. Collar Screw M8 X 20 | 330HO
420241721
Unavailable
23
Trigger
420664255
Unavailable
24
Chain Tensioner Housing
420236510
Unavailable
25
O-Ring
420430373
Unavailable
26
Torx Flange Screw M6 X 25
420641238
Unavailable
27
Chain Tensioner Plunger
420236521
Unavailable
28
Spring
420238120
Unavailable
29
O-Ring
420250890
Unavailable
30
Plug Screw
420641150
Unavailable
31
Pin #12, Small, M6 X 90
420229712
Unavailable
32
Shim
420944382
Unavailable
33
Inlet Rocker Arm
420254907
Unavailable
34
Exhaust Rocker Arm
420254911
Unavailable
35
Adjustment Screw M6 X 0.75
420241337
Unavailable
36
Hex Nut M6
420242913
Unavailable
37
Hex Screw M6 X 30
420440568
Unavailable
38
Gasket
420630260
Unavailable
39
Valve Cover
420610393
Unavailable
40a
Thermostat 65° With Gasket Ass'y | Includes 42 to 43
420222494
Unavailable
40b
Not Available As Spare Part - Friction Washer
Unavailable
41
Thermostat Gasket
420650300
Unavailable
42
Thermostat Cover
420222696
Unavailable
43
Gasket Ring
420650255
Unavailable
44
Screw M5 X 16
420441621
Unavailable
45
Torx Flange Screw M6 X 45
420641198
Unavailable
46
Connection Socket
420222894
Unavailable
47
O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws
420631300
Unavailable
48
Copper Washer
420250640
Unavailable
49
Plug screw
420841924
Unavailable
50
Torx Flange Screw M6 X 16
420641048
Unavailable
51
Camshaft Position Sensor Ass'y
420664046
Unavailable
52
Clamp
420251578
Unavailable
53
Water Tube
420822353
Unavailable
54
Spark Plug, NGK DCP-R8E
715900637
Unavailable
55
Valve Guide
420254374
Unavailable
56
Loctite 243, 10 ml
293800060
Unavailable
57
Sealant Loctite 648
219703000
Unavailable
58
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
