- Outlander MAX 650 STD 4 X 4, 2006
10- Electrical System MAX STD

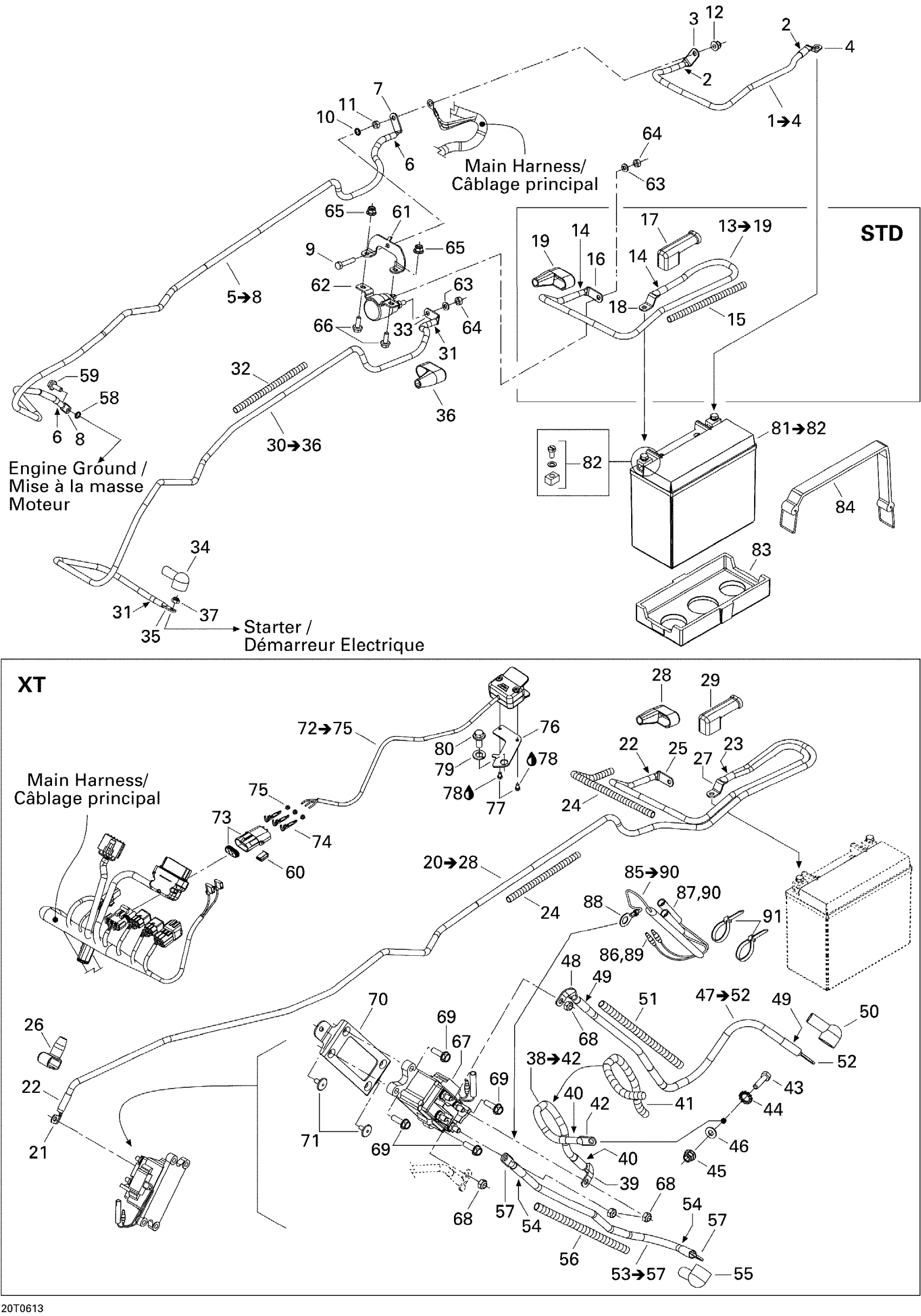

Can-Am Outlander MAX 650 STD 4 X 4, 2006 10- Electrical System MAX STD Diagram
#
1
Ground Cable Ass'y, Battery/Frame | Includes 1 to 4
710000830
Unavailable
2
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
3
Open Barrel
710000508
Unavailable
4
Open Barrel | STD Models
710000518
Unavailable
5
GROUND CABLE - Call your local BRP dealership | Includes 5 to 8
710000844
Unavailable
6
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
7
Open Barrel
710000508
Unavailable
8
Open Barrel
710000530
Unavailable
9
Hex. Screw M6 X 25
207162544
Unavailable
10
External Serrated Lock Washer 6 mm
234461608
Unavailable
11
Hex. Nut M6
232061414
Unavailable
12
Hex. Flange Nut M6
233061414
Unavailable
13
Positive Cable Ass'y | STD, Includes 22 to 28
710001822
Unavailable
14
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
15
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
16
Open Barrel
710000508
Unavailable
17
Protector Cap | STD Models
710001829
Unavailable
18
Open Barrel | STD Models
710000518
Unavailable
19
Protector Cap | STD
710001817
Unavailable
20
Not Available As Spare Parts
XXX
Unavailable
21
Not Available As Spare Parts
XXX
Unavailable
22
Not Available As Spare Parts
XXX
Unavailable
23
Not Available As Spare Parts
XXX
Unavailable
24
Not Available As Spare Parts
XXX
Unavailable
25
Not Available As Spare Parts
XXX
Unavailable
26
Not Available As Spare Parts
XXX
Unavailable
27
Not Available As Spare Parts
XXX
Unavailable
28
Not Available As Spare Parts
XXX
Unavailable
29
Not Available As Spare Parts
XXX
Unavailable
30
POSITIVE CABLE - Call your local BRP dealership | Includes 30 to 36
710001819
Unavailable
31
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
32
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
33
Open Barrel
710000508
Unavailable
34
Protector Cap
710000526
Unavailable
35
Open Barrel
710000530
Unavailable
36
Protector Cap | STD
710001817
Unavailable
37
Elastic Stop Nut M6
232561414
Unavailable
38
Not Available As Spare Parts
XXX
Unavailable
39
Not Available As Spare Parts
XXX
Unavailable
40
Not Available As Spare Parts
XXX
Unavailable
41
Not Available As Spare Parts
XXX
Unavailable
42
Not Available As Spare Parts
XXX
Unavailable
43
Not Available As Spare Parts
XXX
Unavailable
44
Not Available As Spare Parts
XXX
Unavailable
45
Not Available As Spare Parts
XXX
Unavailable
46
Not Available As Spare Parts
XXX
Unavailable
47
Not Available As Spare Parts
XXX
Unavailable
48
Not Available As Spare Parts
XXX
Unavailable
49
Not Available As Spare Parts
XXX
Unavailable
50
Not Available As Spare Parts
XXX
Unavailable
51
Not Available As Spare Parts
XXX
Unavailable
52
Not Available As Spare Parts
XXX
Unavailable
53
Not Available As Spare Parts
XXX
Unavailable
54
Not Available As Spare Parts
XXX
Unavailable
55
Not Available As Spare Parts
XXX
Unavailable
56
Not Available As Spare Parts
XXX
Unavailable
57
Not Available As Spare Parts
XXX
Unavailable
58
External Serrated Lock Washer 6 mm
234461608
Unavailable
59
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
60
Not Available As Spare Parts
XXX
Unavailable
61
SOLENOID SUPPORT - Call your local BRP dealership
710001260
Unavailable
62
Starter Relay
515176011
Unavailable
63
Lock Washer Helical M6
234161601
Unavailable
64
Hex. Nut M6
232061600
Unavailable
65
Hex. Flange Nut M6
233061414
Unavailable
66
Hex. Flange Screw M6 X 12
207661244
Unavailable
67
Not Available As Spare Parts
XXX
Unavailable
68
Not Available As Spare Parts
XXX
Unavailable
69
Not Available As Spare Parts
XXX
Unavailable
70
Not Available As Spare Parts
XXX
Unavailable
71
Not Available As Spare Parts
XXX
Unavailable
72
Not Available As Spare Parts
XXX
Unavailable
73
Not Available As Spare Parts
XXX
Unavailable
74
Not Available As Spare Parts
XXX
Unavailable
75
Not Available As Spare Parts
XXX
Unavailable
76
Not Available As Spare Parts
XXX
Unavailable
77
Not Available As Spare Parts
XXX
Unavailable
78
Not Available As Spare Parts
XXX
Unavailable
79
Not Available As Spare Parts
XXX
Unavailable
80
Not Available As Spare Parts
XXX
Unavailable
81
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
82
Battery Bolt Kit
250000282
Unavailable
83
INSULATOR PAD - Call your local BRP dealership
710000279
Unavailable
84
Retainer Strap
293850097
Unavailable
85
Not Available As Spare Parts
XXX
Unavailable
86
Not Available As Spare Parts
XXX
Unavailable
87
Not Available As Spare Parts
XXX
Unavailable
88
Not Available As Spare Parts
XXX
Unavailable
89
Not Available As Spare Parts
XXX
Unavailable
90
Not Available As Spare Parts
XXX
Unavailable
91
Not Available As Spare Parts
XXX
Unavailable
