- Outlander MAX 650 STD 4 X 4, 2006
07- Front Suspension MAX STD

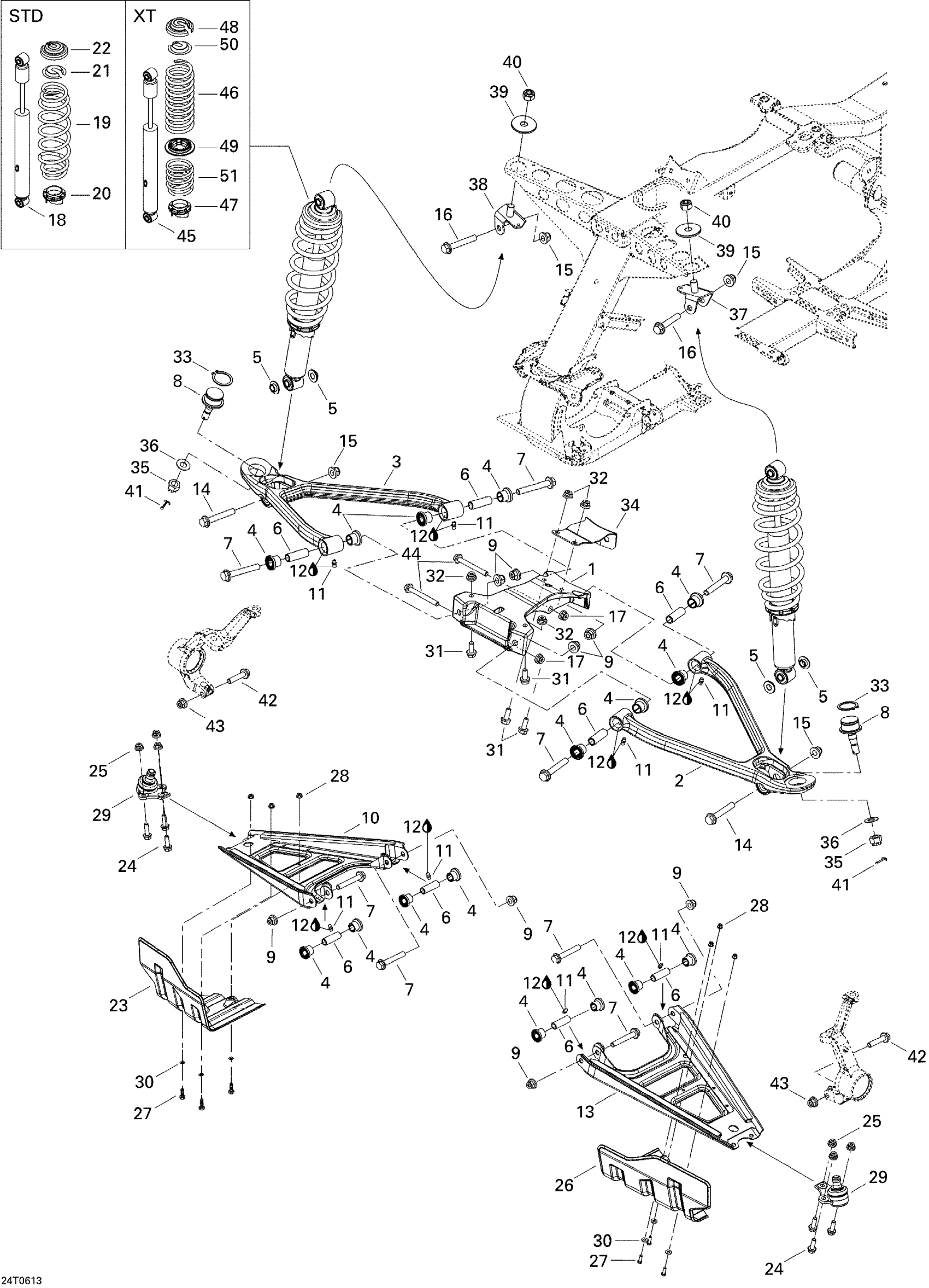

Can-Am Outlander MAX 650 STD 4 X 4, 2006 07- Front Suspension MAX STD Diagram
#
1
Upper Arm Bracket
706201360
Unavailable
2
LH Upper Arm
706200554
Unavailable
3
RH Upper Arm
706200644
Unavailable
4
Bushing
706200181
Unavailable
5
SPACER BUSHING - Call your local BRP dealership
706200677
Unavailable
6
Sleeve
706201587
Unavailable
7
Hex. Flange Screw M10 X 70
207607046
Unavailable
8
Ball Joint
706200653
Unavailable
9
Hex. Flange Elastic Nut M10
233201436
Unavailable
10
Suspension Arm
706205905
Unavailable
11
Grease Fitting
408200700
Unavailable
12
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
293550033
Unavailable
13
Suspension Arm
706205905
Unavailable
14
Hex. Flange Screw M10 X 65
207606536
Unavailable
15
Hex. Flange Elastic Nut M10
233201436
Unavailable
16
Hex. Flange Screw M10 X 55
207605544
Unavailable
17
Hex. Flange Elastic Nut M8
233281414
Unavailable
18
Front Shock | STD
706200408
Unavailable
19
BLACK FRONT SPRING - Call your local BRP dealership | STD
706200486
Unavailable
20
Adjuster Ring
706002356
Unavailable
21
Spring Stopper
706200881
Unavailable
22
Cap
706200785
Unavailable
23
RH PROTECTOR - Call your local BRP dealership | 4X4
706200214
Unavailable
24
Hex. Flange Screw M8 X 25
207682544
Unavailable
25
Hex. Flange Elastic Nut M8
233281414
Unavailable
26
LH PROTECTOR - Call your local BRP dealership | 4X4
706200213
Unavailable
27
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
28
Hex. Flange Elastic Nut M5
233251414
Unavailable
29
Joint Attachment
706200444
Unavailable
30
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
31
Hex. Flange Screw M8 X 20
207682044
Unavailable
32
Hex. Flange Elastic Nut M8
233281414
Unavailable
33
Circlip 32 mm
293370009
Unavailable
34
UPPER ARM BRACKET - Call your local BRP dealership
706200405
Unavailable
35
Nut M12
250100099
Unavailable
36
Hardened Washer
706200281
Unavailable
37
LH Upper Bracket
706200440
Unavailable
38
R.H. BRACKET - Call your local BRP dealership
706201036
Unavailable
39
SPACER - Call your local BRP dealership
706200490
Unavailable
40
Elastic Stop Nut M12
232521416
Unavailable
41
Cotter Pin
211400017
Unavailable
42
HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership
207604544
Unavailable
43
Hex. Flange Elastic Nut M10
233201414
Unavailable
44
Hex. Flange Screw M8 X 70
207687044
Unavailable
45
Not Available As Spare Parts
XXX
Unavailable
46
Not Available As Spare Parts
XXX
Unavailable
47
Not Available As Spare Parts
XXX
Unavailable
48
Not Available As Spare Parts
XXX
Unavailable
49
Not Available As Spare Parts
XXX
Unavailable
50
Not Available As Spare Parts
XXX
Unavailable
51
Not Available As Spare Parts
XXX
Unavailable
