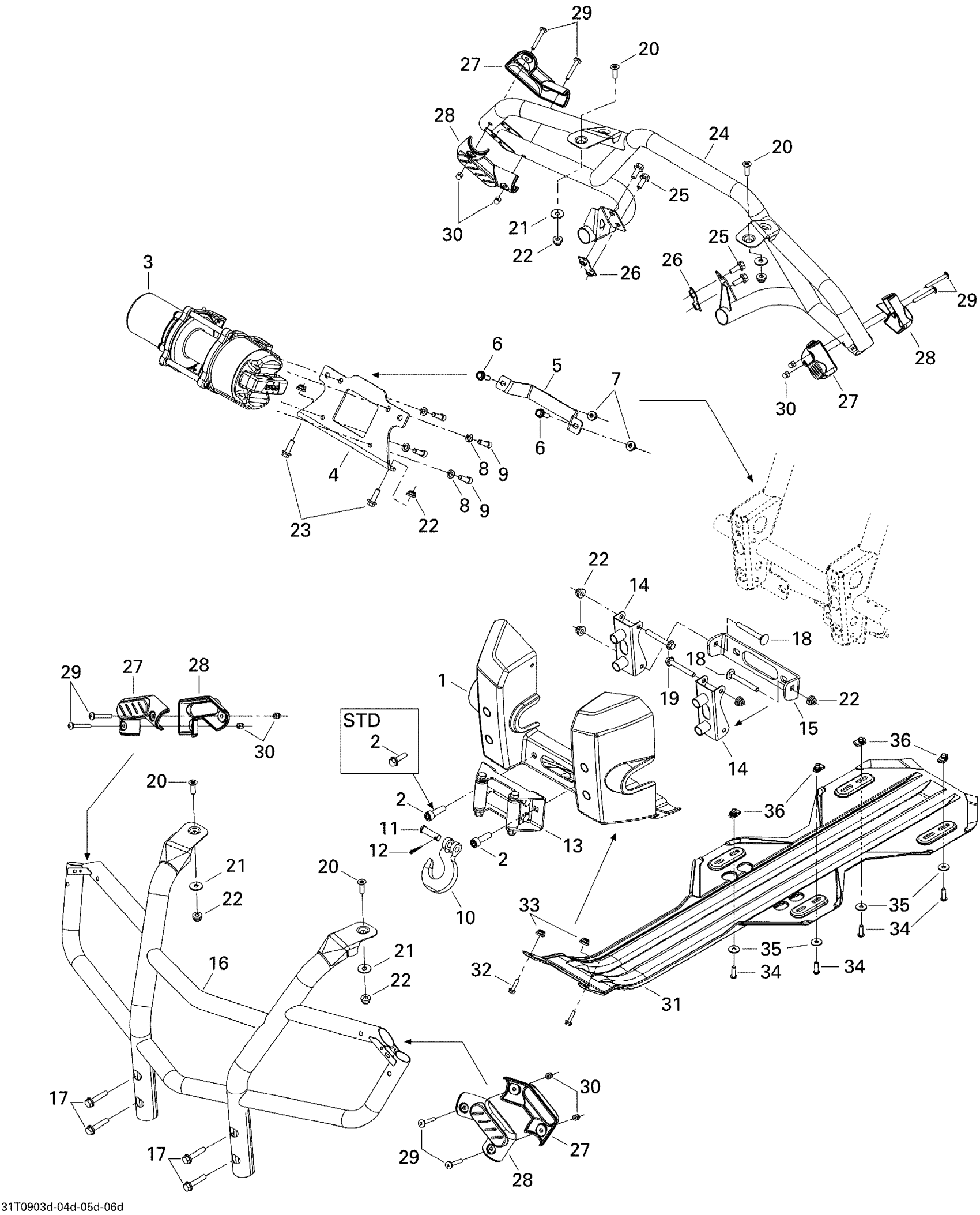

Can-Am Outlander Max 650 EFI XT, 2009 Body And Accessories 4, XT Diagram

#

Description
Price

1

GUARD PLATE - Call your local BRP dealership

705003496

Unavailable

2

Socket Screw M10 X 35

205003544

$1.39

3

WINCH - Call your local BRP dealership

705002505

Unavailable

3

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

4

BLACK MOUNTING PLATE - Call your local BRP dealership | XT

705004278

Unavailable

5

BLACK WINCH BRACKET - Call your local BRP dealership | XT

705001460

Unavailable

6

Hex. Flange Screw M8 X 25

207682544

$0.90

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Lock Washer 8 mm

234181401

$0.89

9

Socket Head Screw M8 X 20

205082044

$1.09

10

Winch Hook Kit

705014949

$27.66

11

Clevis Pin

250400021

$11.83

12

Cotter Pin

250400022

$8.66

13

Fairlead_Roller Kit

715007699

$78.43

14

BUMBER ANCHORING - Call your local BRP dealership

705003006

Unavailable

15

renfort de pare-chocs - Call your local BRP dealership

705001073

Unavailable

16

FRONT BUMPER - Call your local BRP dealership | XT

705002677

Unavailable

17

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.07

18

Carriage Bolt M8 X 70

207787044

$1.11

19

Hex. Flange Screw M8 x 60

207686044

$2.56

20

TORX SCREW M8 X 25 - Call your local BRP dealership

235482584

Unavailable

21

Flat Washer 8 mm

234082410

$1.11

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

Hex. Flange Screw M8 X 25

207682544

$0.90

24

REAR BUMPER - Call your local BRP dealership

705003220

Unavailable

25

Hex Screw Washer Head M8 X 20

207582054

$2.61

26

ATTACHMENT PLATE - Call your local BRP dealership

705001075

Unavailable

27

MALE CAP - Call your local BRP dealership

705001042

Unavailable

28

FEMALE CAP - Call your local BRP dealership

705001043

Unavailable

29

Torx Screw M6 X 45

250000215

$1.56

30

Domed Nut M6

232361493

$1.77

31

PLATE_SKID CTRL. KIT - Call your local BRP dealership

715000688

Unavailable

32

Hex. Flange Screw M6 X 25

207662544

$0.53

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

34

Torx Screw M8 X 25, Scotch Grip

250000283

$1.91

35

Flat Washer 8 mm

234082410

$1.11

36

Panel Nut M8

250100111

$3.38
