09- Body And Accessories 1, XT

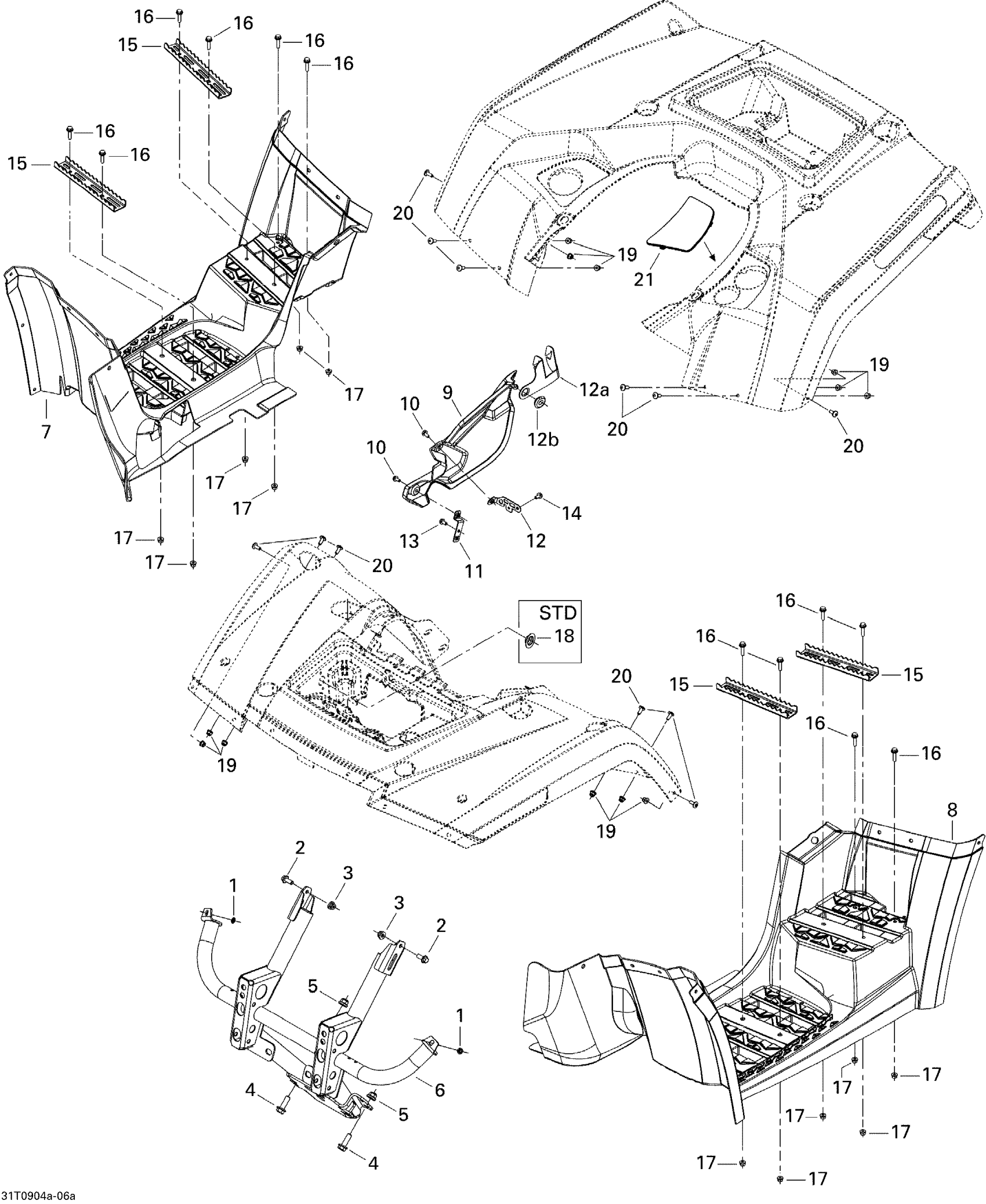

Can-Am Outlander Max 650 EFI XT, 2009 09- Body And Accessories 1, XT Diagram
#
Description
Price
1
Push Nut
732610072
Unavailable
2
Hex. Flange Screw M8 X 20
207682044
Unavailable
3
Hex. Flange Elastic Nut M8
233281414
Unavailable
4
Hex. Flange Screw M10 X 30
207603044
Unavailable
5
Hex. Flange Elastic Nut M10
233201414
Unavailable
6
Front Bumper
705003196
Unavailable
7
RH Footboard
705002487
Unavailable
8
LH Footboard
705003633
Unavailable
9
ENGINE COVER - Call your local BRP dealership
705003839
Unavailable
10
Hex. Flange Screw M6 X 12
210261250
Unavailable
11
Engine Cover Support
705003646
Unavailable
12
Engine Cover Support
705011461
Unavailable
12a
ENGINE COVER SUPPORT - Call your local BRP dealership
705002121
Unavailable
12b
Oval Washer
705005156
Unavailable
13
Hex. Flange Screw M6 X 12
210261250
Unavailable
14
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
15
Footrest
705003648
Unavailable
16
Hex. Flange Screw M6 X 25
207662554
Unavailable
17
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
18
Not Available As Spare Parts
XXX
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
20
Torx Screw M6 X 16
250000755
Unavailable
21
LH Rear Body Panel Cap
705017923
Unavailable
