- Outlander MAX 650 EFI, 2015
11- T3 Parts _99T1515

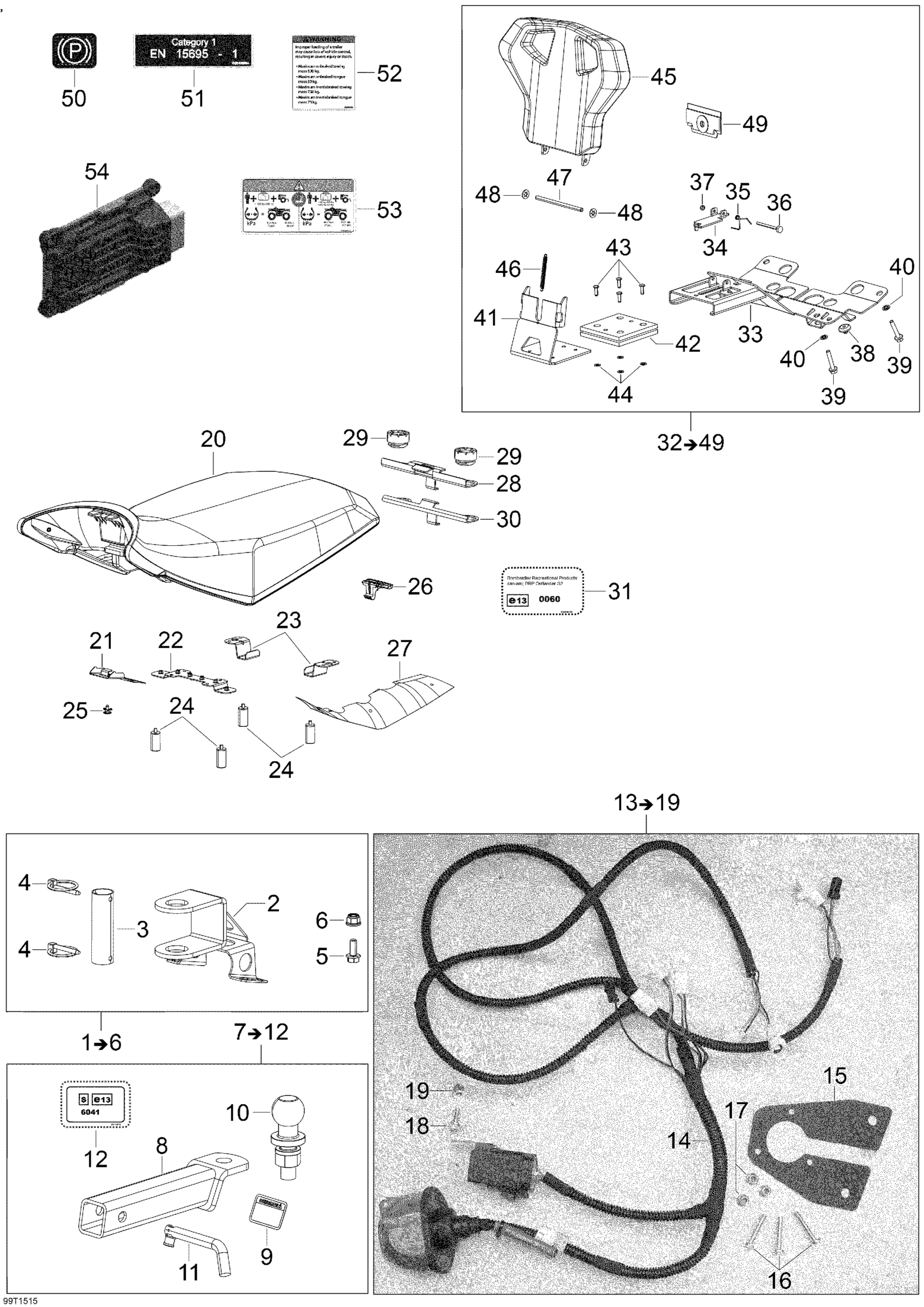

Can-Am Outlander MAX 650 EFI, 2015 11- T3 Parts _99T1515 Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Front Coupling Device
705205025
Unavailable
3
Pin
605456511
Unavailable
4
Pin
605456518
Unavailable
5
Hex. Flange Screw M8 X 20
207682044
Unavailable
6
Hex. Flange Elastic Nut M8
233281414
Unavailable
7
Coupling Ball Ass'y | Includes 7 To 12
605256548
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Hitch Pin
705204490
Unavailable
12
Hitch Decal
605456545
Unavailable
13
Trailer Plug Ass'y | Includes 13 To 19
860200927
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Plug Support Plate
605356523
Unavailable
16
Socket Head Screw M5 X 35
205053588
Unavailable
17
Hex. Flange Elastic Nut M5
233251414
Unavailable
18
Hex. Flange Screw M6 X 16
207661644
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
20
Seat Ass'y | Model-T3
708002208
Unavailable
21
Front Bottom Support | Model-T3
605456520
Unavailable
22
Support Central Cushion
510005986
Unavailable
23
Support Rear Cushion
510005988
Unavailable
24
RUBBER DAMPER - Call your local BRP dealership | Model-T3
605456546
Unavailable
25
Rivet | Model-T3
293150067
Unavailable
26
Latch
708000909
Unavailable
27
HEAT SHIELD - Call your local BRP dealership
705005761
Unavailable
28
Support Rear Seat
705204621
Unavailable
29
Bumper Rubber
708000760
Unavailable
30
Seat Rear Raiser
705204655
Unavailable
31
Decal
605456593
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
33
Passenger Seat Bracket
708001850
Unavailable
34
Backrest Lever Plate
605456510
Unavailable
35
Spring
605456536
Unavailable
36
Screw M4x50 DIN 933 8.8 Zn(1=50pcs)
40203
Unavailable
37
Locknut M4 DIN985 m8 Zne(1=10pcs)
33008
Unavailable
38
Plug
605452114
Unavailable
39
HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership
207663534
Unavailable
40
Push Nut
732610072
Unavailable
41
Backrest Hinge Plate
605456503
Unavailable
42
Slider Plate
605456533
Unavailable
43
Rivet
36005
Unavailable
44
Flat Washer M5
234051410
Unavailable
45
Backrest | Model-T3
708001794
Unavailable
46
Spring
605456539
Unavailable
47
Pin
605456662
Unavailable
48
Safety Washer
36084
Unavailable
49
Backrest Pad
605356612
Unavailable
50
P-Decal, T3 | Package-XTT3
605356244
Unavailable
51
Cabin Decal, T3 | Package-XTT3
605456594
Unavailable
52
Warning Decal
605356505
Unavailable
53
Warning Decal, Tire Pressure
704905992
Unavailable
54
ECM, ENGINE CONTROL MODULE - Call your local BRP dealership | Model T3
420264613
Unavailable
