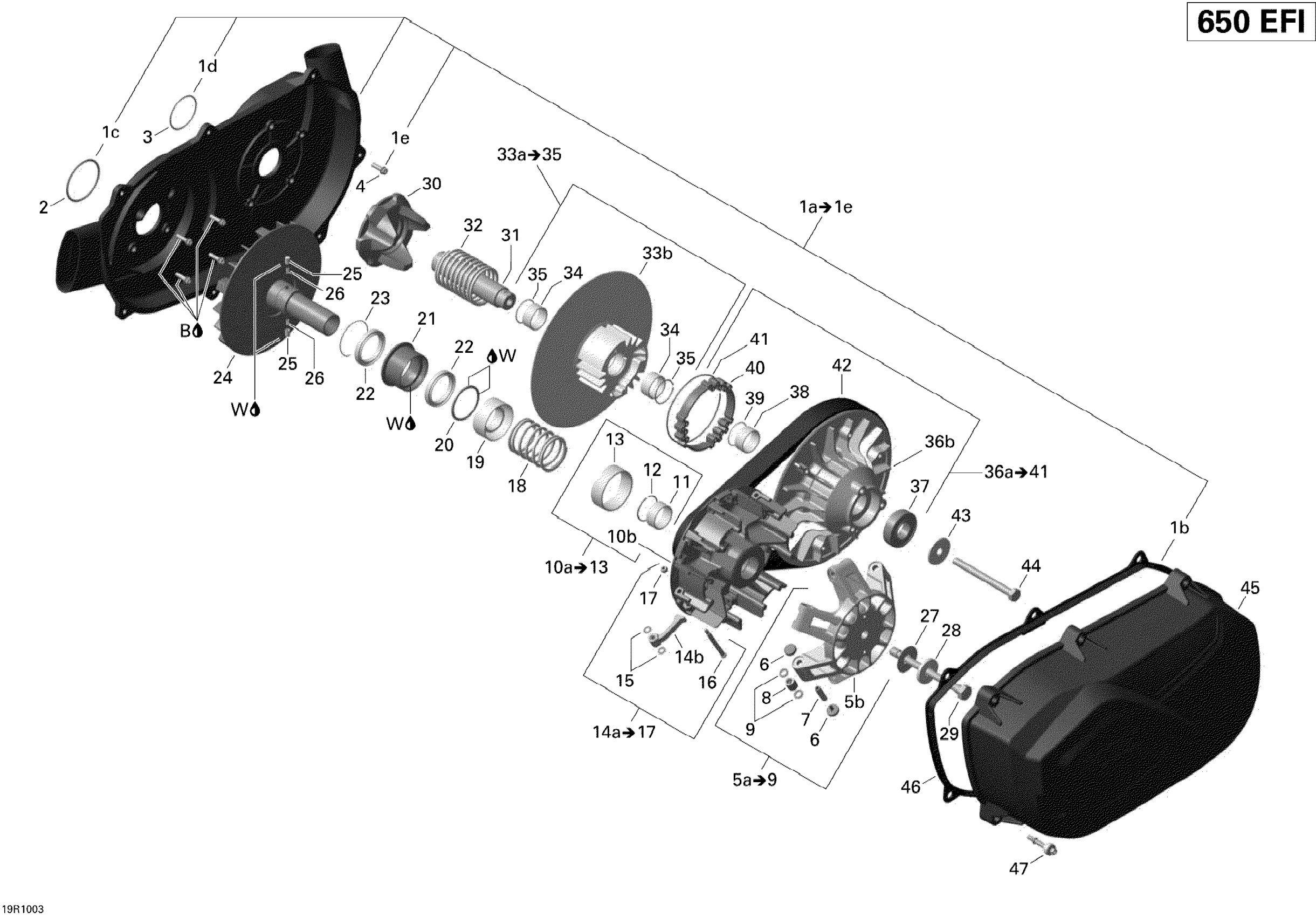

Can-Am Outlander Max 650 EFI, 2010 Transmission Diagram

#

Description
Price

1a

CVT Air Guide Kit

420611407

$117.88

1b

Gasket

420430126

$38.78

1c

O-Ring

420430408

$4.87

1d

O-Ring

420631089

$4.87

1e

Hex.Screw M6 X 20

420441311

$4.24

2

O-Ring

420430408

$4.87

3

O-Ring

420631089

$4.87

4

Hex.Screw M6 X 20

420441311

$4.24

5a

Governor Cup Ass'y | Includes 6 to 9

420280522

$241.76

5b

Not Available As Spare Part - Friction Washer

Unavailable

6

Slider Shoe Set

420281296

$41.01

7

Roller Axle

417223257

$6.37

8

Roller

417223767

$7.15

9

Roller

417223767

$7.15

10a

Outer Haft

420280467

$188.03

10b

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14a

Centrifugal Lever Set | Includes 14a to 17

420248558

$180.57

14b

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Compression Spring, Drive Pulley

420238610

$22.07

19

Seat Spring

420627578

$28.57

20

Friction Washer

420460430

$10.78

21

Drive Pulley Clutch

420257195

$110.42

22

Ball Bearing

420632377

$40.27

23

Retaining Ring

420245951

$4.72

24

Inner Half

420280374

$170.12

25

Spring Sleeve

420229577

$14.92

26

Spring

420239134

$2.52

27

Thrust Washer

420627920

$6.93

28

Spring Washer

420627768

$18.63

29

Hex. Screw M12 X 140

420641859

$23.10

30

Driven Pulley Cam

420280199

$88.78

31

Driven Pulley Shaft

420220914

$115.64

32

Compression Spring

420238176

$32.06

33a

Inner Half Ass'y | Includes 33 to 35

420248233

$308.99

33b

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36a

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.76

36b

Not Available As Spare Part - Friction Washer

Unavailable

37

Ball Bearing

420932421

$26.09

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Torque Gear

420660124

$21.61

41

Retaining Ring

420245911

$5.31

42

V-Belt

422280366

$167.13

43

Thrust Washer

420627594

$11.81

44

Hex. Screw M10 X 110

420441485

$11.37

45

Variator Cover

420611397

$196.99

46

Gasket

420430126

$38.78

47

Allen Screw M6 x 30,5

420440561

$3.67

B

Loctite 243, 10 ml

293800060

$20.77

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72
