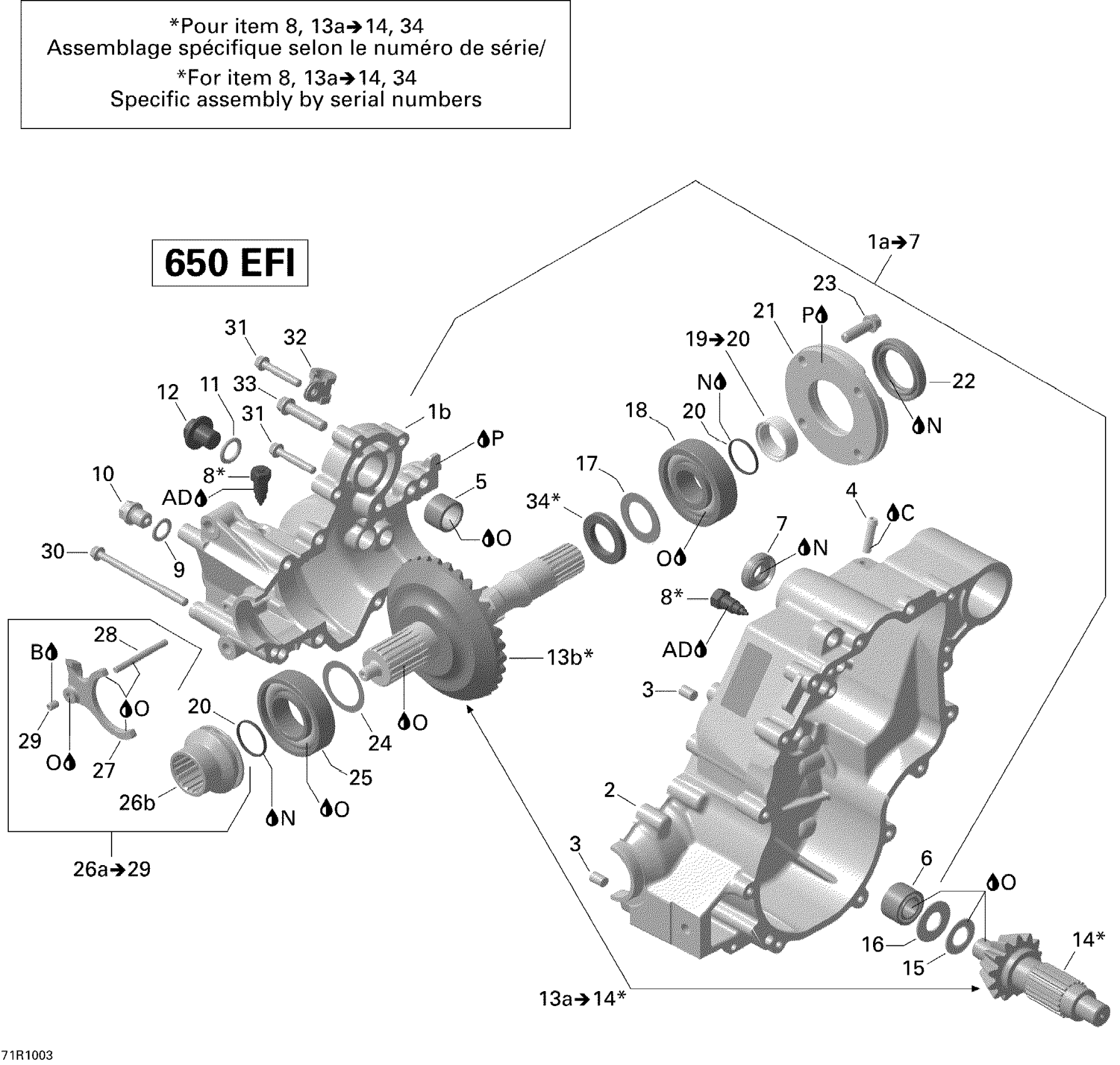

Can-Am Outlander Max 650 EFI, 2010 Gear Box Output Shaft Diagram

#

Description
Price

1a

Gear Housing Ass'y | Includes 1a to 7

420686205

$831.31

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Center Pin 8 X 12

420632010

$3.07

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Needle Bushing

420832240

$19.37

6

Needle Bushing

420232085

$35.04

7

Oil Seal

420250450

$15.64

8

Position Switch

420241856

$34.30

8

3 Position Switch

420640192

$36.54

9

Copper Washer

420250640

$0.81

10

Magnetic Drain Plug M12

420241787

$16.39

11

O-Ring

420650350

$8.81

12

Plug Screw M14 X 1.5

420241662

$13.51

13a

Drive Ass'y | Includes 13a to 14

420635551

Unavailable

13a

Drive Ass'y | Includes 13a to 14

420635557

$408.18

13b

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Axial Needle Bearing

420632300

$17.13

16

Thrust Washer Set, MAG Side

420281306

$56.69

17

Washer Thrust Set

420281300

$88.78

18

Ball Bearing

420932822

$28.33

19

Distance Ring

420247114

Unavailable

20

O-Ring

420631612

$3.52

21

Bearing Cover

420611444

$35.04

22

Oil Seal

420950089

$17.88

23

Torx Flange Screw M8 X 25

420440372

$3.88

24

Shim 0.5

420944584

$3.88

25

Ball Bearing

420932580

$8.82

26a

Shifting Sleeve Kit | Includes 26a to 29

420257676

Unavailable

26b

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

Unavailable

30

Torx Flange Screw M6 X 85

420641228

$6.11

31

Torx Flange Screw M6 X 35

420641258

$2.78

32

CABLE CLAMP - Call your local BRP dealership

420251690

Unavailable

33

Torx Flange Screw M8 X 35

420641188

$6.11

34

Distance Ring

420247772

$19.37

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

$35.72

N

Grease, Super Lube

293550030

$24.67

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99

AD

Not Available As Spare Part - Friction Washer

Unavailable
