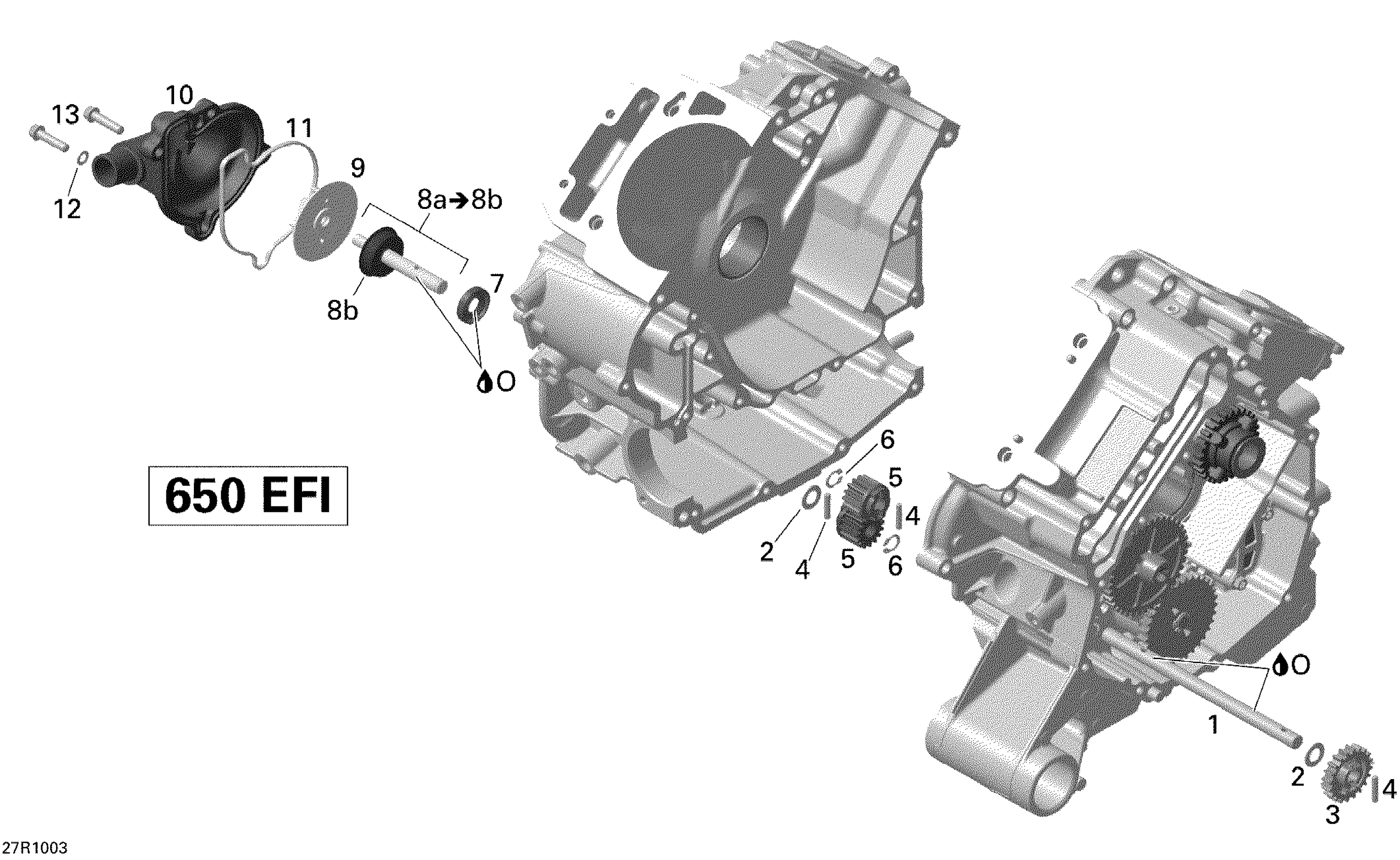

Can-Am Outlander Max 650 EFI, 2010 Engine Cooling Diagram

#

Description

Price

1

Intermediate Shaft

420620500

$34.30

2

Thrust Washer

420827590

$3.75

3

Water Pump Gear

420434330

$10.76

4

Needle Pin

420232420

$3.75

5

Pump Gear, 15 Teeth

420234627

$10.76

6

Snap Ring

420245330

$1.43

7

Oil Seal

420650315

$9.62

8a

Water Pump Shaft Ass'y | Includes 8a to 8b

420620175

$67.88

8b

Rotary Seal

420650371

$35.72

9

Water Impeller

420222505

$14.92

10

Kit Water Pump Housing

703501124

$48.48

11

Gasket

420651190

$8.09

12

Seal Washer

420230415

$1.72

13

Torx Flange Screw M6 X 25

420641238

$2.68

O

Not Available As Spare Part - Friction Washer

Unavailable
