01- Crankcase

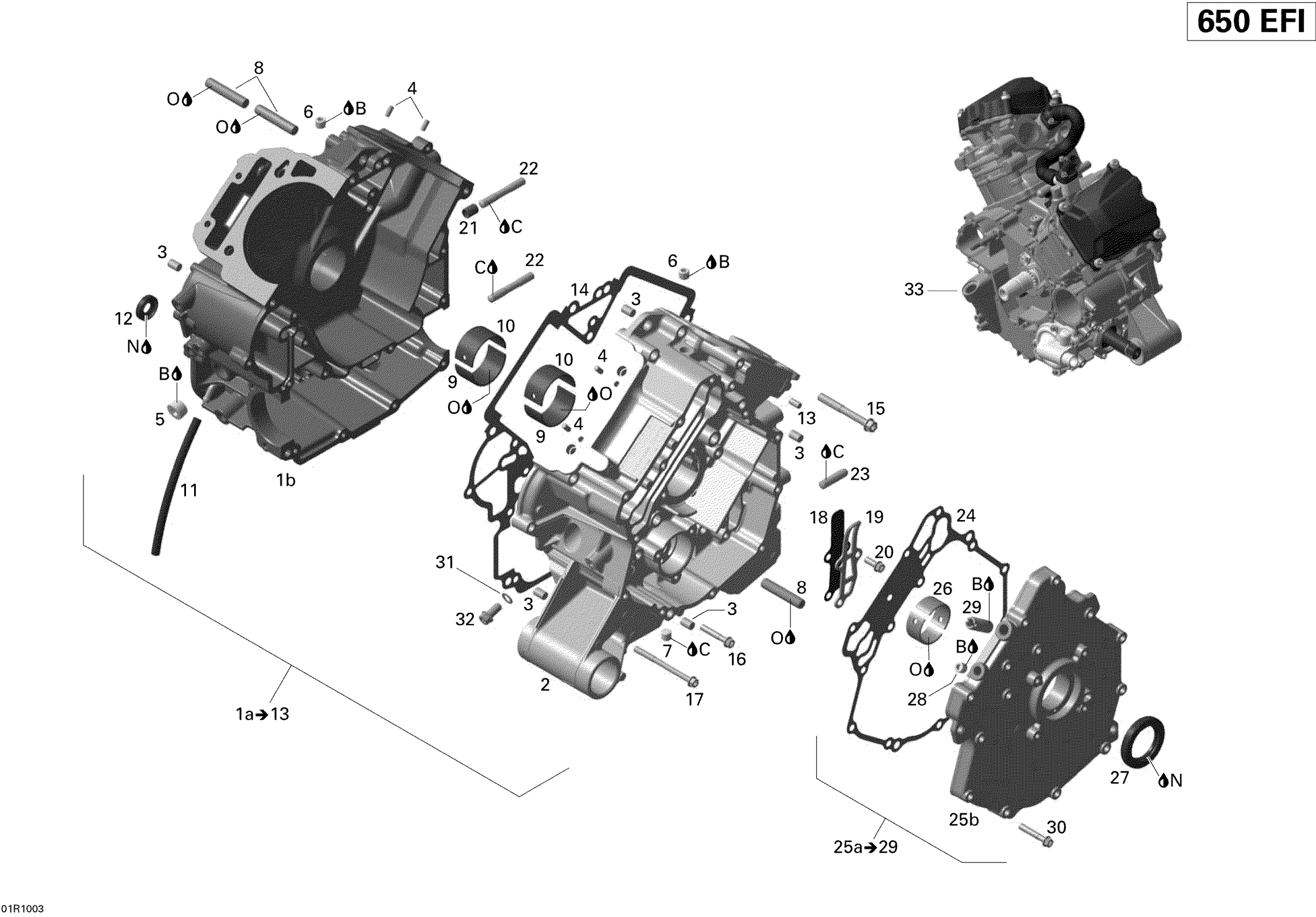

Can-Am Outlander Max 650 EFI, 2010 01- Crankcase Diagram
#
1a
Crankcase Ass'y | Includes 1a to 14
420685317
Unavailable
1b
Not Available As Spare Part - Friction Washer
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Center Pin 8 X 12
420632010
Unavailable
4
Drive Pin 5 X 10
420929650
Unavailable
5
Plug Screw M18 X 1.5 - Call your local BRP dealership
420240170
Unavailable
6
Plug Screw M10 X 1
420641323
Unavailable
7
Plug Screw M12 X 1.5
420840657
Unavailable
8
Location Pin 10 M6x50
420229302
Unavailable
9
Plain Bearing
420233960
Unavailable
10
Plain Bearing
420233965
Unavailable
11
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
12
Oil Seal
420650315
Unavailable
13
Needle Pin
420932780
Unavailable
14
Gasket
420651220
Unavailable
15
Torx Flange Screw M8 X 65
420440402
Unavailable
16
Torx Flange Screw M6 X 35
420641258
Unavailable
17
Torx Flange Screw M6 X 75
420440657
Unavailable
18
Reed Valve
420224721
Unavailable
19
Reed Valve Stop
420224725
Unavailable
20
Torx Flange Screw M6 X 16
420641048
Unavailable
21
Dowel Pin 10 X 13
420929670
Unavailable
22
Stud
420240816
Unavailable
23
Stud
420840718
Unavailable
24
Gasket
420651211
Unavailable
25a
PTO Cover Ass'y | Includes 25a to 29
420612335
Unavailable
25b
Not Available As Spare Part - Friction Washer
Unavailable
26
Bearing Sleeve
420233995
Unavailable
27
Oil Seal
420631933
Unavailable
28
Plug Screw M10 X 1
420641323
Unavailable
29
Hose Nipple
420256332
Unavailable
30
Torx Flange Screw M6 X 35
420641258
Unavailable
31
Sealing Ring
420950141
Unavailable
32
Torx Flange Screw M8 X 16
420440852
Unavailable
33
LONG BLOCK, 650EFI - Call your local BRP dealership
420066037
Unavailable
B
Loctite 243, 10 ml
293800060
Unavailable
C
Sealant Loctite 648
219703000
Unavailable
N
Grease, Super Lube
293550030
Unavailable
O
Not Available As Spare Part - Friction Washer
Unavailable
