05- Transmission

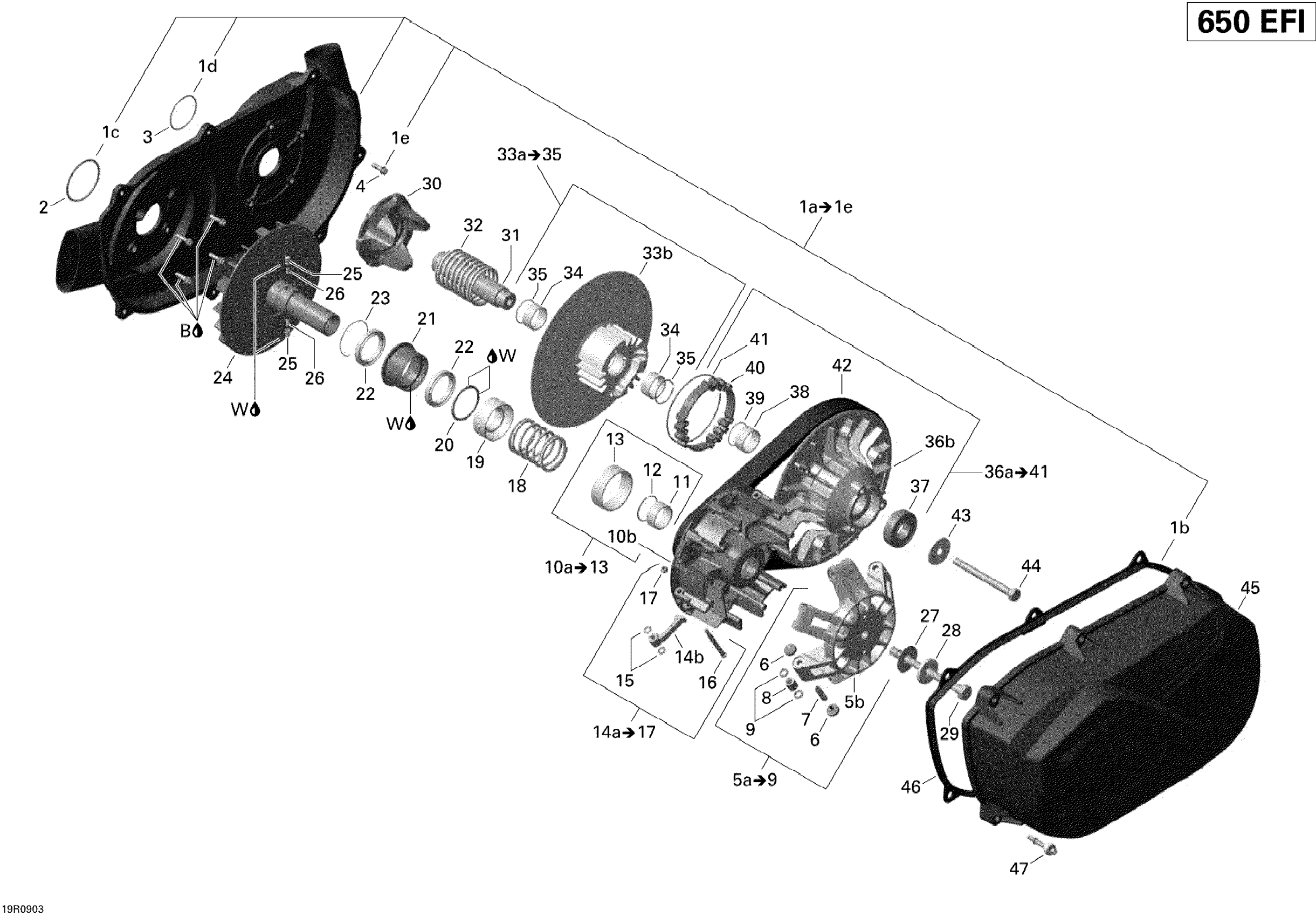

Can-Am Outlander Max 650 EFI, 2009 05- Transmission Diagram
#
1a
CVT Air Guide Kit
420611407
Unavailable
1b
Gasket
420430126
Unavailable
1c
O-Ring
420430408
Unavailable
1d
O-Ring
420631089
Unavailable
1e
Hex.Screw M6 X 20
420441311
Unavailable
2
O-Ring
420430408
Unavailable
3
O-Ring
420631089
Unavailable
4
Hex.Screw M6 X 20
420441311
Unavailable
5a
Governor Cup Ass'y | Includes 6 to 9
420280522
Unavailable
5b
Not Available As Spare Part - Friction Washer
Unavailable
6
Slider Shoe Set
420281296
Unavailable
7
Roller Axle
417223257
Unavailable
8
Roller
417223767
Unavailable
9
Roller
417223767
Unavailable
10a
Outer Haft
420280467
Unavailable
10b
Not Available As Spare Part - Friction Washer
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14a
Centrifugal Lever Set | Includes 14a to 17
420248558
Unavailable
14b
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Compression Spring, Drive Pulley
420238610
Unavailable
19
Seat Spring
420627578
Unavailable
20
Friction Washer
420460430
Unavailable
21
Drive Pulley Clutch
420257195
Unavailable
22
Ball Bearing
420632377
Unavailable
23
Retaining Ring
420245951
Unavailable
24
Inner Half
420280374
Unavailable
25
Spring Sleeve
420229577
Unavailable
26
Spring
420239134
Unavailable
27
Thrust Washer
420627920
Unavailable
28
Spring Washer
420627768
Unavailable
29
Hex. Screw M12 X 140
420641859
Unavailable
30
Driven Pulley Cam
420280199
Unavailable
31
Driven Pulley Shaft
420220914
Unavailable
32
Compression Spring
420238176
Unavailable
33a
Inner Half Ass'y | Includes 33 to 35
420248233
Unavailable
33b
Not Available As Spare Part - Friction Washer
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
Not Available As Spare Part - Friction Washer
Unavailable
36a
Outer Half Pulley Ass'y | Includes 27 to 32
420280178
Unavailable
36b
Not Available As Spare Part - Friction Washer
Unavailable
37
Ball Bearing
420932421
Unavailable
38
Not Available As Spare Part - Friction Washer
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
40
Torque Gear
420660124
Unavailable
41
Retaining Ring
420245911
Unavailable
42
V-Belt
422280366
Unavailable
43
Thrust Washer
420627590
Unavailable
44
Hex. Screw M10 X 110
420441485
Unavailable
45
Variator Cover
420611397
Unavailable
46
Gasket
420430126
Unavailable
47
Allen Screw M6 x 30,5
420440561
Unavailable
B
Loctite 243, 10 ml
293800060
Unavailable
W
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
