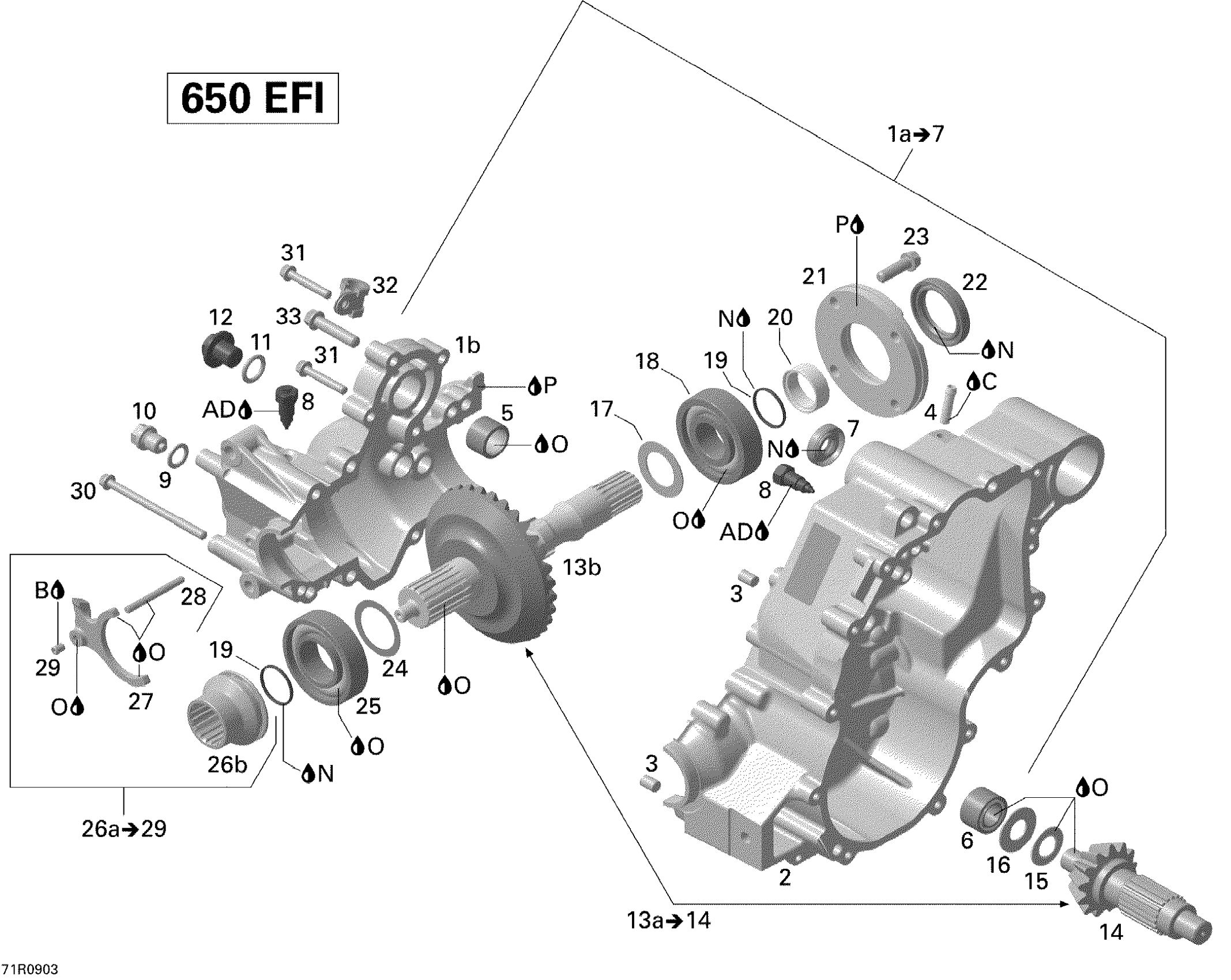

Can-Am Outlander Max 650 EFI, 2009 01- Gear Box Output Shaft Diagram

#

Description
Price

1a

Gear Housing Ass'y | Includes 1a to 7

420686205

Unavailable

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Center Pin 8 X 12

420632010

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Needle Bushing

420832240

Unavailable

6

Needle Bushing

420232085

Unavailable

7

Oil Seal

420250450

Unavailable

8

Position Switch

420241856

Unavailable

9

Copper Washer

420250640

Unavailable

10

Magnetic Drain Plug M12

420241787

Unavailable

11

O-Ring

420650350

Unavailable

12

Plug Screw M14 X 1.5

420241662

Unavailable

13a

Drive Ass'y | Includes 13a to 14

420635551

Unavailable

13b

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Axial Needle Bearing

420632300

Unavailable

16

Thrust Washer Set, MAG Side

420281306

Unavailable

17

Washer Thrust Set

420281300

Unavailable

18

Ball Bearing

420932822

Unavailable

19

O-Ring

420631612

Unavailable

20

Distance Ring

420247114

Unavailable

21

Bearing Cover

420611444

Unavailable

22

Oil Seal

420950089

Unavailable

23

Torx Flange Screw M8 X 25

420440372

Unavailable

24

Shim 0.5

420944584

Unavailable

25

Ball Bearing

420932580

Unavailable

26a

Shifting Sleeve Kit | Includes 26a to 29

420257676

Unavailable

26b

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

Unavailable

30

Torx Flange Screw M6 X 85

420641228

Unavailable

31

Torx Flange Screw M6 X 35

420641258

Unavailable

32

CABLE CLAMP - Call your local BRP dealership

420251690

Unavailable

33

Torx Flange Screw M8 X 35

420641188

Unavailable

B

Loctite 243, 10 ml

293800060

Unavailable

C

Sealant Loctite 648

219703000

Unavailable

N

Grease, Super Lube

293550030

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

Unavailable

AD

Not Available As Spare Part - Friction Washer

Unavailable
