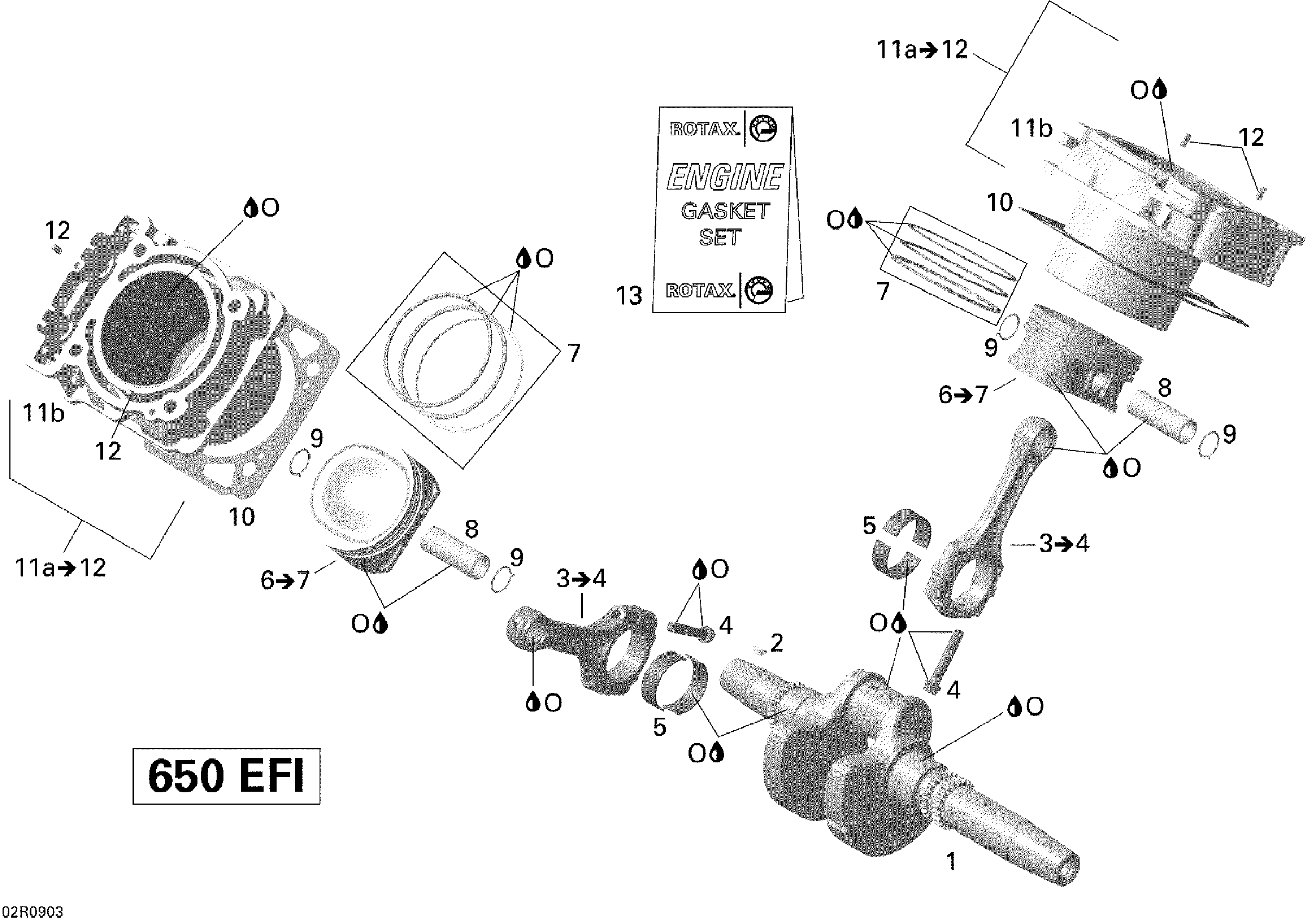

Can-Am Outlander Max 650 EFI, 2009 Crankshaft, Piston And Cylinder Diagram

Crankshaft Ass'y

420219746

$628.49

Woodruff Key 4 X 5

420246570

$3.38

Connecting Rod Ass’y | Includes 3 to 4

420217425

$228.99

Connecting Rod Screw M8 X 1

420641645

$14.28

Plain Bearing 40 X 43 X 15

420233980

$28.49

Piston Ass'y, 82 mm | 330HO / Includes 7 to 8

420685712

$148.99

Piston Ass'y, Oversize, 82.208 mm | Includes 6 to 7

420684111

$148.99

Piston Ring Set | 330HO

420684384

$82.99

Not Available As Spare Part - Friction Washer

Unavailable

Piston Pin

420216270

$25.99

Piston Circlip

420845106

$3.93

Gasket

420630210

$12.71

Cylinder Ass'y | Includes 11a to 12

420613888

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Drive Pin 5 X 10

420929650

$1.68

Gasket Set

420684154

$381.49

Not Available As Spare Part - Friction Washer

Unavailable
