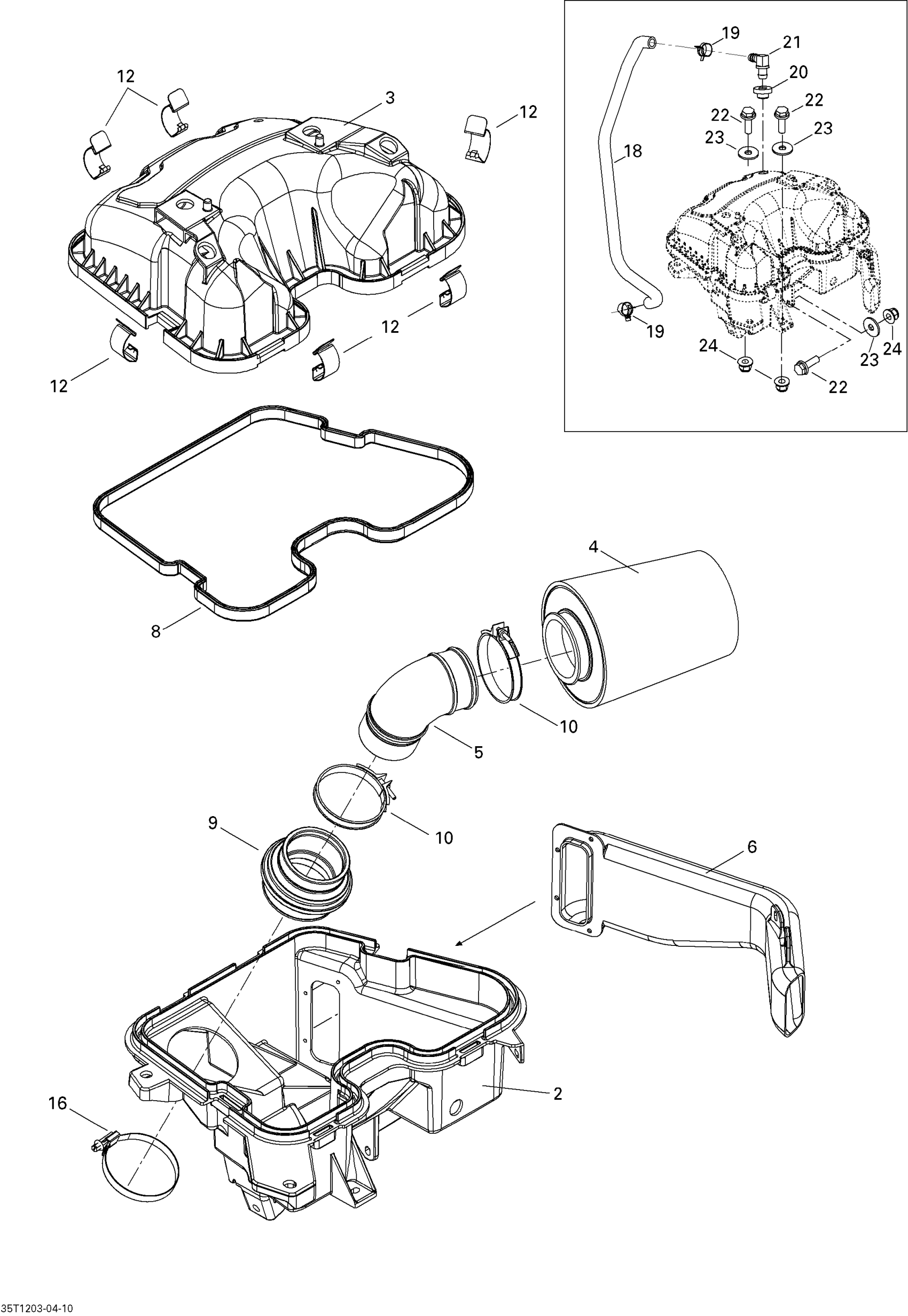

Can-Am Outlander MAX 500EFI STD & XT, 2012 Air Intake Silencer Diagram

#

Description
Price

2

INTAKE SILENCER BASE - Call your local BRP dealership

707800447

Unavailable

3

INTAKE SILENCER COVER - Call your local BRP dealership

707800451

Unavailable

4

Air Filter

707800174

$31.99

5

RIGID ADAPTOR - Call your local BRP dealership

707800270

Unavailable

6

FRONT INTAKE ADAPTOR - Call your local BRP dealership

707800175

Unavailable

8

Oil Seal

707800197

$19.99

9

INTAKE ADAPTOR - Call your local BRP dealership

707800177

Unavailable

10

Clamp

293650175

$13.24

12

COVER BRACKET - Call your local BRP dealership

707800231

Unavailable

16

Norma Clamp

293650091

$11.12

18

VENT HOSE - Call your local BRP dealership

707800428

Unavailable

19

Norma Clamp

293650110

$4.54

20

Grommet | Europe

707800347

$10.49

21

Elbow Fitting

414523600

$4.86

22

Hex. Flange Screw M6 X 20

207662044

$2.00

23

Flat Washer

250200082

$0.42

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
