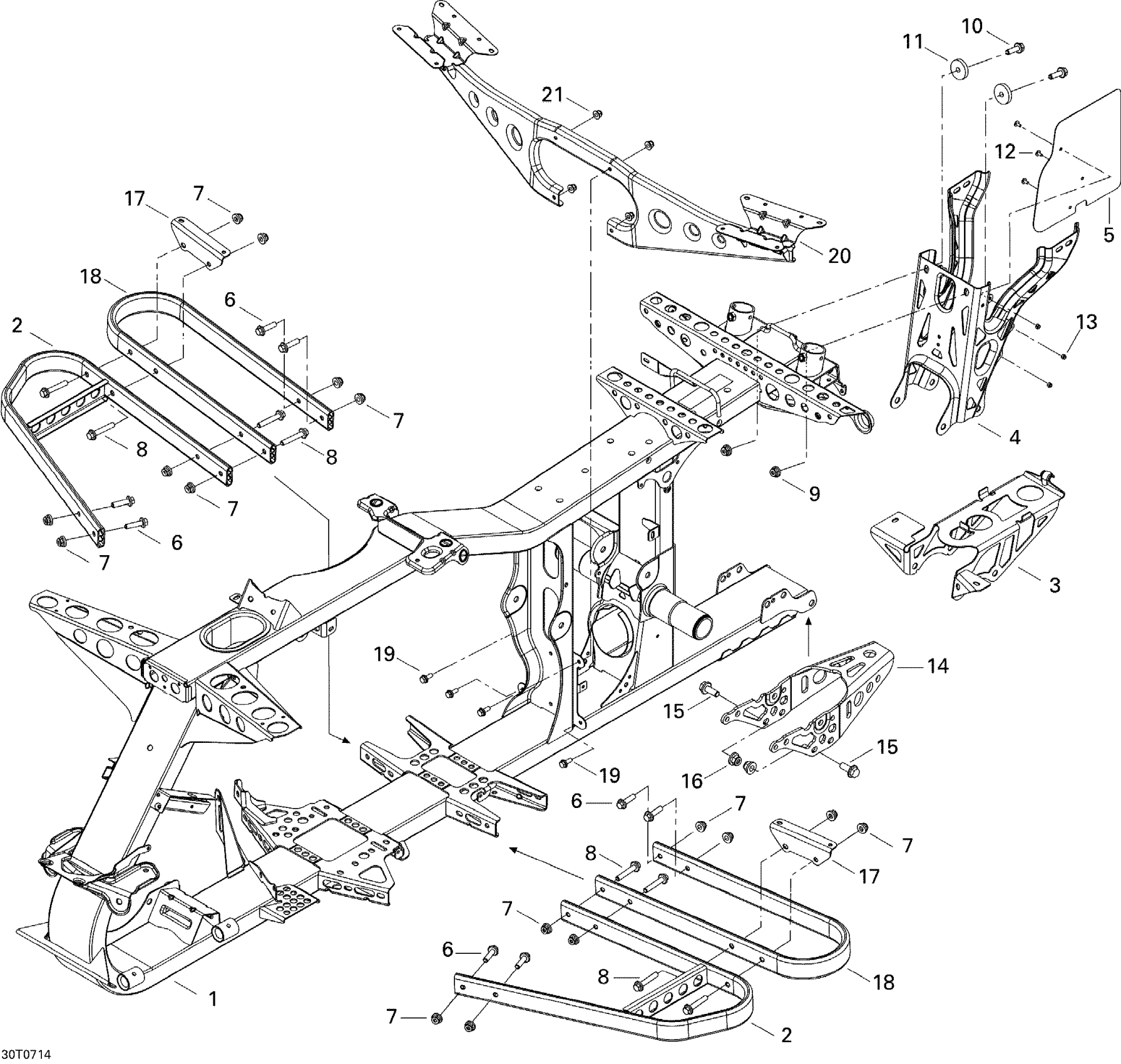

Can-Am Outlander MAX 500 XT 4 X 4, 2007 09- Frame Diagram
#
Description
Price
1
Frame, Black
705201084
Unavailable
2
OOTBOARD ASS'Y - Call your local BRP dealership
705202081
Unavailable
3
Battery Support Base
705201942
Unavailable
4
Rear Support, Black
705203842
Unavailable
5
Heat Shield
705202394
Unavailable
6
Hex. Flange Screw M8 X 30 | DS 650 X
207683044
Unavailable
7
Hex. Flange Elastic Nut M8
233281414
Unavailable
8
Hex. Flange Screw M8 X 45
207684544
Unavailable
9
Hex. Elastic Flange Nut M8
233281416
Unavailable
10
Hex. Flange Screw M8 X 25, Scotch Grip
207582586
Unavailable
11
SPACER - Call your local BRP dealership
705202084
Unavailable
12
Torx Screw M4 X 8
250000127
Unavailable
13
Elastic Stop Nut M4
232541484
Unavailable
14
TRAILER HOOK, BLACK - Call your local BRP dealership
705201112
Unavailable
15
Hex. Flange Screw M10 X 25
207602544
Unavailable
16
Hex. Flange Elastic Nut M10
233201436
Unavailable
17
SUPPORT PLATE, BLACK - Call your local BRP dealership
705202402
Unavailable
18
REAR FOOTREST - Call your local BRP dealership
705201993
Unavailable
19
Hex. Flange Screw M6 X 16
207661644
Unavailable
20
Footrest Support
705210817
Unavailable
21
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
