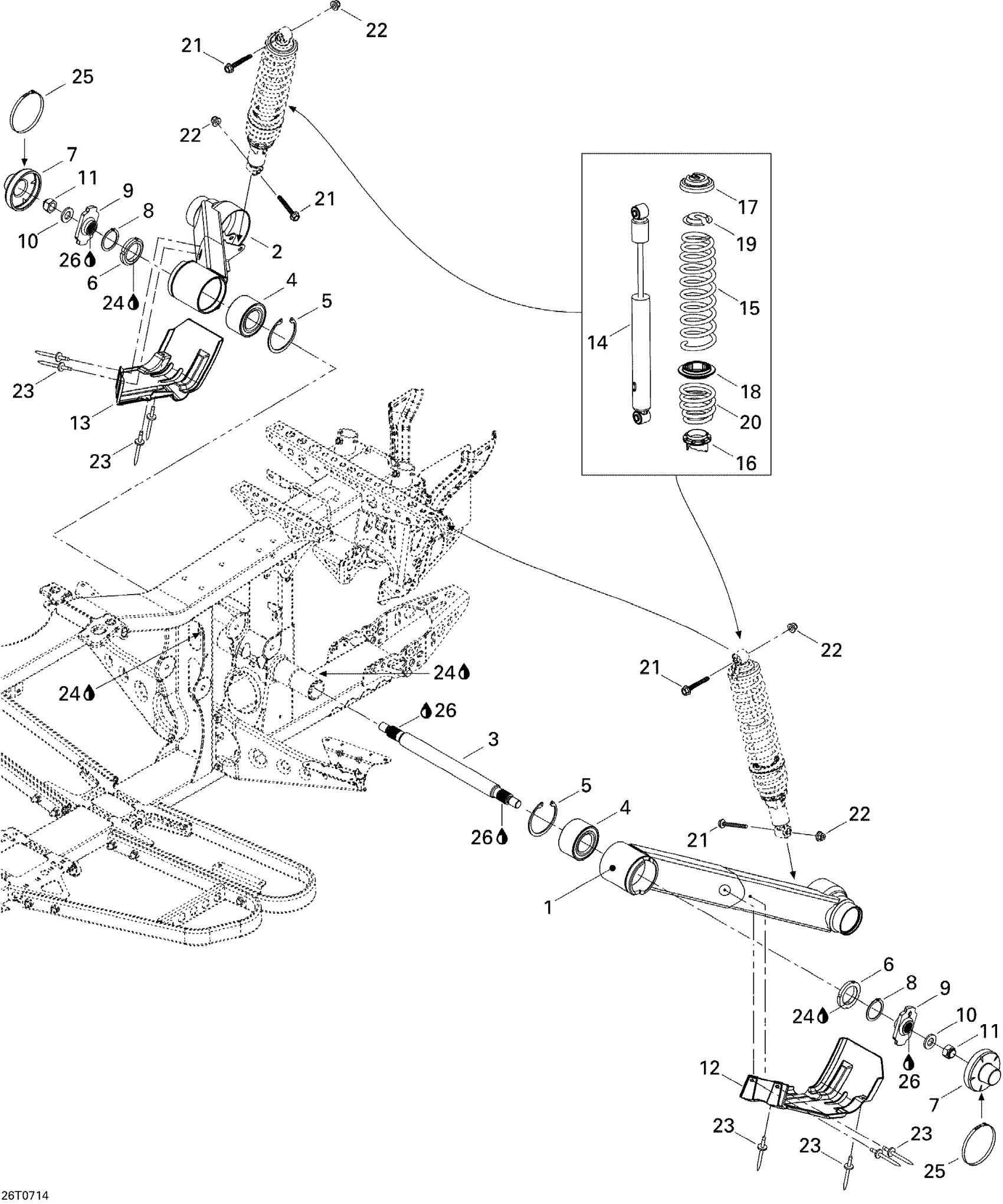

Can-Am Outlander MAX 500 XT 4 X 4, 2007 Rear Suspension Diagram

#

Description
Price

1

LH SWING ARM - Call your local BRP dealership

706001185

Unavailable

2

Rh Swing Arm

706003425

$290.74

3

Sway Bar

706001078

$92.28

4

Ball Bearing

293350037

$128.43

5

Circlip

293370041

$9.98

6

Nut

706000221

$23.05

7

Cover

706000749

$15.35

8

Circlip 45 mm

293370027

$4.98

9

Lever

706000548

$36.89

10

Washer

250200045

$7.37

11

Elastic Stop Nut M18

232591414

$3.48

12

LH PROTECTOR - Call your local BRP dealership

706000333

Unavailable

13

RH PROTECTOR - Call your local BRP dealership

706000334

Unavailable

14

Rear Shock

706000337

Unavailable

15

SPRING - Call your local BRP dealership

706000443

Unavailable

16

Adjuster Ring

706002356

$17.66

17

Spring Stopper

706200881

$10.30

18

SPRING SPACER - Call your local BRP dealership

706000472

Unavailable

19

Cap

706200785

$4.42

20

Spring

706000476

Unavailable

21

Hex. Flange Screw M10 X 55

207605544

$2.78

22

Hex. Flange Elastic Nut M10

233201414

$1.26

23

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

24

Loctite 243, 10 ml

293800060

$20.77

25

Oetiker Clamp

293650162

$8.45

26

Loctite 271, 10 ml

293800005

$20.77
