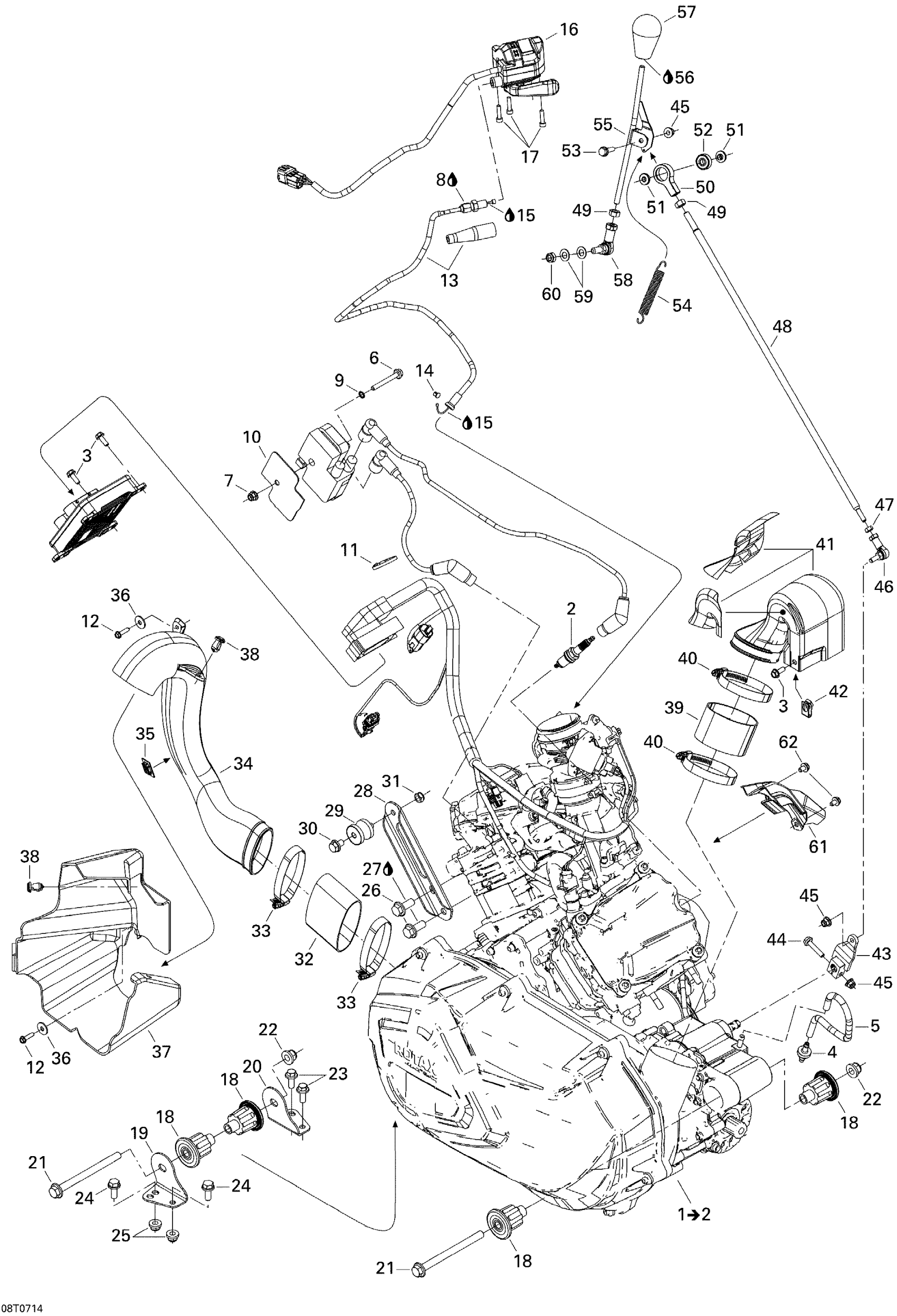

Can-Am Outlander MAX 500 XT 4 X 4, 2007 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Spark Plug, NGK DCP-R8E

715900637

$5.66

3

Hex. Flange Screw M6 X 16

210261650

$1.22

4

Check Valve

275500398

$8.57

5

Hose 6 Mm 15000Mm Long

219704360

$104.62

6

Hex. Flange Screw M6 X 50

207665044

$3.38

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

9

External Serrated Lock Washer 6 mm

234461608

$0.92

10

Insulator Pad

710000073

$10.30

11

Tie-Rap 180 mm

414115200

$0.09

12

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

$1.64

13

Throttle Cable

707000393

$12.34

14

Cable Guide

707000434

$10.21

15

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

16

Throttle Handle | 4X4

707000595

$69.37

17

Socket Head Screw M5 X 25

205052588

$1.56

18

Vibration Damper

707001169

$42.99

19

ENGINE BRACKET - Call your local BRP dealership

707000802

Unavailable

20

ENGINE BRACKET - Call your local BRP dealership

707000803

Unavailable

21

Hex. Flange Screw M10 X 125

230602546

$6.08

22

Hex. Flange Elastic Nut M10

233201436

$1.74

23

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

24

Hex. Flange Screw M8 X 20

207682044

$0.92

25

Hex. Flange Elastic Nut M8

233281414

$1.14

26

Hex. Flange Screw M10 X 25

207602544

$1.33

27

Loctite 243, 10 ml

293800060

$20.77

28

UPPER ENGINE BRACKET, BLACK - Call your local BRP dealership

707000883

Unavailable

29

Rubber Isolator

707000949

$9.00

30

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

31

Hex. Elastic Stop Nut M8

232581414

$0.47

32

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

33

Norma Clamp

293650091

$4.46

34

AIR INLET - Call your local BRP dealership

706600008

Unavailable

35

Tie-rap Mount (square - self-adhsive)

293750040

$3.09

36

Flat Washer

250200082

$0.35

37

WATER DEFLECTOR - Call your local BRP dealership

707000779

Unavailable

38

Tuflok Plastic Rivet

293150230

$1.21

39

Adaptor

707000789

$10.30

40

Norma Gear Clamp

293650118

$9.74

41

AIR OUTLET ASS'Y - Call your local BRP dealership

707000459

Unavailable

42

Panel Nut M6 X 1.0

250100198

$1.73

43

Lever

707000691

$22.36

44

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

46

LH BALL JOINT - Call your local BRP dealership

707000545

Unavailable

47

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

48

THREADED ROD - Call your local BRP dealership

707000579

Unavailable

49

Hex. Nut M8

232081414

$0.60

50

PIVOT - Call your local BRP dealership

707000575

Unavailable

51

BUSHING - Call your local BRP dealership

707000576

Unavailable

52

BALL BEARING - Call your local BRP dealership

293350039

Unavailable

53

Hex. Flange Screw M6 X 25

207662544

$0.53

54

SPRING - Call your local BRP dealership

707000435

Unavailable

55

Lever Arm

707000783

$15.64

56

Loctite 243, 10 ml

293800060

$20.77

57

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

58

RH Ball Joint

707001959

$34.30

59

Washer

506151252

$3.01

60

Hex. Elastic Stop Nut M8

232581414

$0.47

61

Cover OPS

707000410

$12.34

62

Hex. Flange Screw M6 X 12

210261250

$1.56
