- Outlander MAX 500 XT, 2008
09- Body And Accessories 3, XT

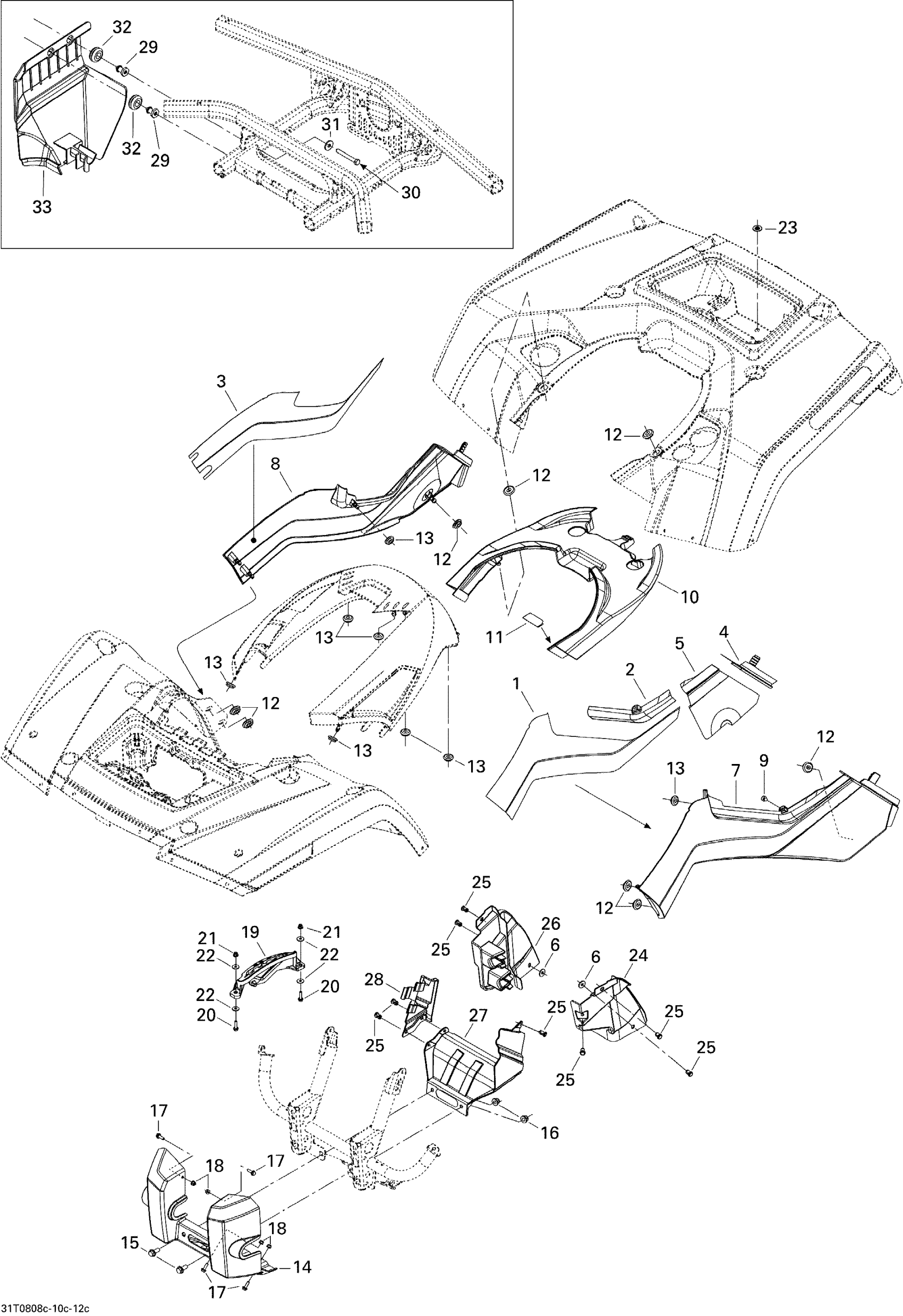

Can-Am Outlander MAX 500 XT, 2008 09- Body And Accessories 3, XT Diagram
#
1
Reflective Sheet
705005620
Unavailable
2
REFLECTIVE SHEET - Call your local BRP dealership
705005617
Unavailable
3
REFLECTIVE SHEET - Call your local BRP dealership
705005623
Unavailable
4
LH REFLECTIVE SHEET - Call your local BRP dealership
705002183
Unavailable
5
REFLECTIVE SHEET - Call your local BRP dealership
705005621
Unavailable
6
Washer
506151252
Unavailable
7
PANEL_BODY LH B-176 - Call your local BRP dealership | Viper Red
705002942
Unavailable
7
PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow
705002940
Unavailable
7
LH LATERAL PANEL, GREEN - Call your local BRP dealership | Laurentian Green
705002941
Unavailable
7
LH Lateral Panel, Camo | Camo
705002475
Unavailable
8
RH LATERAL PANEL, RED - Call your local BRP dealership | Viper Red
705002945
Unavailable
8
RH LATERAL PANEL, YELLOW - Call your local BRP dealership | Yellow
705002943
Unavailable
8
RH LATERAL PANEL, GREEN - Call your local BRP dealership | Laurentian Green
705002118
Unavailable
8
RH LATERAL PANEL, CAMO - Call your local BRP dealership | Camo
705002476
Unavailable
9
Rubber Bumper
293830005
Unavailable
10
RED STORAGE TRAY - Call your local BRP dealership | Viper Red
705002954
Unavailable
10
YELLOW STORAGE TRAY - Call your local BRP dealership | Yellow
705002952
Unavailable
10
STORAGE TRAY, GREEN - Call your local BRP dealership | Laurentian Green
705002953
Unavailable
10
Storage Tray, Camo | Camo
705002477
Unavailable
11
REFLECTIVE SHEET - Call your local BRP dealership
705002185
Unavailable
12
Oval Washer
705005156
Unavailable
13
Grommet
705003264
Unavailable
14
Not Available As Spare Parts
XXX
Unavailable
15
Not Available As Spare Parts
XXX
Unavailable
16
Hex. Flange Elastic Nut M10
233201414
Unavailable
17
Hex. Flange Screw M6 X 20
207662044
Unavailable
18
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
19
Lever Indicator
705003838
Unavailable
20
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
21
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Flat Washer
224061201
Unavailable
23
CAP - Call your local BRP dealership
414859400
Unavailable
24
LH INNER FENDER - Call your local BRP dealership
705003634
Unavailable
25
Tuflok Plastic Rivet
293150230
Unavailable
26
RH INNER FENDER - Call your local BRP dealership
705002124
Unavailable
27
LH DEFLECTOR - Call your local BRP dealership
705002988
Unavailable
28
RH DEFLECTOR - Call your local BRP dealership
705002135
Unavailable
29
Knob
517303439
Unavailable
30
HEX. SCREW K50 X 50 - Call your local BRP dealership
241055030
Unavailable
31
Washer | DS 650 X
391301600
Unavailable
32
Grommet
709000582
Unavailable
33
Thread Cover
705004036
Unavailable
