- Outlander MAX 500 STD 4 X 4, 2007
09- Body And Accessories 1, STD

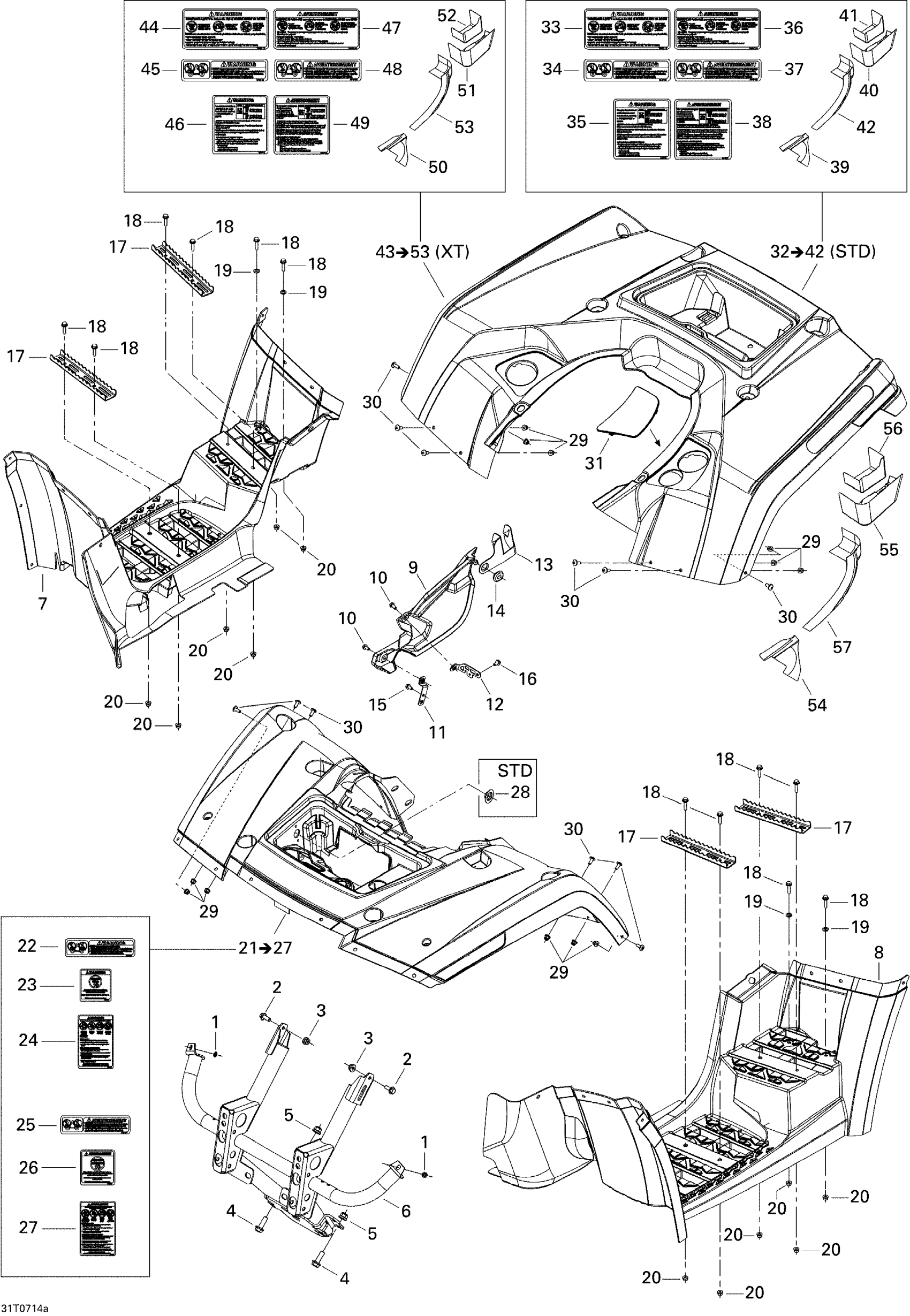

Can-Am Outlander MAX 500 STD 4 X 4, 2007 09- Body And Accessories 1, STD Diagram
#
1
Push Nut
732610072
Unavailable
2
Hex. Flange Screw M8 X 20
207682044
Unavailable
3
Hex. Flange Elastic Nut M8
233281414
Unavailable
4
Hex. Flange Screw M10 X 30
207603044
Unavailable
5
Hex. Flange Elastic Nut M10
233201414
Unavailable
6
Front Bumper
705003196
Unavailable
7
RH Footboard
705002487
Unavailable
8
LH Footboard
705003633
Unavailable
9
REFLECTING SHEET - Call your local BRP dealership
705001452
Unavailable
10
Hex. Flange Screw M6 X 12
210261250
Unavailable
11
Engine Cover Support
705003646
Unavailable
12
Engine Cover Support
705011461
Unavailable
13
ENGINE COVER SUPPORT - Call your local BRP dealership
705002121
Unavailable
14
Oval Washer
705005156
Unavailable
15
Hex. Flange Screw M6 X 12
210261250
Unavailable
16
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
17
Footrest
705003648
Unavailable
18
Hex. Flange Screw M6 X 25
207662554
Unavailable
19
Lock Washer M6, Black
234161471
Unavailable
20
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
21
FRONT FENDER KIT, RED - Call your local BRP dealership | Includes 21 to 27, Viper Red
715000840
Unavailable
21
FRONT FENDER KIT, YELLOW - Call your local BRP dealership | Includes 21 to 27, Yellow
703500589
Unavailable
21
FRONT FENDER KIT, GREEN - Call your local BRP dealership | Includes 21 to 27, Laurentian Green
703500590
Unavailable
22
Warning Decal, Load | English Version
704901089
Unavailable
23
Warning Decal, Under 16 Years Old | English Version
704901753
Unavailable
24
Warning Decal, Death And Injuries | English Version
704901749
Unavailable
25
Warning Decal, Load | French Version
704901090
Unavailable
26
WARNING DECAL, UNDER 16 YEARS OLD - Call your local BRP dealership | French Version
704900436
Unavailable
27
Warning Decall, Death And Injuries | French Version
704900905
Unavailable
28
PLASTIC CAP - Call your local BRP dealership | STD
293000103
Unavailable
29
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
30
Torx Screw M6 X 16
250000755
Unavailable
31
LH Rear Body Panel Cap
705017923
Unavailable
32
REAR FENDER, RED - Call your local BRP dealership | STD, Includes 32 to 42, Viper Red
703500688
Unavailable
32
Front Fender Kit, Yellow | STD, Includes 32 to 42, Yellow
703500689
Unavailable
32
Rear Fender, Green | STD, Includes 32 to 42, Laurentian Green
703500690
Unavailable
33
WARNING DECAL, PASSENGER - Call your local BRP dealership
704901762
Unavailable
34
Warning Decal, Load | English Version
704901089
Unavailable
35
WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership
704902402
Unavailable
36
WARNING DECAL, UNDER 12 YEARS OLD - Call your local BRP dealership | French Version
704901122
Unavailable
37
Warning Decal, Load | French Version
704901090
Unavailable
38
Warning Decal, Tire Pressure | French Version
704902403
Unavailable
39
REFLECTIVE SHEET - Call your local BRP dealership
705002014
Unavailable
40
Reflective Sheet
705002191
Unavailable
41
REFLECTIVE SHEET - Call your local BRP dealership
705002189
Unavailable
42
Reflective Sheet
705002085
Unavailable
43
Not Available As Spare Parts
XXX
Unavailable
44
Not Available As Spare Parts
XXX
Unavailable
45
Not Available As Spare Parts
XXX
Unavailable
46
Not Available As Spare Parts
XXX
Unavailable
47
Not Available As Spare Parts
XXX
Unavailable
48
Not Available As Spare Parts
XXX
Unavailable
49
Not Available As Spare Parts
XXX
Unavailable
50
Not Available As Spare Parts
XXX
Unavailable
51
Not Available As Spare Parts
XXX
Unavailable
52
Not Available As Spare Parts
XXX
Unavailable
53
Not Available As Spare Parts
XXX
Unavailable
54
REFLECTIVE SHEET - Call your local BRP dealership
705002014
Unavailable
55
Reflective Sheet
705002191
Unavailable
56
REFLECTIVE SHEET - Call your local BRP dealership
705002189
Unavailable
57
Reflective Sheet
705002085
Unavailable
