- Outlander Max 500 EFI Ltd, 2010
10- Electrical Accessories 500 EFI, 1

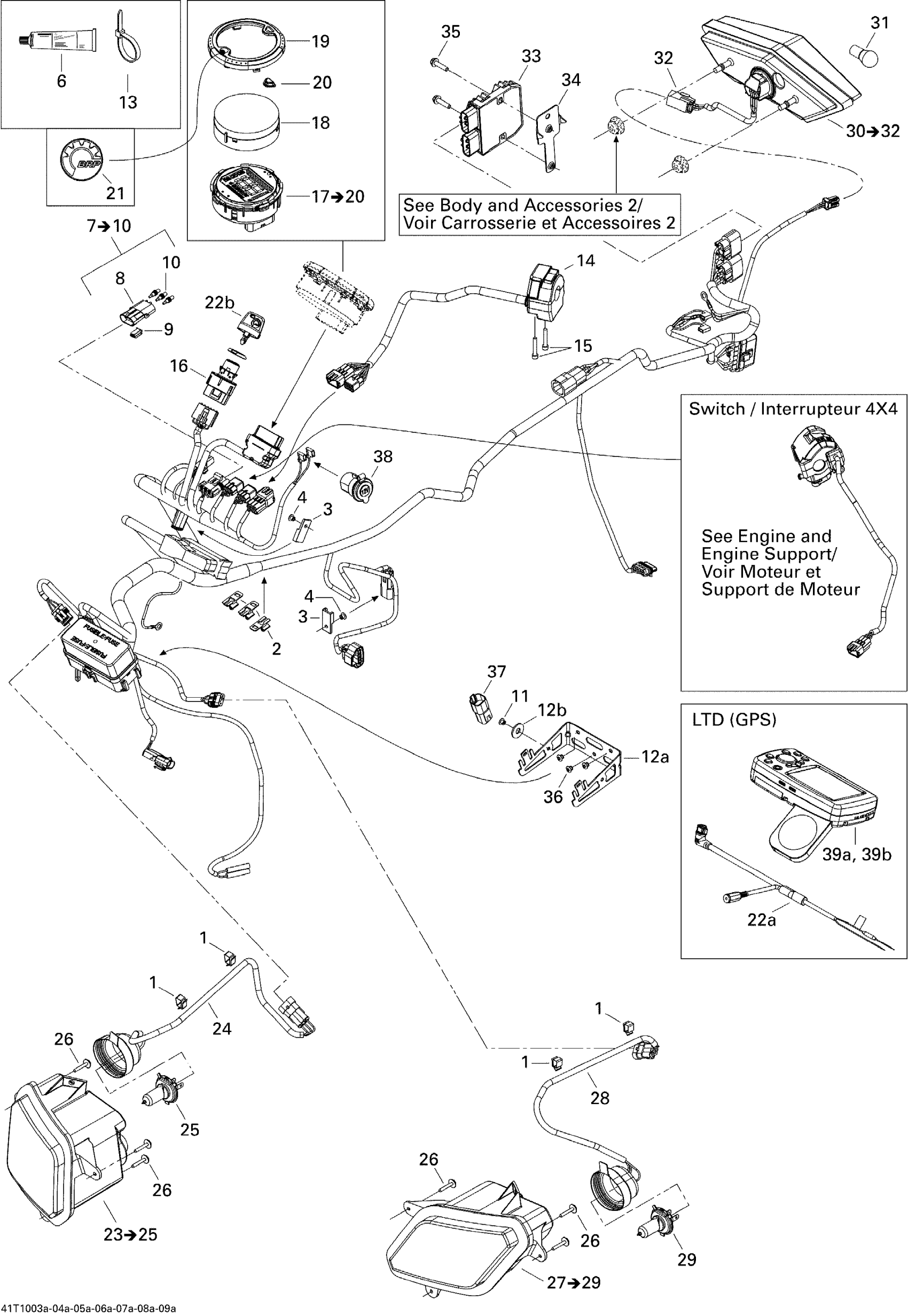

Can-Am Outlander Max 500 EFI Ltd, 2010 10- Electrical Accessories 500 EFI, 1 Diagram
#
1
Clip
414227300
Unavailable
2
Housing Support
515175283
Unavailable
3
Clip
270000141
Unavailable
4
Pop Rivet 3/16"
390402400
Unavailable
6
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
7
Connector Ass'y | XT, Includes 55 to 57
710001059
Unavailable
8
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
9
Clip
710000992
Unavailable
10
Wire Seal
278000216
Unavailable
11
Pop Rivet 3/16"
390402300
Unavailable
12a
FUSE SUPPORT - Call your local BRP dealership
710002176
Unavailable
12b
Washer
517124300
Unavailable
13
Tie Wrap 368 mm
293750008
Unavailable
13
Tie-Rap 180 mm
414115200
Unavailable
13
Tie Wrap 94 mm | 4X4
293750001
Unavailable
13
Tie-Rap 173 mm
293750009
Unavailable
14
Not Available As Spare Parts
XXX
Unavailable
15
Not Available As Spare Parts
XXX
Unavailable
16
Ignition Switch | Includes 16 to 17
710002324
Unavailable
17
Speedometer Ass'y | Includes 18 to 21
710003100
Unavailable
18
Lens
415129320
Unavailable
19
Trim Ring
710001416
Unavailable
20
Button
710001473
Unavailable
21
BRP Logo13 mm
704904615
Unavailable
22a
GPS HARNESS - Call your local BRP dealership | LTD
710001805
Unavailable
22b
Black, Electronic Key
710000817
Unavailable
23
RH Headlamp Ass'y | Includes 20 to 22
710001496
Unavailable
24
LIGHT HARNESS - Call your local BRP dealership
710000828
Unavailable
25
Bulb, 12V 35/35W
710000871
Unavailable
26
Plastite Screw Type K-40, M4 X 25
250000101
Unavailable
27
LH Headlamp Ass'y | Includes 24 to 26
710001497
Unavailable
28
LIGHT HARNESS - Call your local BRP dealership
710000828
Unavailable
29
Bulb, 12V 35/35W
710000871
Unavailable
30
Tail Light Housing Ass'y | Includes 29 to 31
710001203
Unavailable
31
Bulb
520000758
Unavailable
32
Male Housing, 3 Circuits
515175494
Unavailable
33
Voltage Regulator | XT, XTP, LTD
710001191
Unavailable
34
RECTIFIER SUPPORT - Call your local BRP dealership | XT, XTP, LTD
710001572
Unavailable
35
Hex. Flange Screw M6 X 16
207661644
Unavailable
36
Pop Rivet 3/16"
390402400
Unavailable
37
Diagnostic Connector
278002704
Unavailable
38
DC Outlet
710001248
Unavailable
39a
G.P.S. - Call your local BRP dealership | LTD
710001708
Unavailable
39b
Not Available As Spare Parts
XXX
Unavailable
