- Outlander Max 500 EFI Ltd, 2010
09- Body And Accessories 4, 500 EFI

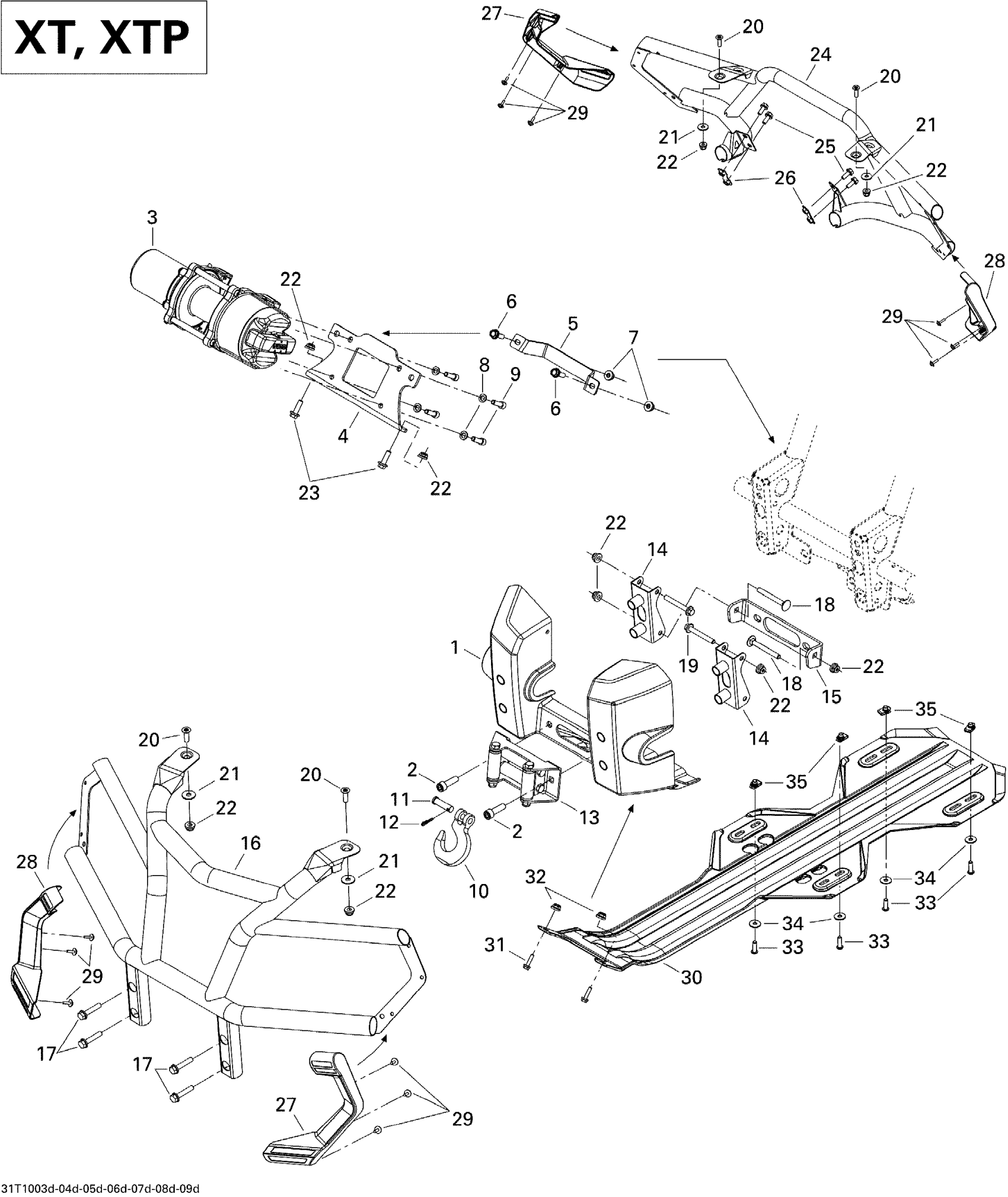

Can-Am Outlander Max 500 EFI Ltd, 2010 09- Body And Accessories 4, 500 EFI Diagram
#
1
GUARD PLATE - Call your local BRP dealership
705003496
Unavailable
2
Socket Screw M10 X 35
205003544
Unavailable
3
WINCH - Call your local BRP dealership
705002505
Unavailable
4
BLACK MOUNTING PLATE - Call your local BRP dealership | XT
705004278
Unavailable
5
BLACK WINCH BRACKET - Call your local BRP dealership | XT
705001460
Unavailable
6
Hex. Flange Screw M8 X 25
207682544
Unavailable
7
Hex. Flange Elastic Nut M8
233281414
Unavailable
8
Lock Washer 8 mm
234181401
Unavailable
9
Socket Head Screw M8 X 20
205082044
Unavailable
10
Winch Hook Kit
705014949
Unavailable
11
Clevis Pin
250400021
Unavailable
12
Cotter Pin
250400022
Unavailable
13
Fairlead_Roller Kit
715007699
Unavailable
14
BUMPER BRACKET - Call your local BRP dealership
705003828
Unavailable
15
WINCH BRACKET - Call your local BRP dealership
705003649
Unavailable
16
Front Bumber | XT
705002812
Unavailable
17
Hex. Flange Screw M8 X 40, Scotch Grip
207584044
Unavailable
18
Carriage Bolt M8 X 70
207787044
Unavailable
19
Hex. Flange Screw M8 x 60
207686044
Unavailable
20
TORX SCREW M8 X 25 - Call your local BRP dealership
235482584
Unavailable
21
Flat Washer 8 mm
234082410
Unavailable
22
Hex. Flange Elastic Nut M8
233281414
Unavailable
23
Hex. Flange Screw M8 X 25
207682544
Unavailable
24
Rear Bumber | XT
705002806
Unavailable
25
Hex Screw Washer Head M8 X 20
207582054
Unavailable
26
LINK PLATE - Call your local BRP dealership
705003796
Unavailable
27
LH Front Cap | XT
705002802
Unavailable
28
RH Front Cap | XT
705002803
Unavailable
29
Screw M4 X 16
250000725
Unavailable
30
PLATE_SKID CTRL. KIT - Call your local BRP dealership
715000688
Unavailable
31
Hex. Flange Screw M6 X 25
207662544
Unavailable
32
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
33
Torx Screw M8 X 25, Scotch Grip
250000283
Unavailable
34
Flat Washer 8 mm
234082410
Unavailable
35
Panel Nut M8
250100111
Unavailable
