- Outlander Max 500 EFI Ltd, 2010
09- Body And Accessories 2, 500 EFI

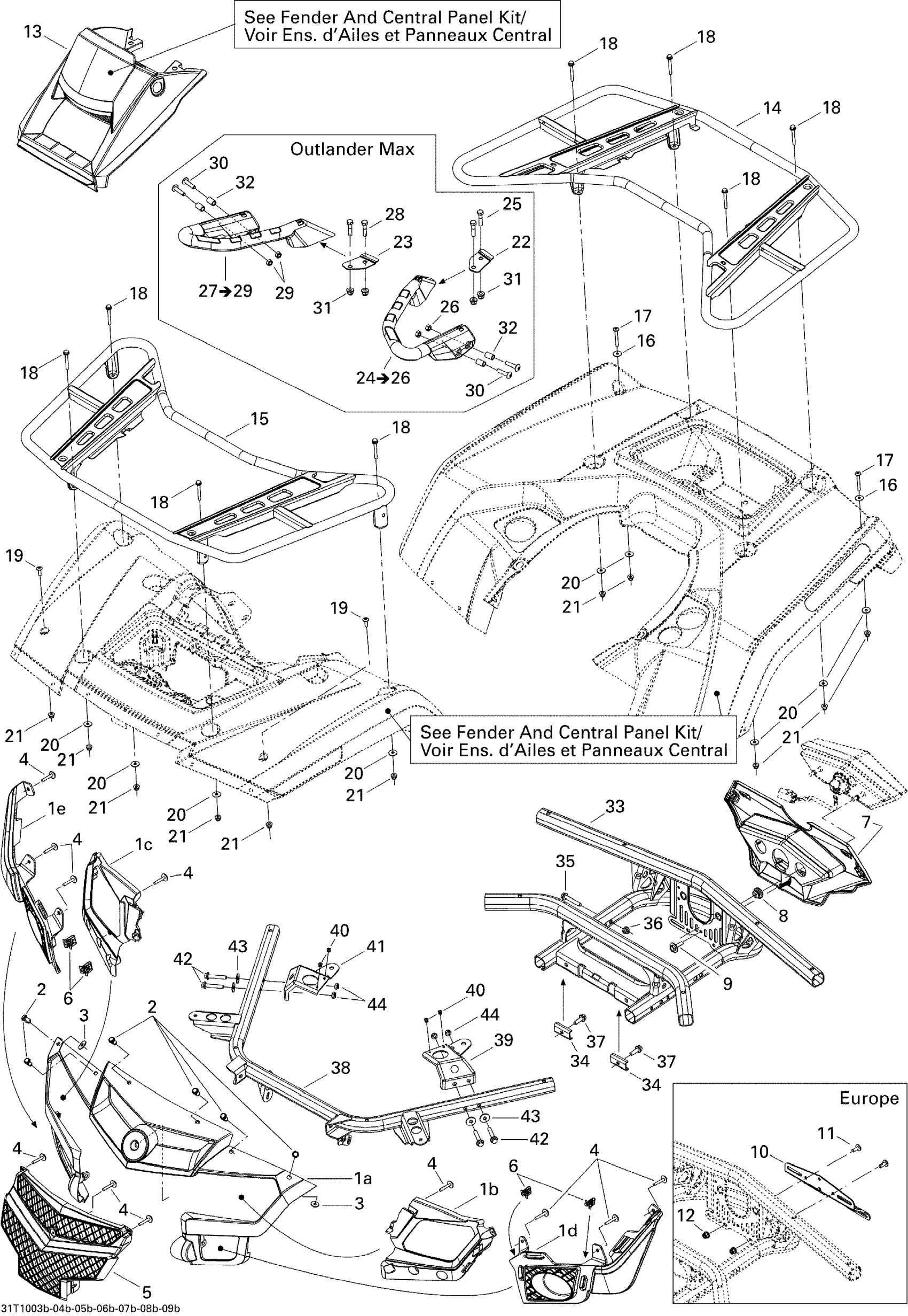

Can-Am Outlander Max 500 EFI Ltd, 2010 09- Body And Accessories 2, 500 EFI Diagram
#
1a
FRONT FASCIA - Call your local BRP dealership | Radiant Red Model
705004899
Unavailable
1a
FRONT FASCIA, GREY - Call your local BRP dealership | Grey
705004777
Unavailable
1b
LH Head Lamp Support
705002825
Unavailable
1c
RH Head Lamp Support
705002826
Unavailable
1d
LH LOWER FRONT FACIA - Call your local BRP dealership
705002780
Unavailable
1e
RH LOWER FRONT FACIA - Call your local BRP dealership
705002781
Unavailable
2
Tuflok Plastic Rivet
293150230
Unavailable
3
Washer
506151252
Unavailable
4
Plastite Screw Type K-40, M4 X 25
250000101
Unavailable
5
UPPER GRILL - Call your local BRP dealership
705002779
Unavailable
6
Edge Clip
517302785
Unavailable
7
Rear Facia
705003840
Unavailable
8
Stopper Rubber
705014429
Unavailable
9
Screw M4 X 16
250000725
Unavailable
10
Not Available As Spare Parts
XXX
Unavailable
11
Not Available As Spare Parts
XXX
Unavailable
12
Not Available As Spare Parts
XXX
Unavailable
13
Dashboard
705003490
Unavailable
14
Rear Luggage Rack
705002617
Unavailable
15
Front Luggage Rack
705002616
Unavailable
16
Flat Washer
250200040
Unavailable
17
Torx Truss Screw M6 X 50
250000749
Unavailable
18
Hex. Screw M6 X 55
207065544
Unavailable
19
Torx Screw M6 x 25
250000284
Unavailable
20
Flat Washer
224061201
Unavailable
21
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
LH FIXATION PLATE - Call your local BRP dealership
705002762
Unavailable
23
RH FIXATION PLATE - Call your local BRP dealership
705002760
Unavailable
24
LH HANDLE - Call your local BRP dealership | Includes 24 to 26
705002700
Unavailable
25
Hex. Screw M8 X 35
207083544
Unavailable
26
HEX. NUT - Call your local BRP dealership
232081494
Unavailable
27
RH HANDLE - Call your local BRP dealership | Includes 27 to 29
705002699
Unavailable
28
Hex. Screw M8 X 35
207083544
Unavailable
29
HEX. NUT - Call your local BRP dealership
232081494
Unavailable
30
TORX SCREW M8 X 35 - Call your local BRP dealership | Max
250000441
Unavailable
31
Hex. Flange Elastic Nut M8
233281414
Unavailable
32
Bushing
705002153
Unavailable
33
Rear Support
705003656
Unavailable
34
U Reinforcement
705003647
Unavailable
35
Hex. Flange Screw M8 X 50
207685044
Unavailable
36
Hex. Flange Elastic Nut M8
233281414
Unavailable
37
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
38
FRONT SUPPORT - Call your local BRP dealership
705003655
Unavailable
39
LH ANCHOR PLATE - Call your local BRP dealership
705002995
Unavailable
40
Pop Rivet 3/16"
390402300
Unavailable
41
RH Anchor Plate
705002997
Unavailable
42
Hex. Flange Screw M8 X 45
207684544
Unavailable
43
Flat Washer 8 mm
234082410
Unavailable
44
Hex. Elastic Stop Nut M8
232581414
Unavailable
