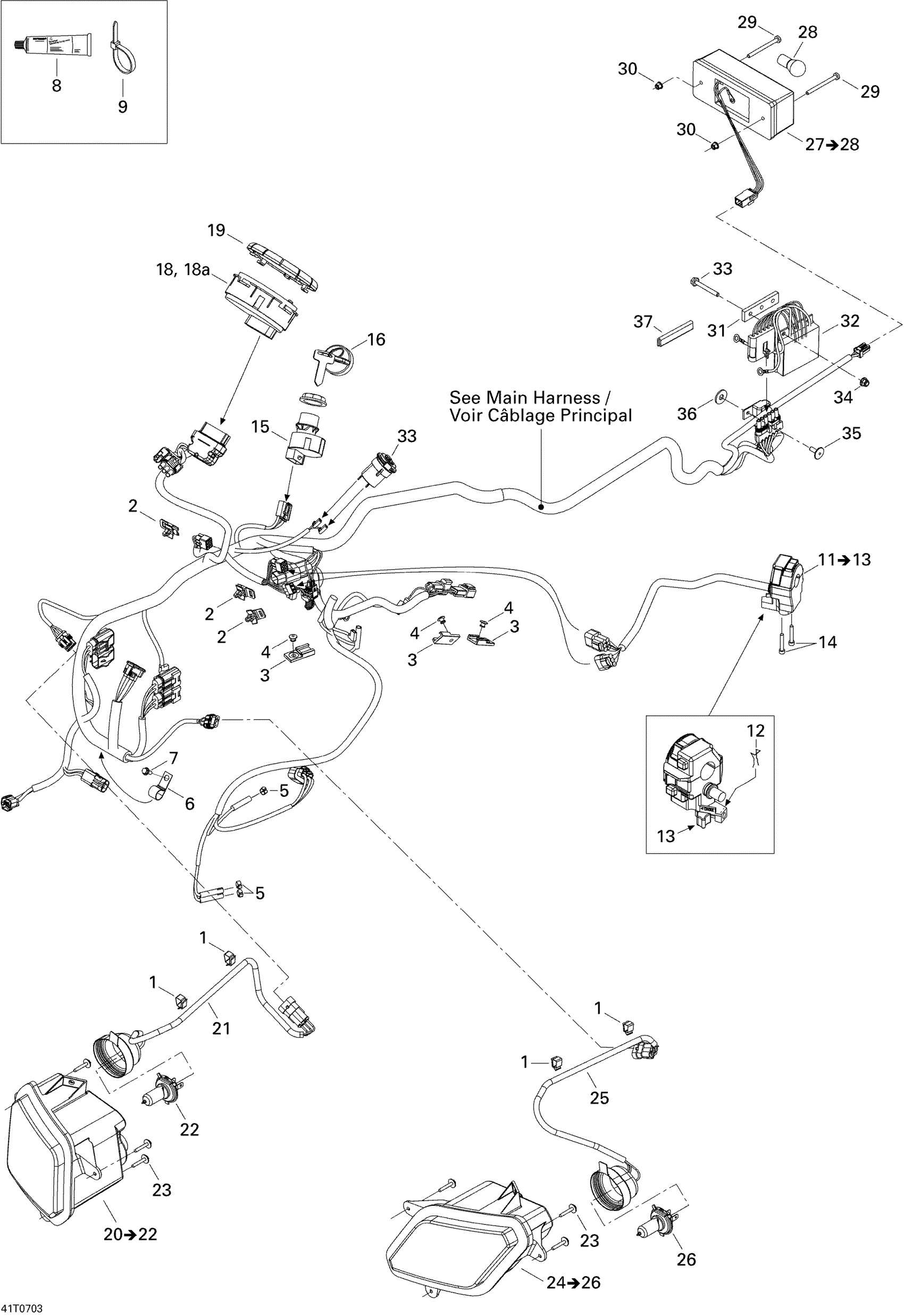

Can-Am Outlander MAX 400 XT 4 X 4, 2007 Electrical Accessories Diagram

#

Description
Price

1

Clip

414227300

$1.40

2

Housing Support

515175283

$8.18

3

Clip

270000141

$9.57

4

Pop Rivet 3/16"

390402400

$0.28

5

Oetiker Clamp

293650100

$3.15

6

CLAMP - Call your local BRP dealership

705600311

Unavailable

7

Hex. Flange Screw M6 X 16

210261650

$1.40

8

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

9

Tie Wrap 142 mm

293750002

$1.01

9

Tie-Rap 180 mm

414115200

$0.10

9

Tie Wrap 368 mm

293750008

$0.97

9

Tie-rap 627 mm

293750041

$0.87

11

Multi-Fonction Handle | Includes 9 To 11

710000311

Unavailable

12

CLIP - Call your local BRP dealership

710000631

Unavailable

13

CHOKE LEVER - Call your local BRP dealership

710000632

Unavailable

14

Socket Head Screw M5 X 35

205053588

$1.79

15

Switch_Ignition

710007867

$81.31

16

Key, Groove on Right Side

715900029

$24.60

18

SPEEDOMETER - Call your local BRP dealership

710000850

Unavailable

18a

REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership

415128938

Unavailable

19

TRIM RING - Call your local BRP dealership

710000353

Unavailable

20

RH Headlamp Ass'y | Includes 20 to 22

710001496

$80.57

21

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

22

Bulb, 12V 35/35W

710000871

$32.06

23

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

24

LH Headlamp Ass'y | Includes 24 to 26

710001497

$80.57

25

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

26

Bulb, 12V 35/35W

710000871

$32.06

27

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$85.79

28

Bulb

520000758

$8.60

29

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

30

Hex. Flange Elastic Nut M5

233251414

$1.91

31

SPACER - Call your local BRP dealership

710000912

Unavailable

32

VOLTAGE REGULATOR A'SSY - Call your local BRP dealership

710000907

Unavailable

33

Hex. Flange Screw M6 X 50

207665044

$3.88

33

Outlet Power Kit, 12 Volts

861507200

$35.04

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

35

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

36

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

37

Was 271000110 Protection Trim

219704353

$14.58
