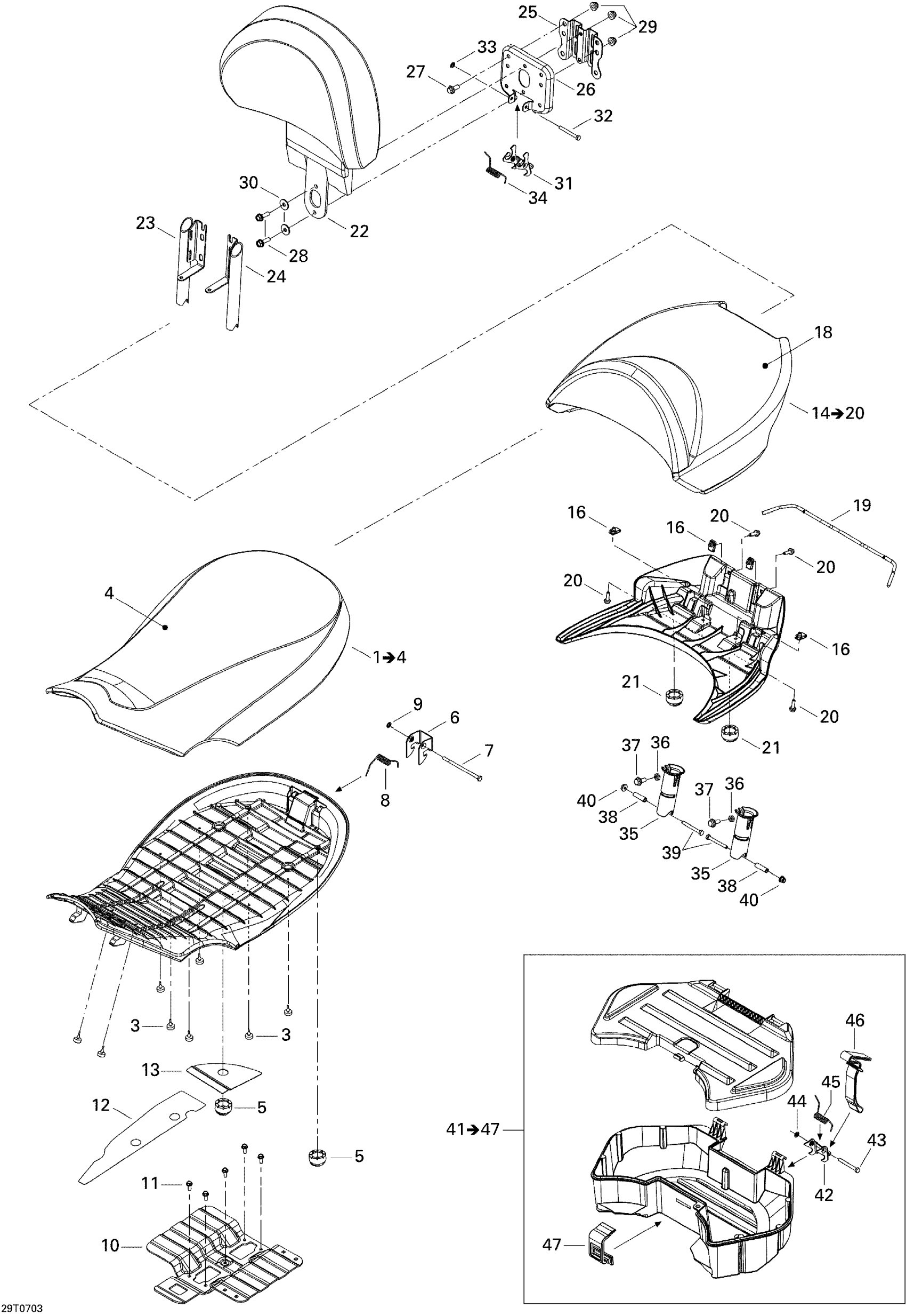

Can-Am Outlander MAX 400 XT 4 X 4, 2007 Seat Diagram

#

Description
Price

1

Siege Assemblee*Seat Assembly | Includes 1 to 6

708001506

$413.40

3

Rubber Stopper

708000759

$4.15

4

Seat Cover

708000556

$117.88

5

Bumper Rubber

708000760

$8.84

6

Latch, Black

708000144

$10.76

7

Hex. Screw M6 X 110

230061044

$1.43

8

Spring

708000369

$8.34

9

Push Nut

732610072

$1.97

10

Seat Reinforcement

708000512

Unavailable

11

Hex. Flange Screw M6 X 12

210261250

$1.79

12

REFLECTING SHEET - Call your local BRP dealership

708000198

Unavailable

13

Reflecting Sheet

708000322

Unavailable

14

Rear Seat Ass'y | Includes 16 to 20

708000805

$208.93

16

Panel Nut M6 X 1.0

250100198

$1.99

18

Seat Cover

708000457

$152.96

19

LATCH HANDLE - Call your local BRP dealership

708000822

Unavailable

20

Hex. Flange Screw M6 X 20

207662044

$1.91

21

Bumper Rubber

708000760

$8.84

22

Backrest Ass'y

708000809

$519.99

23

LH BACKREST STEM - Call your local BRP dealership

708000439

Unavailable

24

RH BACKREST STEM - Call your local BRP dealership

708000443

Unavailable

25

REAR PLATE - Call your local BRP dealership

708000855

Unavailable

26

FRONT PLATE - Call your local BRP dealership

708000446

Unavailable

27

Hex. Flange Screw M8 X 20

207682044

$1.06

28

Hex. Flange Screw M8 X 25

207682544

$1.03

29

Hex. Flange Elastic Nut M8

233281414

$1.31

30

Flat Washer 8 mm

234082410

$1.27

31

LATCH - Call your local BRP dealership

708000448

Unavailable

32

Hex. Screw M6 X 55

207065544

$1.96

33

Push Nut

732610072

$1.97

34

Spring

708000369

$8.34

35

ROD GUIDE - Call your local BRP dealership

708000461

Unavailable

36

Hex. Jam Nut M8

232180600

$0.64

37

Hex. Screw M8 X 20

207182044

$0.70

38

INNER BUSHING - Call your local BRP dealership

708000462

Unavailable

39

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

41

BOX ASS'Y - Call your local BRP dealership | Includes 41 to 47

708200119

Unavailable

42

LATCH - Call your local BRP dealership

708200066

Unavailable

43

Hex. Screw M6 X 55

207065544

$1.96

44

Push Nut

732610072

$1.97

45

Spring

708000369

$8.34

46

BELT - Call your local BRP dealership

510004495

Unavailable

47

Cover Latch

708200120

$12.90
