Description

Price

1

FRAME BLACK - Call your local BRP dealership

705202621

$1,569.99

2

OOTBOARD ASS'Y - Call your local BRP dealership

705202081

$69.99

3

Battery Support Base

705201942

$34.99

4

Rear Support, Black

705203842

$42.99

5

Heat Shield

705202394

Unavailable

6

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Hex. Flange Screw M8 X 45

207684544

$3.68

9

Seat Support

705201260

Unavailable

10

Hex. Flange Screw M6 X 12

210261250

$1.56

11

Hex. Elastic Flange Nut M8

233281416

$1.25

12

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

13

Flat Washer

224081301

$0.86

14

Torx Screw M4 X 8

250000127

$1.09

15

Elastic Stop Nut M4

232541484

$0.61

16

TRAILER HOOK, BLACK - Call your local BRP dealership

705201112

Unavailable

17

Hex. Flange Screw M10 X 25

207602544

$1.33

18

Hex. Flange Elastic Nut M10

233201436

$1.74

19

SUPPORT PLATE, BLACK - Call your local BRP dealership

705202402

Unavailable

20

REAR FOOTREST - Call your local BRP dealership

705201993

$39.99

21

Hex. Flange Screw M8 X 20

207682044

$0.92

22

DIAGONAL BRACE - Call your local BRP dealership

705202393

$62.99

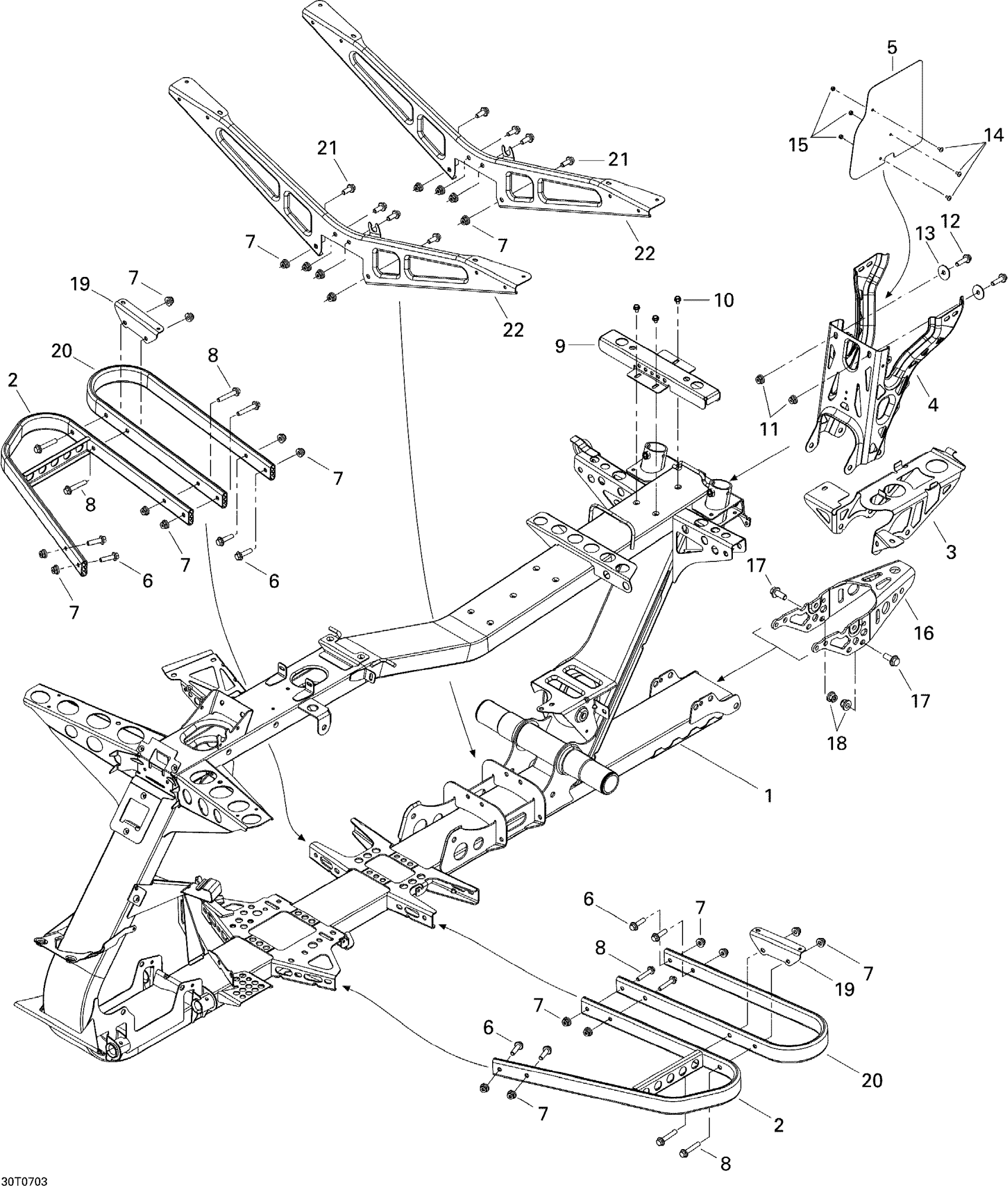

Can-Am Outlander MAX 400 XT 4 X 4, 2007 Frame Diagram

Heat Shield

Seat Support

TRAILER HOOK, BLACK - Call your local BRP dealership

SUPPORT PLATE, BLACK - Call your local BRP dealership
