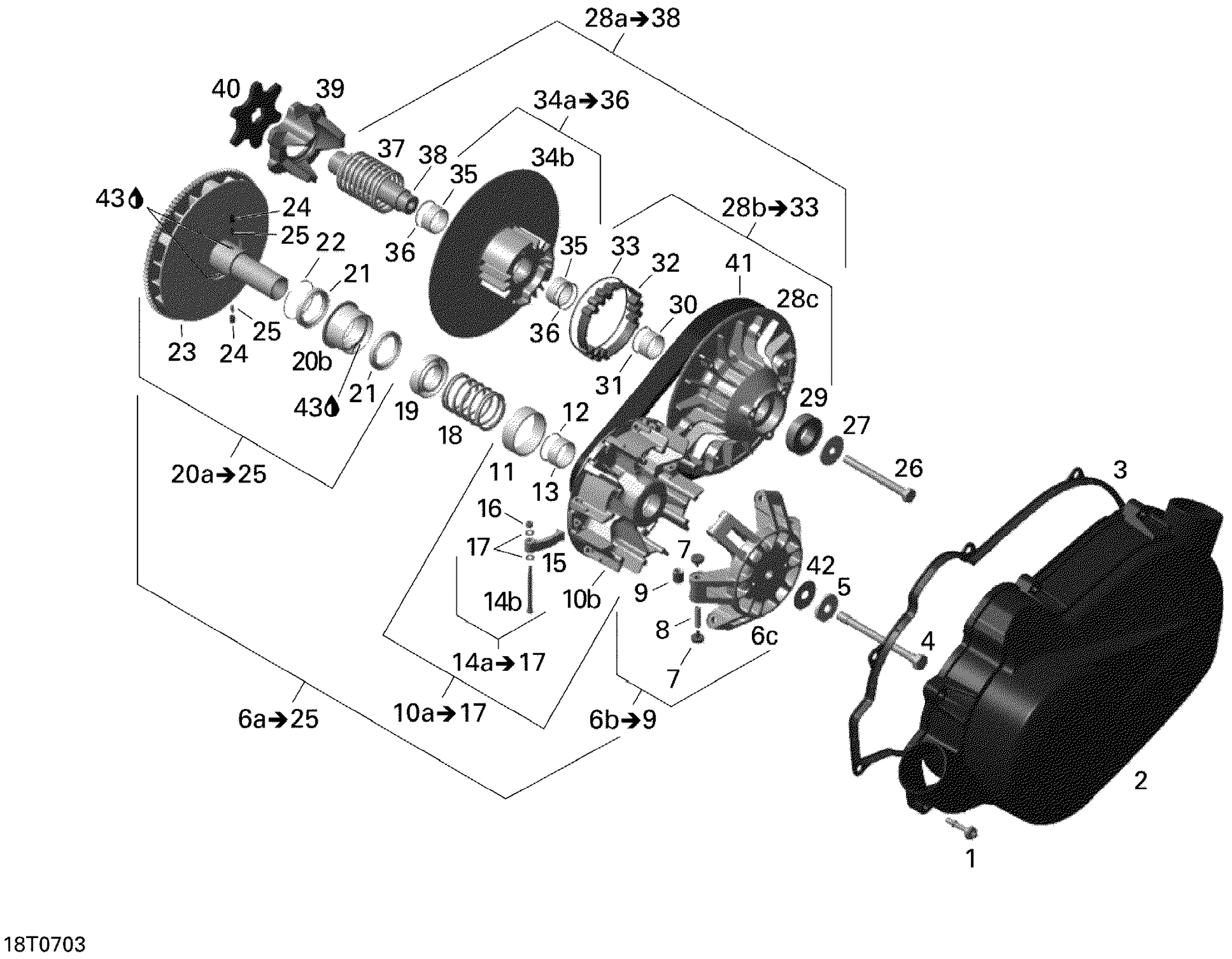

Can-Am Outlander MAX 400 XT 4 X 4, 2007 Transmission Diagram

#

Description
Price

1

Hex Screw M6 X 30

420440568

$8.15

2

CVT COVER - Call your local BRP dealership

420610426

Unavailable

3

CVT Cover Gasket

420630290

$29.82

4

Hex. Screw M12 X 140

420641812

$26.84

5

Spring Washer

420627760

$10.90

6a

CVT Drive Ass'y | Includes 48 to 67

420684401

Unavailable

6b

Governor Cup Ass'y | Includes 6 to 9

420280522

$241.76

6c

Not Available As Spare Part - Friction Washer

Unavailable

7

Slider Shoe Set

420281296

$41.01

8

Roller Axle

417223257

$6.37

9

Roller

417223767

$7.15

10a

Outer Half Ass'y | Includes 52 to 59

420280316

Unavailable

10b

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14a

Centrifugal Lever Set | 400HO / Includes 14 to 16

420248424

$71.72

14b

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Compression Spring

420238166

$32.06

19

Seat Spring

420627578

$32.81

20a

Inner Half Set Ass'y | Includes 19 to 24

420281390

Unavailable

20b

Clutch

420257439

$152.96

21

Ball Bearing

420632377

$46.24

22

Retaining Ring

420245951

$5.39

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Spring Sleeve

420229577

$17.13

25

Compression Spring

420239135

$5.87

26

Hex. Screw M10 X 110

420441485

$11.37

27

Thrust Washer

420627594

$11.81

28a

CVT Driven Pulley Ass'y | Includes 70 to 81

420685230

Unavailable

28b

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.76

28c

Not Available As Spare Part - Friction Washer

Unavailable

29

Ball Bearing

420932421

$26.09

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Torque Gear

420660124

$21.61

33

Retaining Ring

420245911

$5.31

34a

Inner Half Ass'y | Includes 33 to 35

420248233

$293.54

34b

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Compression Spring

420238340

Unavailable

38

Driven Pulley Shaft

420220913

$120.87

39

Cam

420280250

$40.27

40

Cam Plate

420627586

$43.25

41

Drive Belt

422280283

$92.51

42

Thrust Washer

420627920

$6.93

43

Isoflex Grease, TOPAS NB52, 50 g

293550021

$55.94
