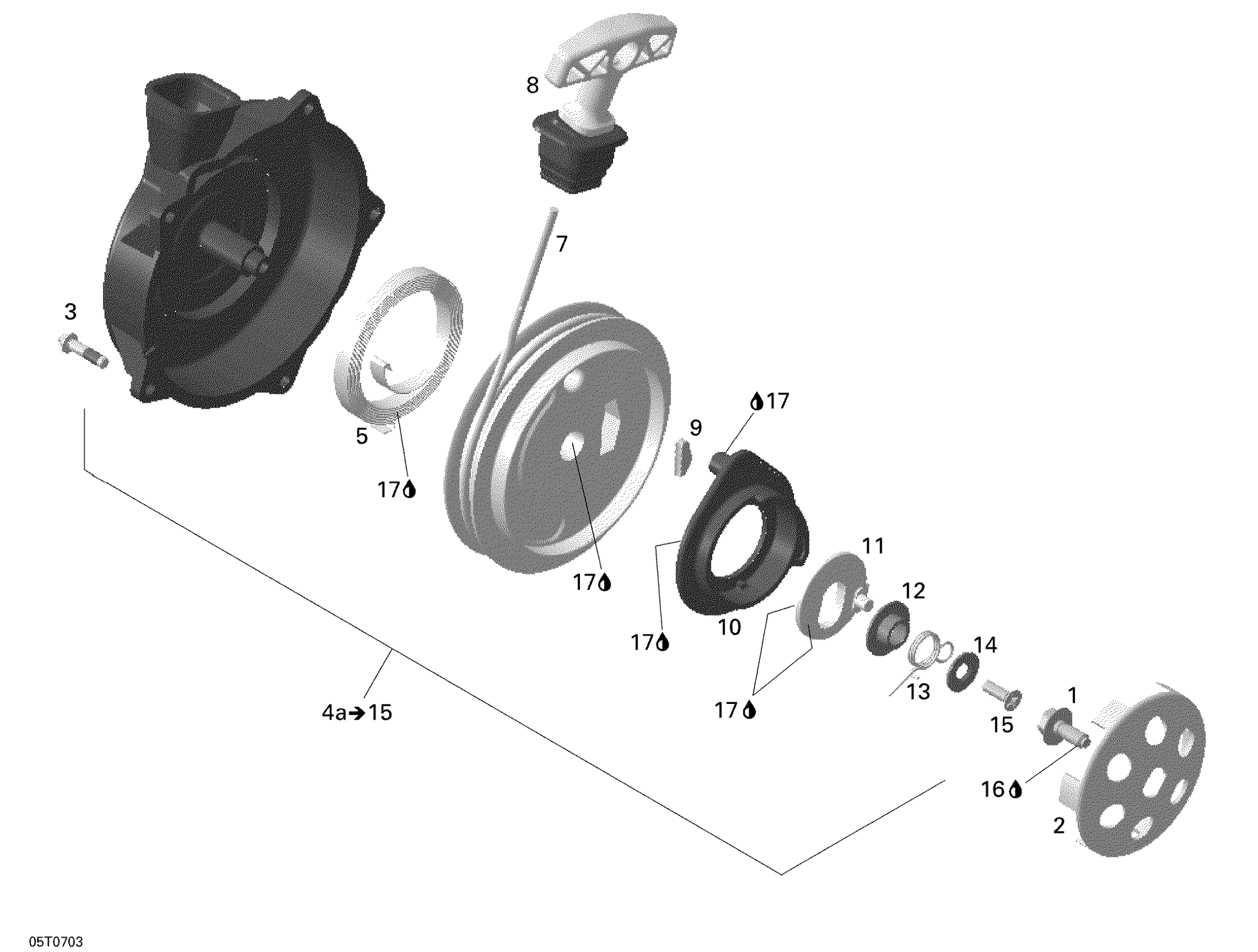

Can-Am Outlander MAX 400 XT 4 X 4, 2007 Rewind Starter Diagram

Hex. Collar Screw M8 X 20 | 330HO

420241721

$7.01

Starting Pulley

420852501

$27.58

Hex. Screw M6 X 25

420240034

$1.79

Starter Rope Housing Ass'y | Includes 4 to 15

715001034

$214.90

Rewind Spring

420939115

$29.07

Was 412500100 Rope-Starter

219704403

$9.85

Starting Grip With Rubber Buffer

420852555

$44.00

Key Clamp

420852070

$4.01

Pawl

420852299

$22.36

Lock Pawl

420852306

$15.64

STAGE SLEEVE - Call your local BRP dealership

420847927

Unavailable

Locking Spring

420938989

$18.63

Flat Washer

420244320

$7.21

PLASTITE SCREW M6 X 20 - Call your local BRP dealership

420241730

Unavailable

Loctite 243, 10 ml

293800060

$21.49

Molykote PG 54, 10 g

420899763

$21.61
