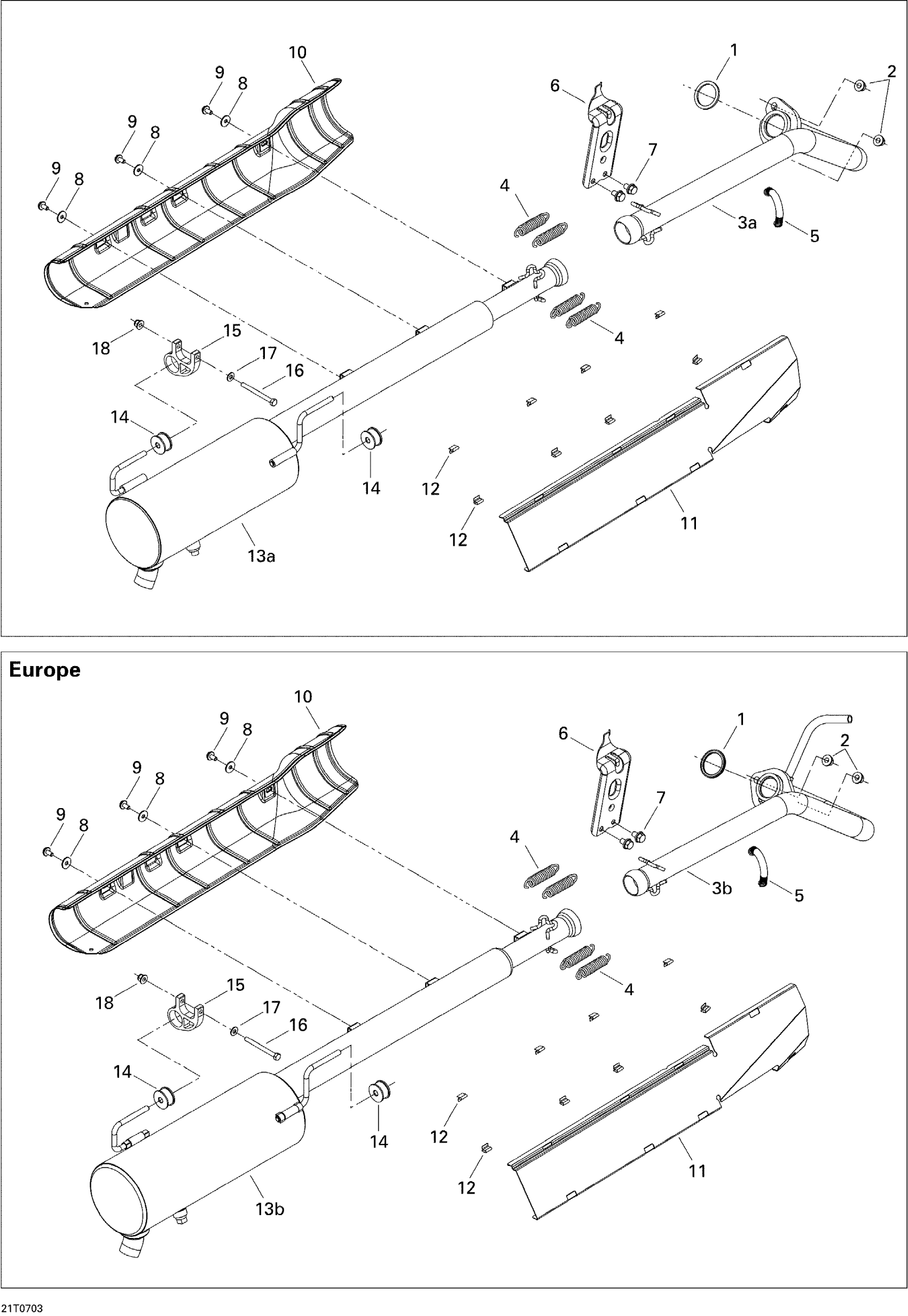

Can-Am Outlander MAX 400 XT 4 X 4, 2007 Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$10.52

2

Hex. Flange Nut M8

233081416

$1.63

3a

HEAD PIPE - Call your local BRP dealership

707600376

Unavailable

3b

Head Pipe | Europe

707600405

Unavailable

4

Spring

415107100

$6.20

5

SPRING - Call your local BRP dealership

707600207

$4.58

6

Muffler Support

707600194

Unavailable

7

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

8

Flat Washer

250200082

$0.35

9

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

10

HEAT SHIELD - Call your local BRP dealership

707600255

$27.66

11

HEAT DEFLECTOR - Call your local BRP dealership

707600340

$11.51

12

Clip | Europe Models

517306751

$1.97

13a

MUFFLER - Call your local BRP dealership

707600396

Unavailable

13b

Muffler | Europe

707600361

Unavailable

14

Anti-Vibration Rubber

707600702

$8.34

15

MUFFLER BRAKET - Call your local BRP dealership

707600411

Unavailable

16

Hex. Screw M6 X 65

207066544

$0.46

17

Flat Washer

224061121

$0.44

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
