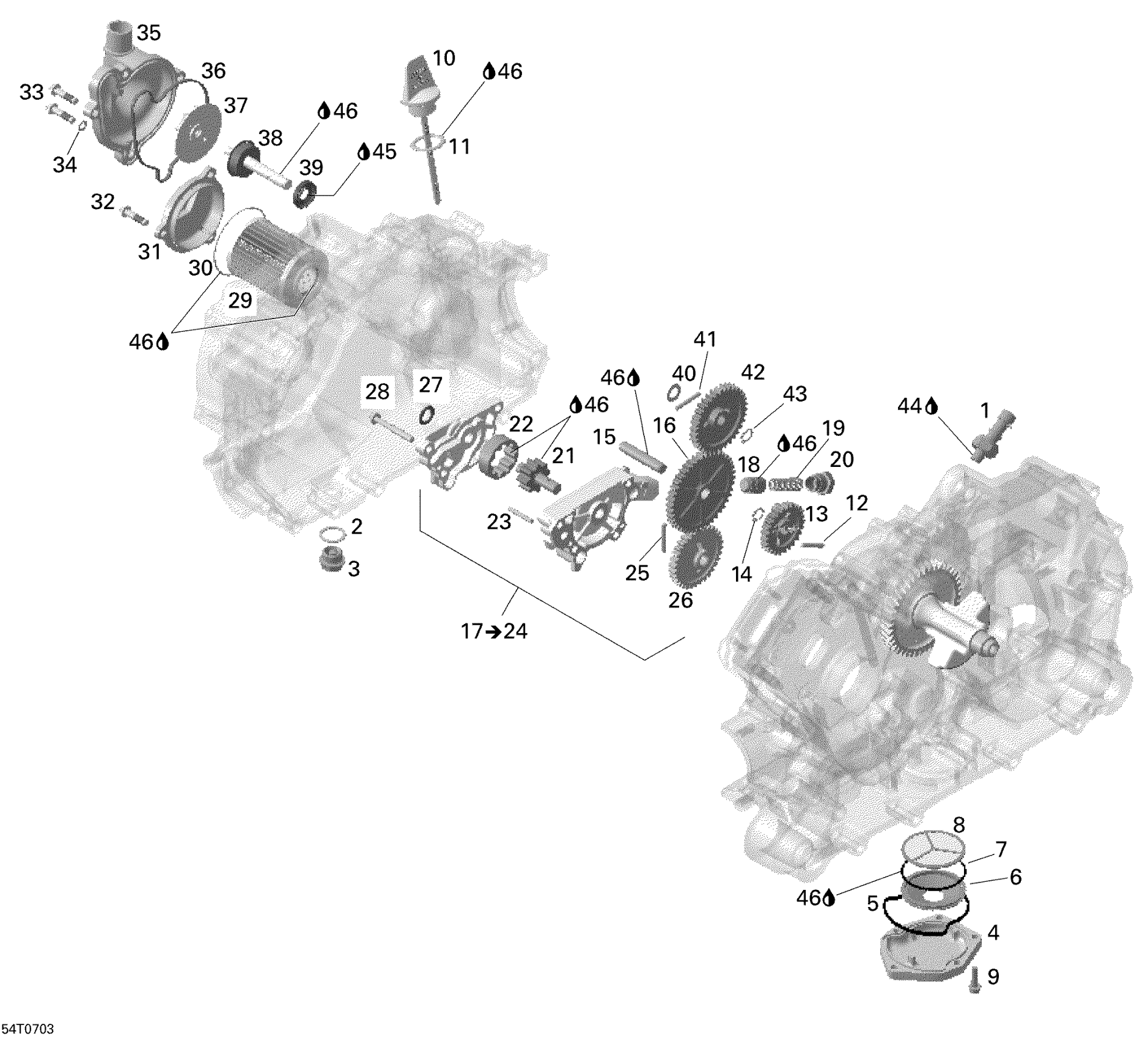

Can-Am Outlander MAX 400 XT 4 X 4, 2007 Engine Lubrication Diagram

#

Description
Price

1

Inter.Press.Hui*Switch-Oil Pressure

420856539

$38.78

2

Crush Washer

420552280

$3.43

3

Drain Plug M18 X 1.5

420840278

$22.36

4

OIL SIEVE COVER - Call your local BRP dealership

420211940

Unavailable

5

Rubber Ring

420650560

$14.34

6

Oil Collector

420256650

$46.99

7

O-Ring

420650697

$9.25

8

Oil Sieve

420256576

$17.88

9

Torx Flange Screw M6 X 20

420440207

$2.91

10

Oil Dipstick

420256800

$15.64

11

O-Ring

420631640

$2.00

12

Needle Pin

420232431

$4.21

13

Idle Gear, 25 Teeth

420635191

$15.64

14

Snap Ring

420245330

$1.64

15

Location Pin 10 M6x50

420229302

$3.01

16

Idle Gear, 42 Teeth

420635660

$18.63

17

Oil Pump Ass’y | Includes 17 to 24

420296507

$255.94

18

Piston Valve

420256922

$11.70

19

Compression Spring

420238220

$7.24

20

Plug Screw M16

420641167

$17.88

21

Oil Pump Shaft

420220814

$120.12

22

Oil Pump Outer Rotor

420256935

$64.90

23

Needle Pin

420232431

$4.21

25

Needle Pin

420232431

$4.21

26

Oil Pump Gear, 32 Teeth

420635220

$19.37

27

O-ring

420250290

$7.60

28

Torx Flange Screw M6 X 45

420440324

$0.93

29

Oil Filter

420256188

$12.79

30

O-Ring

420230923

$2.97

31

Oil Filter cover

420612135

$10.78

32

Torx Flange Screw M6 X 25

420440234

$2.91

33

Torx Flange Screw M6 X 25

420440234

$2.91

34

Seal Washer

420230415

$1.72

35

Water Pump Housing

420222680

$58.18

36

Gasket

420630270

$9.25

37

Water Impeller

420222505

$17.13

38

Waterpump Shaft Ass'y

420620171

$68.63

39

Oil Seal

420650315

$11.04

40

Thrust Washer

420827590

$3.75

41

Needle Pin

420232431

$4.21

42

Idle Gear, 34 Teeth

420635620

$15.64

43

Snap Ring

420245330

$1.64

44

Loctite 243, 10 ml

293800060

$21.49

45

Grease, Super Lube

293550030

$28.33

46

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
