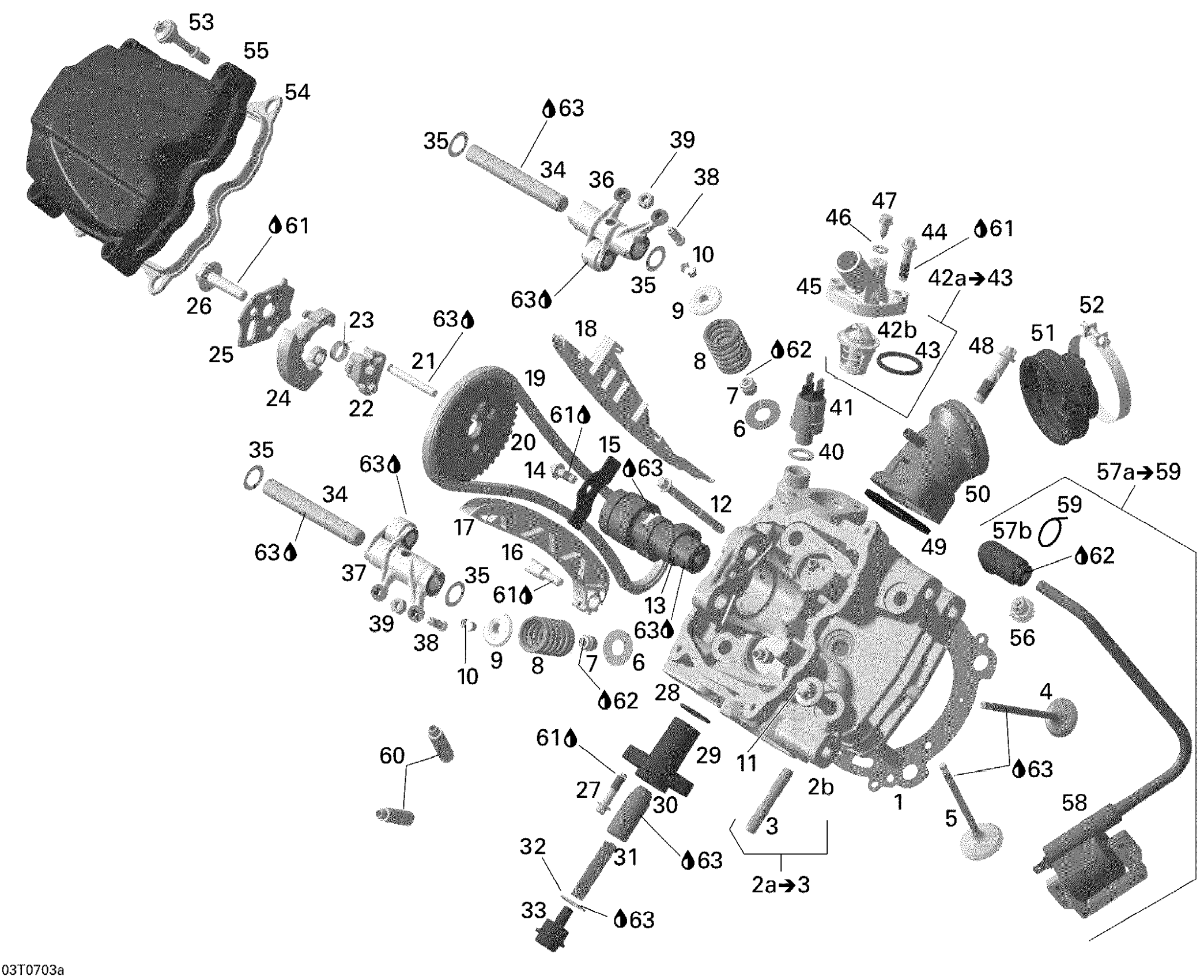

Can-Am Outlander MAX 400 XT 4 X 4, 2007 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket | 400HO

420630195

$76.09

2a

Cylinder Head | Includes 2 to 3

420413397

$675.34

2b

Not Available As Spare Part - Friction Washer

Unavailable

3

Stud M8 x 26

420941014

$12.15

4

Intake Valve 31MM

420254359

$34.30

5

Exhaust Valve 27MM

420254368

$66.39

6

Thrust Washer

420627525

$1.72

7

Valve Stem Seal

420230515

$11.54

8

Valve Spring

420239295

$13.18

9

Valve Spring Retainer

420254132

$13.18

10

Cotter Valve

420254120

$3.88

11

Torx Screw M10X140

420641551

$13.18

12

Torx Flange Screw M6 X 85

420641228

$7.01

13

Camshaft

420620011

$418.99

14

Torx Flange Screw M6 X 16

420440162

$3.01

15

Holding Strip

420627743

$17.13

16

Bearing Screw M6

420240943

$4.16

17

Chain Tension Guide

420436015

$23.10

18

Chain Guide

420236584

$7.09

19

Silent Chain

420297063

$61.91

20

Camshaft Sprocket

420254434

$35.04

21

Deko Shaft | 400HO

420620120

$18.63

22

Spacer | 400HO

420231080

$18.63

23

Deko Torsion Spring | 400HO

420238270

$4.57

24

Centrifugal Weight | 400HO

420231070

$16.39

25

Deko Washer | 400HO

420231090

$11.33

26

Hex. Collar Screw M8 X 32 | 400HO

420641820

$15.64

27

Torx Flange Screw M6 X 25

420440234

$2.91

28

O-Ring

420430373

$3.01

29

Chain Tensioner Housing

420236510

$10.76

30

Chain Tensioner Plunger

420236521

$14.04

31

Spring

420238120

$7.01

32

O-Ring

420250890

$2.87

33

Plug Screw

420641150

$7.01

34

Pin #12, Small, M6 X 90

420229712

$14.90

35

Shim

420944382

$3.88

36

Inlet Rocker Arm

420254907

$134.30

37

Exhaust Rocker Arm

420254911

$137.28

38

Adjustment Screw M6 X 0.75

420241337

$4.75

39

Hex Nut M6

420242913

$0.51

40

Copper Washer

420250640

$0.93

41

Temperature Switch

420897938

Unavailable

42a

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

420222494

$48.48

42b

Not Available As Spare Part - Friction Washer

Unavailable

43

Thermostat Gasket

420650300

$8.09

44

Torx Flange Screw M6 X 25

420440234

$2.91

45

Thermostat Cover

420222696

$3.00

46

Gasket Ring

420650255

$3.88

47

Screw M5 X 16

420441621

$3.01

48

ALLEN SCREW M8 X 40 - Call your local BRP dealership

420440482

Unavailable

49

Gasket

420630640

$3.33

50

Intake Flange Ass'y

420267386

$34.30

51

Intake Neck

420267340

$15.64

52

Clamp

420251480

$13.18

53

Hex Screw M6 X 30

420440568

$8.15

54

Gasket

420630260

$8.09

55

Valve Cover

420610393

$25.34

56

Spark Plug, NGK DCP-R8E

715900637

$6.49

57a

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

420265358

Unavailable

57b

Spark Plug Connector

420265248

$30.57

58

Not Available As Spare Part - Friction Washer

Unavailable

59

Not Available As Spare Part - Friction Washer

Unavailable

60

Valve Guide

420254374

$28.99

61

Loctite 243, 10 ml

293800060

$21.49

62

Grease, Super Lube

293550030

$28.33

63

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
