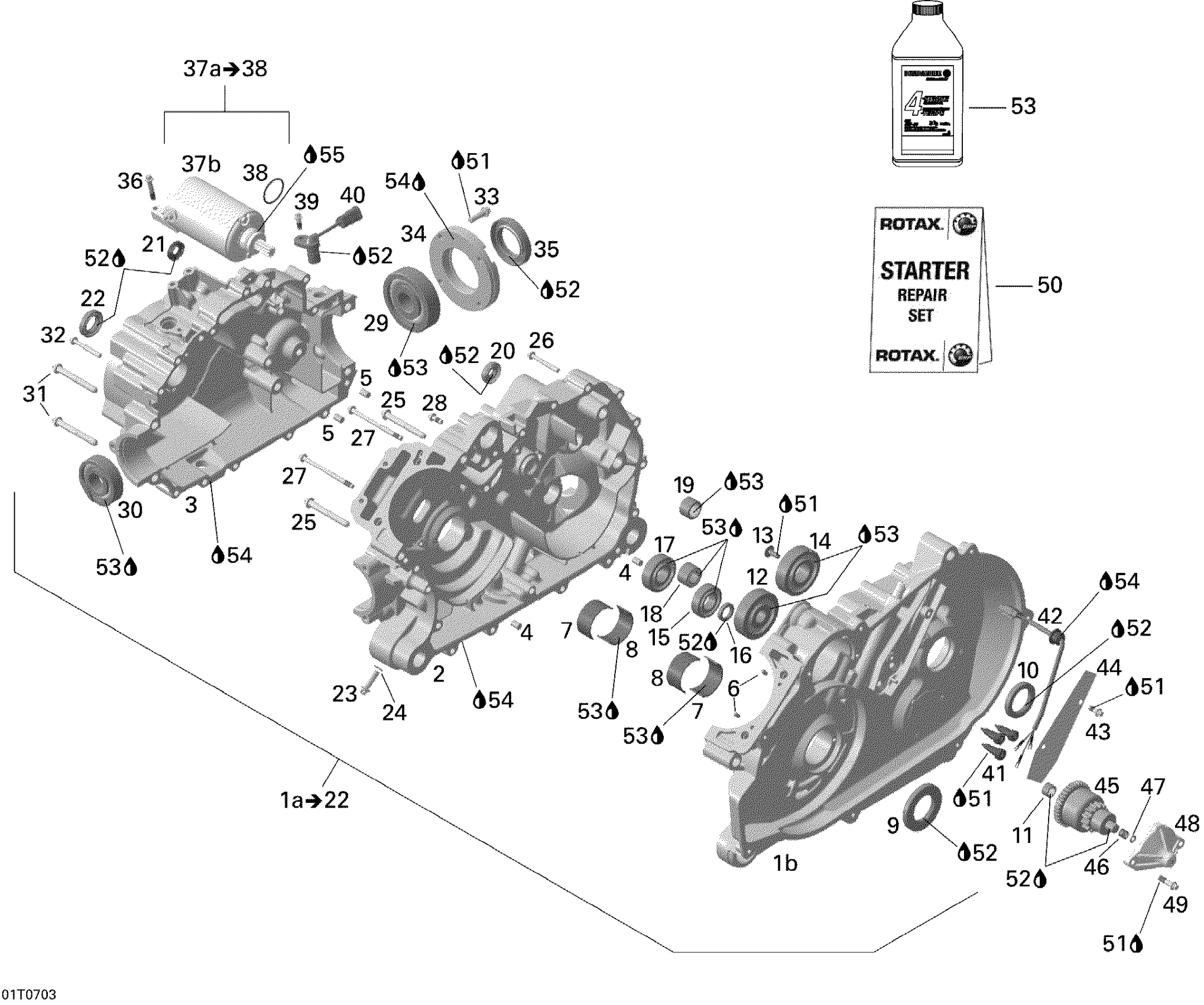

Can-Am Outlander MAX 400 XT 4 X 4, 2007 Crankcase Diagram

#

Description
Price

1a

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 22

420296761

Unavailable

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Center Pin 8 X 12

420632010

$3.52

5

Center Pin 8 X 12

420632010

$3.52

6

Drive Pin 5 X 10

420929650

$1.54

7

Plain Bearing

420233960

$22.36

8

Plain Bearing

420233965

$22.36

9

Oil Seal

420630152

$15.64

10

Oil Seal

420950089

$17.88

11

Needle Bushing

420232482

$17.88

12

Ball Bearing

420632295

$44.00

13

Torx Screw M6 X 16

420241529

$1.79

14

Ball Bearing

420932822

$28.33

15

Ball Bearing 6302

420232291

$27.58

16

Oil Seal

420250130

$16.39

17

Ball Bearing 6204

420932433

$21.61

18

Needle Bushing

420232085

$35.04

19

Needle Bushing

420832240

$19.37

20

Oil Seal

420250450

$15.64

21

Oil Seal

420650315

$11.04

22

Oil Seal

420930392

$13.51

23

Torx Flange Screw M8 X 25

420440372

$3.88

24

Sealing Ring

420950141

$1.88

25

Torx Flange Screw M8 X 65

420440402

$7.01

26

Torx Flange Screw M6 X 45

420440324

$0.93

27

Torx Flange Screw M6 X 85

420641228

$7.01

28

Torx Flange Screw M6 X 16

420440162

$3.01

29

Ball Bearing 6405

420632280

$91.01

30

Ball Bearing

420932822

$28.33

31

Torx Flange Screw M6 X 85

420641228

$7.01

32

Torx Flange Screw M6 X 45

420440324

$0.93

33

Torx Flange Screw M8 X 25

420440372

$3.88

34

Bearing Cover

420610243

$52.96

35

Oil Seal

420650682

$17.88

36

Torx Flange Screw M6 X 35

420440274

$0.96

37a

Electric Starter | Includes 37 to 38

420684283

$252.69

37b

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Torx Flange Screw M6 X 16

420440162

$3.01

40

Camshft Position Sensor Ass'y

420265727

$104.45

41

Position Switch

420241856

$34.30

42

Wiring Harness

420265831

$47.73

43

Torx Flange Screw M6 X 16

420440162

$3.01

44

Cover Sheet

420251290

$10.30

45

Starter Drive Assembly

420684052

$251.46

46

Spring

420938204

$6.07

47

Washer 5.3

420927574

$1.79

48

Reduction Cover Gear

420610891

$19.37

49

Hex. Screw M6 X 25

420240034

$1.79

50

BRUSH KIT - Call your local BRP dealership

420266305

Unavailable

51

Loctite 243, 10 ml

293800060

$21.49

52

Grease, Super Lube

293550030

$28.33

53

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

54

Loctite 5910, 300 ml

293800081

$57.99

55

Petamo Grease, GHY133N, 400 g

420899271

$65.64
