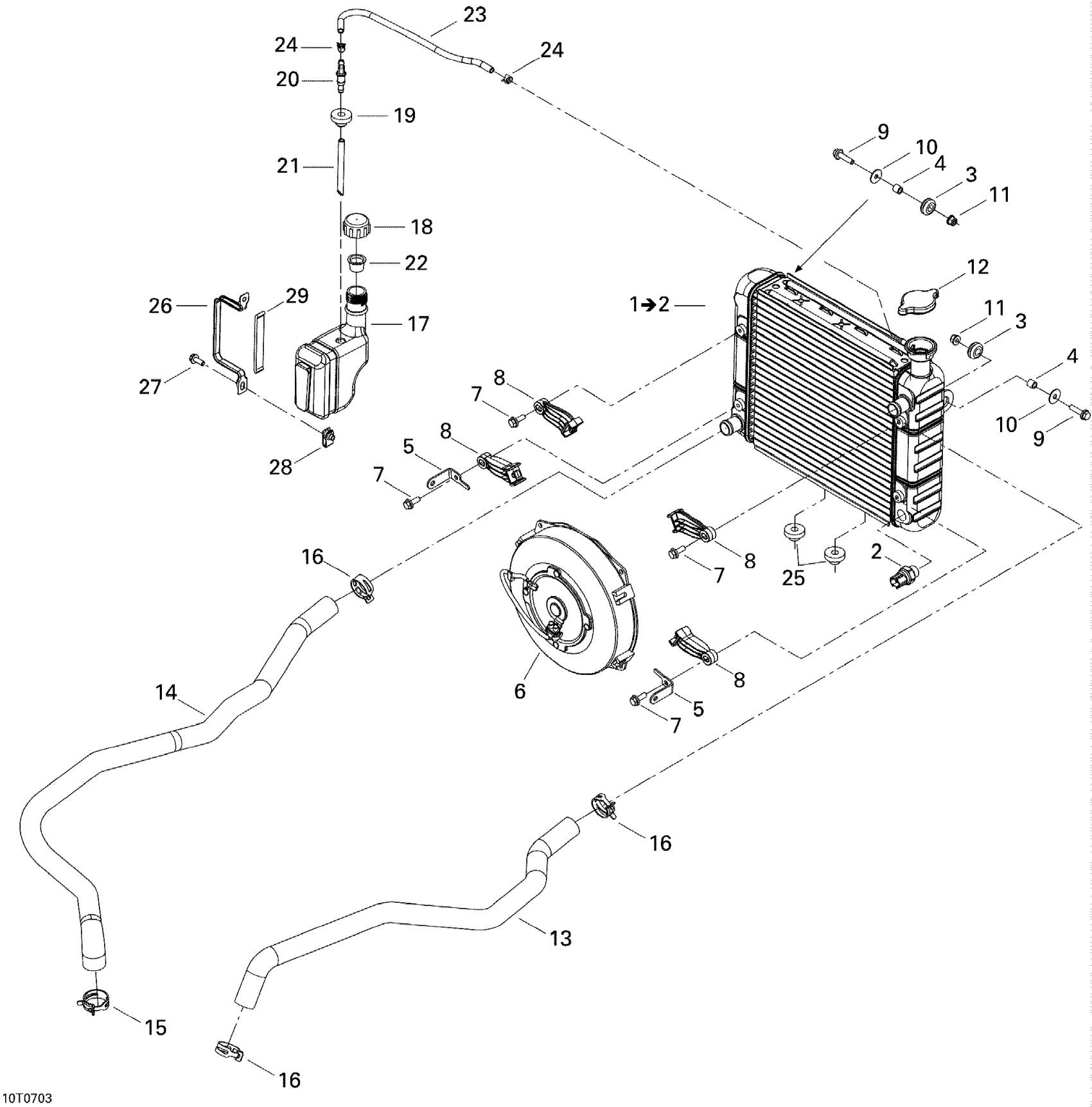

Can-Am Outlander MAX 400 XT 4 X 4, 2007 Cooling System Diagram

#

Description
Price

1

RADIATOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

709200149

Unavailable

2

Temperature Sensor

715900095

$64.90

3

Grommet

709000582

$4.25

4

Bushing

293900105

$6.07

5

SUPPORT - Call your local BRP dealership

709200284

Unavailable

6

Fan Ass'y

709200158

Unavailable

7

Hex. Flange Screw M6 X 25

207562544

$1.60

8

FAN SUPPORT - Call your local BRP dealership

709200159

Unavailable

9

Hex. Flange Screw M6 X 25

207662544

$0.61

10

Flat Washer

250200082

$0.40

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

12

Radiator Pressure Cap

709200207

$21.61

13

RADIATOR INLET HOSE - Call your local BRP dealership

709200077

Unavailable

14

Radiator Outlet Hose

709200169

Unavailable

15

Norma Spring Clamp

293650108

$3.88

16

Norma Spring Clamp

293650109

$3.88

17

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

18

TANK CAP - Call your local BRP dealership

709200009

Unavailable

19

Grommet

709200285

$8.13

20

Elbow Male Connector

414580600

$4.01

21

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

22

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

23

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

24

Spring Clamp

414554800

$0.81

25

Grommet

709200285

$8.13

26

TANK ANCHOR - Call your local BRP dealership

709200080

Unavailable

27

Hex. Flange Screw M6 X 16

210261650

$1.40

28

Panel Nut M6 X 1.0

250100198

$1.99

29

Gasket, Neoprene 2000Mm Long

219704476

$14.51
