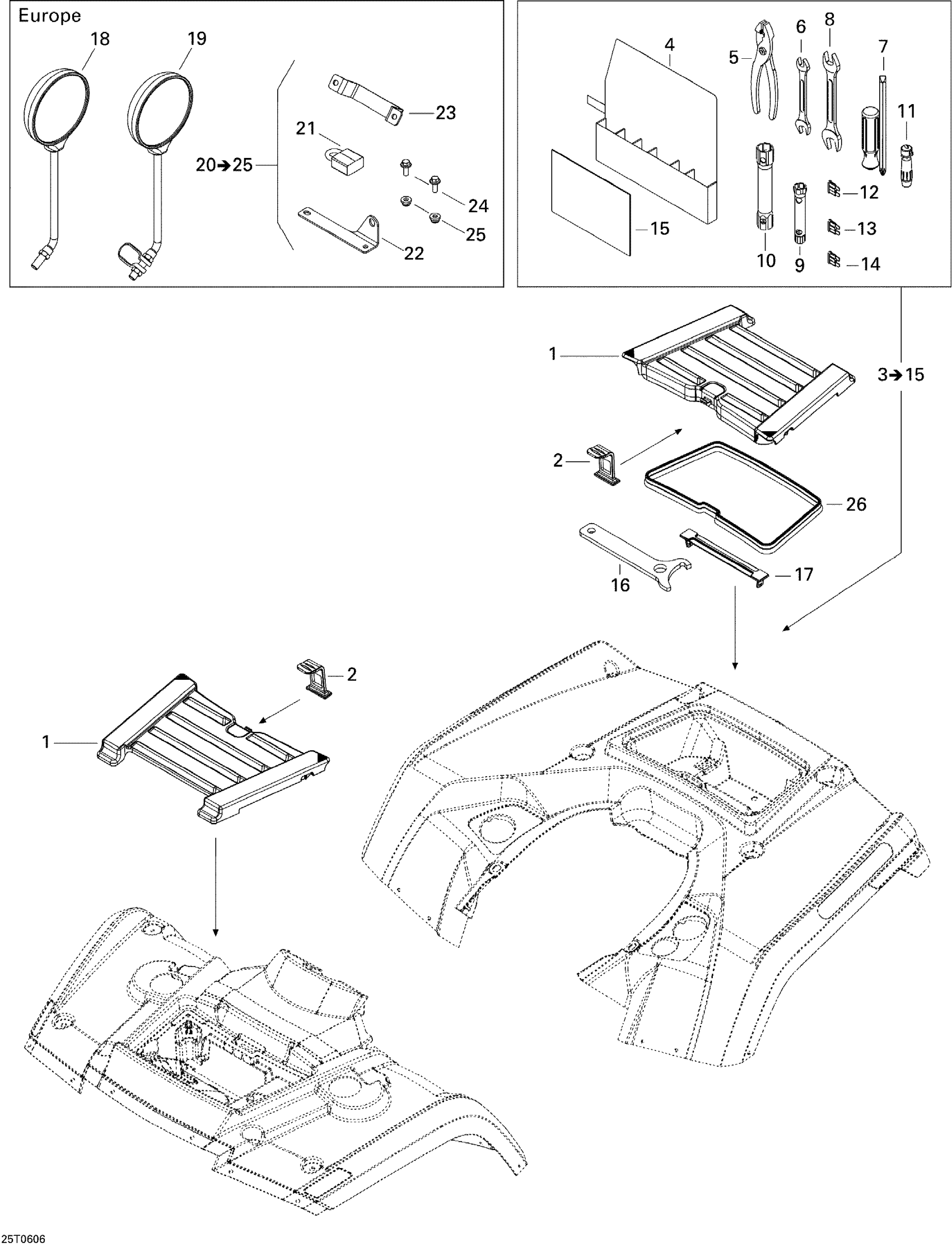

Can-Am Outlander MAX 400 XT 4 X 4, 2006 09- Front Storage Tray Diagram

#

Description
Price

1

Storage Cover

705003492

Unavailable

2

Cover Latch

708200120

Unavailable

3

TOOL KIT WITHOUT BRP LOGO - Call your local BRP dealership | Includes 3 to 15

708200124

Unavailable

4

Tool Bag

520000552

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

7

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

8

FORK WRENCH 15/17 MM - Call your local BRP dealership

529000003

Unavailable

9

Socket Wrench 10/13 mm

529014900

Unavailable

10

Socket Wrench 16/18 mm

295000175

Unavailable

11

PRESSURE GAUGE - Call your local BRP dealership

529000052

Unavailable

12

Fuse, 30 Amperes

410917200

Unavailable

13

Fuse, 20 Amperes

409003900

Unavailable

14

Fuse, 15 Amperes

278000343

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Adjustment Wrench

529000035

Unavailable

17

COVER LATCH KIT - Call your local BRP dealership

708200121

Unavailable

18

LH Mirror | Europe

709400406

Unavailable

19

RH Mirror | Europe

709400407

Unavailable

20

SECURITY KIT - Call your local BRP dealership | Europe / Includes 20 to 25

705600479

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

BRACKET - Call your local BRP dealership

705000416

Unavailable

24

Hex. Flange Screw M8 X 20

207682044

Unavailable

25

Hex. Flange Elastic Nut M8

233281414

Unavailable

26

Neoprene Seal

293250192

Unavailable
