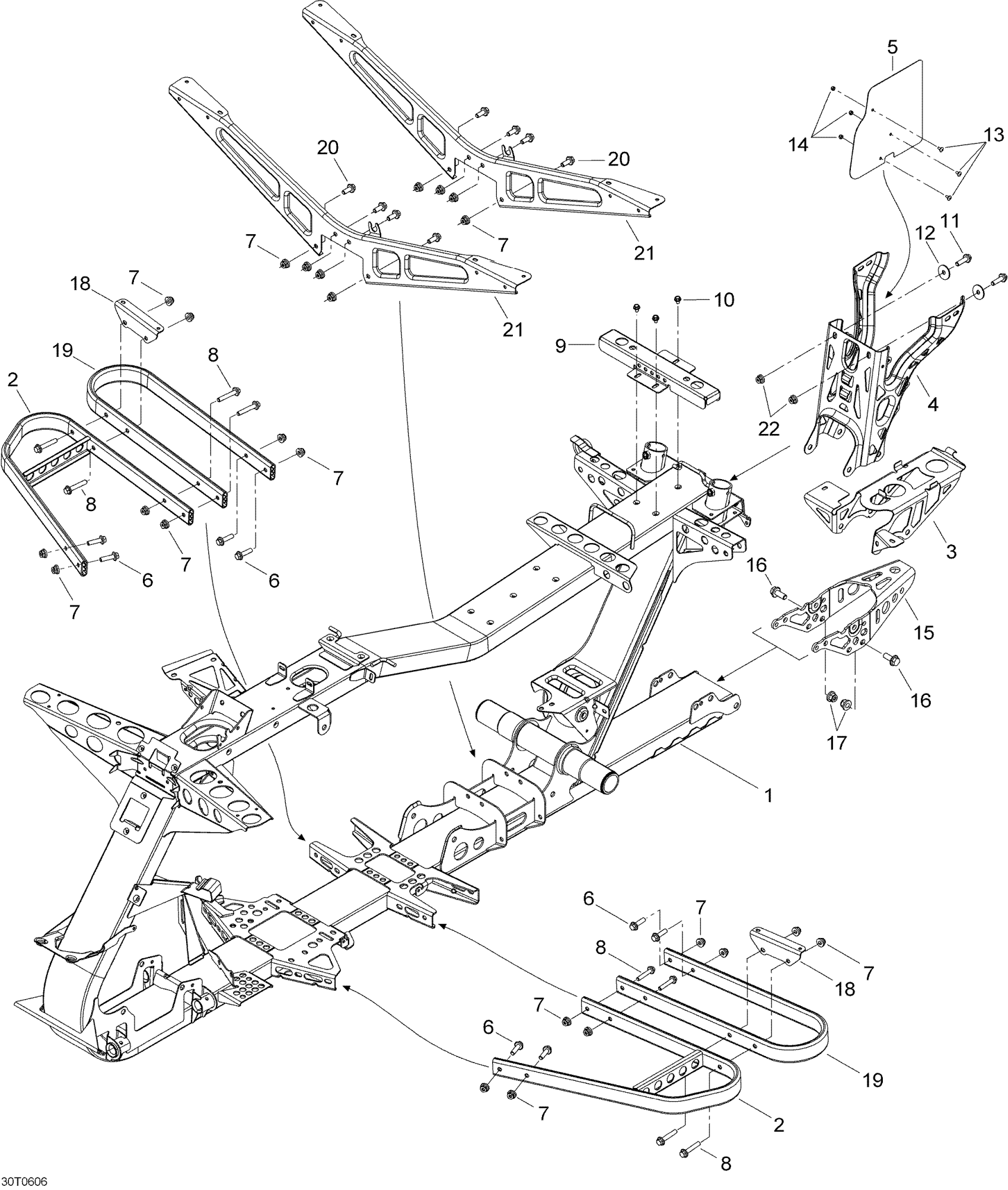

Can-Am Outlander MAX 400 XT 4 X 4, 2006 09- Frame Diagram
#
Description
Price
1
FRAME BLACK - Call your local BRP dealership
705202621
Unavailable
2
OOTBOARD ASS'Y - Call your local BRP dealership
705202081
Unavailable
3
Battery Support Base
705201942
Unavailable
4
Rear Battery Support, Black
705200934
Unavailable
5
Heat Shield
705202394
Unavailable
6
Hex. Flange Screw M8 X 30 | DS 650 X
207683044
Unavailable
7
Hex. Flange Elastic Nut M8
233281414
Unavailable
8
Hex. Flange Screw M8 X 45
207684544
Unavailable
9
Seat Support
705201260
Unavailable
10
Hex. Flange Screw M6 X 12
210261250
Unavailable
11
Hex. Flange Screw M8 X 30 | DS 650 X
207683044
Unavailable
12
Flat Washer
224081301
Unavailable
13
Torx Screw M4 X 8
250000127
Unavailable
14
Elastic Stop Nut M4
232541484
Unavailable
15
TRAILER HOOK, BLACK - Call your local BRP dealership
705201112
Unavailable
16
Hex. Flange Screw M10 X 25
207602544
Unavailable
17
Hex. Flange Elastic Nut M10
233201436
Unavailable
18
SUPPORT PLATE, BLACK - Call your local BRP dealership
705202402
Unavailable
19
REAR FOOTREST - Call your local BRP dealership
705201993
Unavailable
20
Hex. Flange Screw M8 X 20
207682044
Unavailable
21
DIAGONAL BRACE - Call your local BRP dealership
705202393
Unavailable
22
Hex. Elastic Flange Nut M8
233281416
Unavailable
