- Outlander MAX 400 XT 4 X 4, 2006
05- Transmission

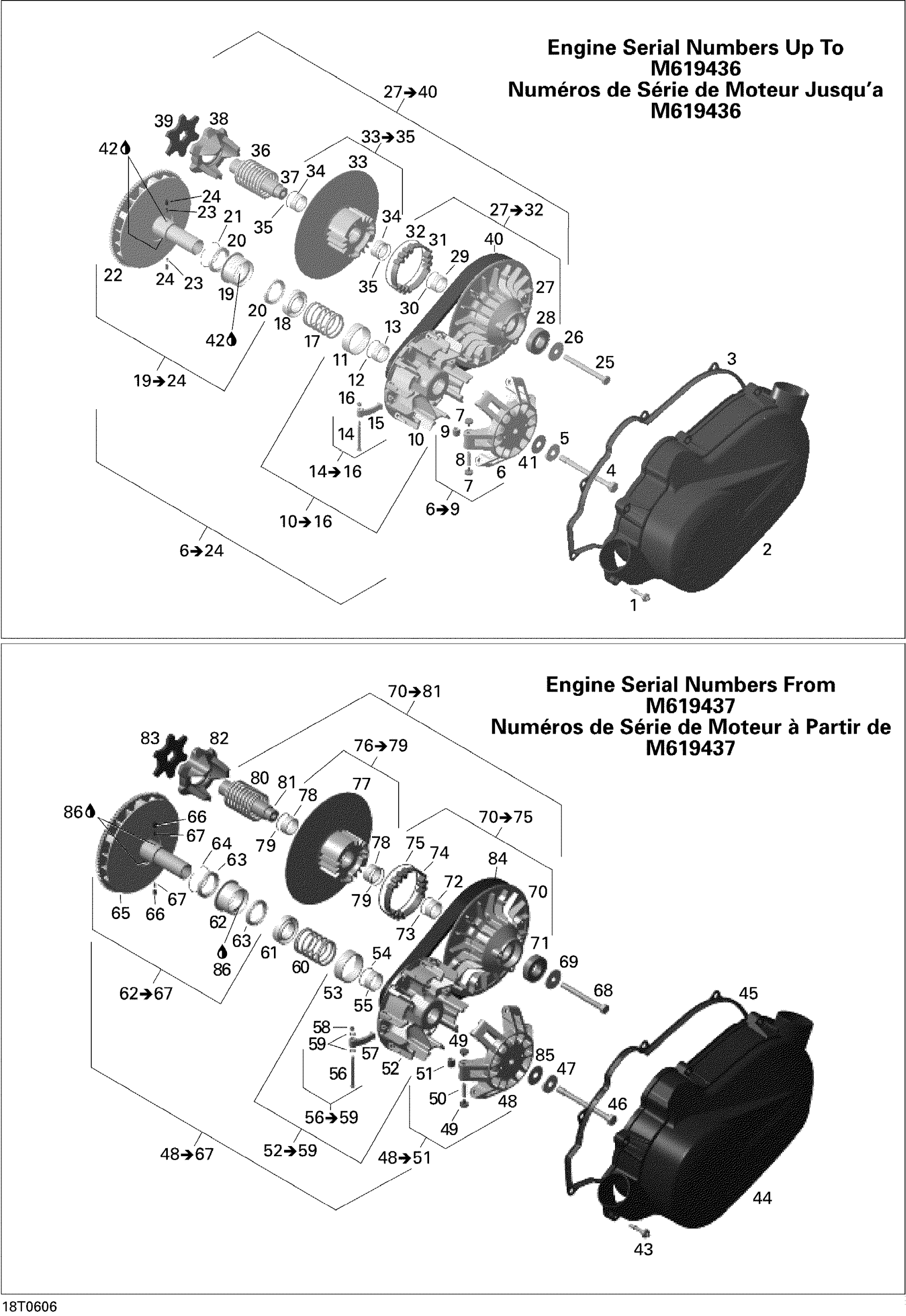

Can-Am Outlander MAX 400 XT 4 X 4, 2006 05- Transmission Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
1
Hex Screw M6 X 30
420440568
Unavailable
2
CVT COVER - Call your local BRP dealership
420610421
Unavailable
3
CVT Cover Gasket
420630290
Unavailable
4
Hex. Screw M12 X 140
420641812
Unavailable
5
Spring Washer
420627760
Unavailable
6
CVT Drive Ass'y | 400HO / Includes 6 to 24
420684400
Unavailable
6
Governor Cup Ass'y | Includes 6 to 9
420280522
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Slider Shoe Set
420281296
Unavailable
8
Roller Axle
417223257
Unavailable
9
Roller
417223767
Unavailable
10
Outer Half Ass'y | 400HO / Includes 10 to 16
420280310
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Centrifugal Lever Set | 400HO / Includes 14 to 16
420248424
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Compression Spring
420238166
Unavailable
18
Seat Spring
420627578
Unavailable
19
Inner Half Set Ass'y | Includes 19 to 24
420281390
Unavailable
19
Clutch
420257439
Unavailable
20
Ball Bearing
420632377
Unavailable
21
Retaining Ring
420245951
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Spring Sleeve
420229577
Unavailable
24
Compression Spring
420239135
Unavailable
25
Hex. Screw M10 X 110
420441485
Unavailable
26
Thrust Washer
420627590
Unavailable
27
CVT Driven Pulley Ass'y | Includes 27 to 40
420684450
Unavailable
27
Outer Half Pulley Ass'y | Includes 27 to 32
420280178
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Ball Bearing
420932421
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
Not Available As Spare Part - Friction Washer
Unavailable
31
TORQUE GEAR - Call your local BRP dealership
420660120
Unavailable
32
Retaining Ring
420245911
Unavailable
33
Inner Half Ass'y | Includes 33 to 35
420248233
Unavailable
33
Not Available As Spare Part - Friction Washer
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
Not Available As Spare Part - Friction Washer
Unavailable
36
Compression Spring
420238340
Unavailable
37
Driven Pulley Shaft
420220913
Unavailable
38
Cam
420280250
Unavailable
39
Cam Plate
420627586
Unavailable
40
Drive Belt
422280283
Unavailable
41
Thrust Washer
420627920
Unavailable
42
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
43
Not Available As Spare Part - Friction Washer
Unavailable
43
Hex Screw M6 X 30
420440568
Unavailable
44
CVT COVER - Call your local BRP dealership
420610421
Unavailable
45
CVT Cover Gasket
420630290
Unavailable
46
Hex. Screw M12 X 140
420641812
Unavailable
47
Spring Washer
420627760
Unavailable
48
CVT Drive Ass'y | Includes 48 to 67
420684401
Unavailable
48
Governor Cup Ass'y | Includes 6 to 9
420280522
Unavailable
48
Not Available As Spare Part - Friction Washer
Unavailable
49
Slider Shoe Set
420281296
Unavailable
50
Roller Axle
417223257
Unavailable
51
Roller
417223767
Unavailable
52
Outer Half Ass'y | Includes 52 to 59
420280316
Unavailable
52
Not Available As Spare Part - Friction Washer
Unavailable
53
Not Available As Spare Part - Friction Washer
Unavailable
54
Not Available As Spare Part - Friction Washer
Unavailable
55
Not Available As Spare Part - Friction Washer
Unavailable
56
Centrifugal Lever Set | 400HO / Includes 14 to 16
420248424
Unavailable
56
Not Available As Spare Part - Friction Washer
Unavailable
57
Not Available As Spare Part - Friction Washer
Unavailable
58
Not Available As Spare Part - Friction Washer
Unavailable
59
Not Available As Spare Part - Friction Washer
Unavailable
60
Compression Spring
420238166
Unavailable
61
Seat Spring
420627578
Unavailable
62
Inner Half Set Ass'y | Includes 19 to 24
420281390
Unavailable
62
Clutch
420257439
Unavailable
63
Ball Bearing
420632377
Unavailable
64
Retaining Ring
420245951
Unavailable
65
Not Available As Spare Part - Friction Washer
Unavailable
66
Spring Sleeve
420229577
Unavailable
67
Compression Spring
420239135
Unavailable
68
Hex. Screw M10 X 110
420441485
Unavailable
69
Thrust Washer
420627590
Unavailable
70
CVT Driven Pulley Ass'y | Includes 70 to 81
420685230
Unavailable
70
Outer Half Pulley Ass'y | Includes 27 to 32
420280178
Unavailable
70
Not Available As Spare Part - Friction Washer
Unavailable
71
Ball Bearing
420932421
Unavailable
72
Not Available As Spare Part - Friction Washer
Unavailable
73
Not Available As Spare Part - Friction Washer
Unavailable
74
Torque Gear
420660124
Unavailable
75
Retaining Ring
420245911
Unavailable
76
Inner Half Ass'y | Includes 33 to 35
420248233
Unavailable
77
Not Available As Spare Part - Friction Washer
Unavailable
78
Not Available As Spare Part - Friction Washer
Unavailable
79
Not Available As Spare Part - Friction Washer
Unavailable
80
Compression Spring
420238340
Unavailable
81
Driven Pulley Shaft
420220913
Unavailable
82
Cam
420280250
Unavailable
83
Cam Plate
420627586
Unavailable
84
Drive Belt
422280283
Unavailable
85
Thrust Washer
420627920
Unavailable
86
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
