- Outlander MAX 400 XT 4 X 4, 2006
05- Gear Shift

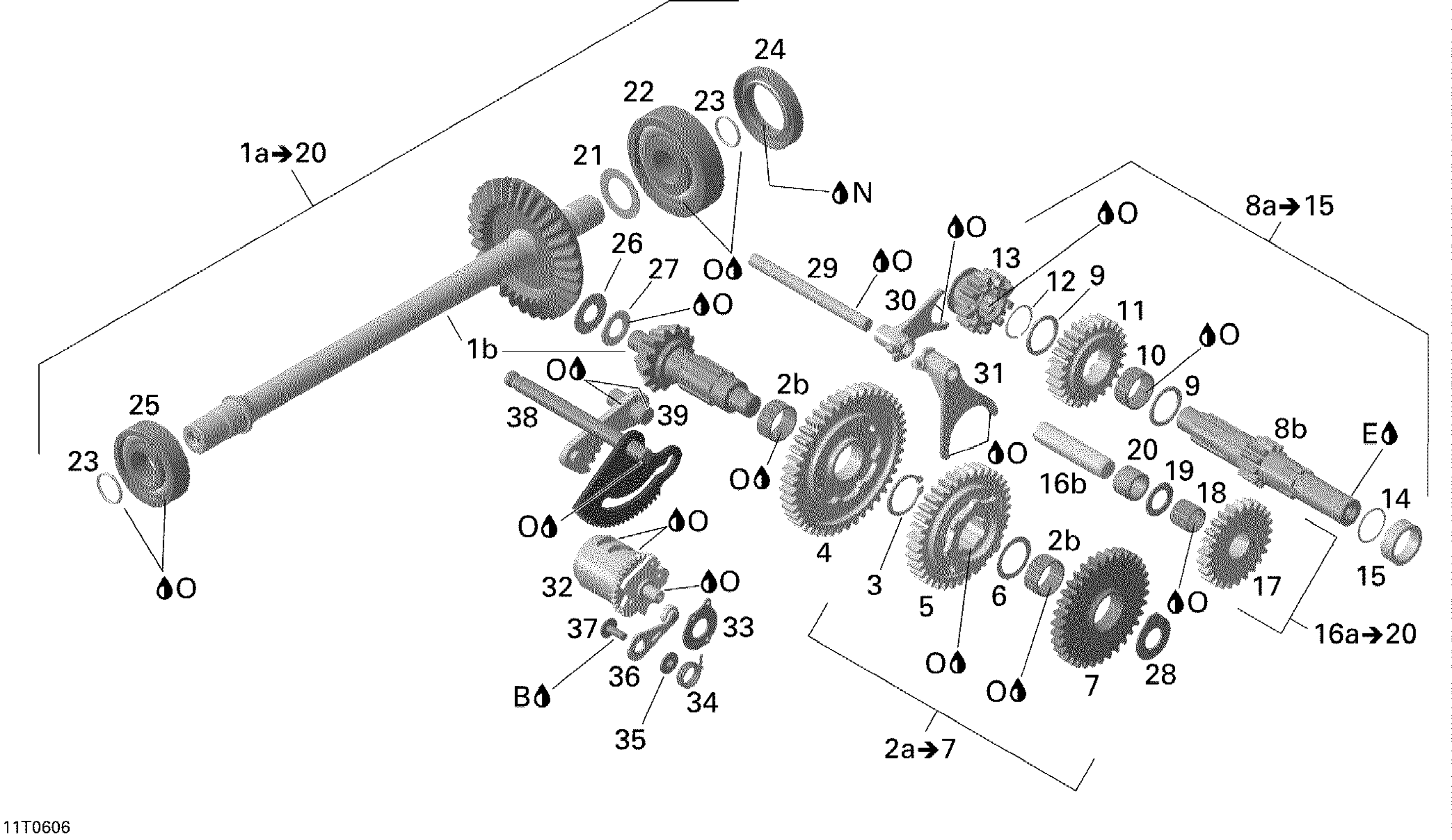

Can-Am Outlander MAX 400 XT 4 X 4, 2006 05- Gear Shift Diagram
#
1a
Drive Ass'y | 400HO, Includes 1a to 20
420684220
Unavailable
1b
BEVEL GEAR ASS?Y - Call your local BRP dealership
420296535
Unavailable
2a
Gear Wheel Set | 400HO, Includes 2a to 7
420281285
Unavailable
2b
Needle Bearing
420632070
Unavailable
3
Retaining Ring
420245850
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8a
COUNTERSHAFT ASS'Y, 11 TEETH - Call your local BRP dealership | 400HO, Includes 8a to 15
420620440
Unavailable
8b
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Needle Bearing
420632070
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Circlip
420445302
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
O-Ring
420630040
Unavailable
15
Distance Ring
420247110
Unavailable
16a
INTERMEDIATE GEAR SHAFT ASS'Y - Call your local BRP dealership | Includes 16a to 20
420635673
Unavailable
16b
Needle Pin
420229600
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Needle Cage
420432034
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Washer Thrust Set
420281300
Unavailable
22
Ball Bearing 6405
420632280
Unavailable
23
O-Ring
420430373
Unavailable
24
Oil Seal
420650682
Unavailable
25
Ball Bearing
420932822
Unavailable
26
Thrust Washer Set, MAG Side
420281306
Unavailable
27
Axial Needle Bearing
420632300
Unavailable
28
Thrust Washer Set, CVT Side
420281302
Unavailable
29
Pin
420229540
Unavailable
30
Shift Fork
420257332
Unavailable
31
Shift Fork
420257342
Unavailable
32
Shift Drum Ass'y
420257325
Unavailable
33
ISOLATING WASHER - Call your local BRP dealership
420627780
Unavailable
34
Index Spring
420238290
Unavailable
35
BUSHING - Call your local BRP dealership
420227710
Unavailable
36
Index Lever Kit
703500254
Unavailable
37
Torx Screw M6 X 16
420241529
Unavailable
38
Shift Shaft Ass'y
420620136
Unavailable
39
Parking Lock Lever
420257316
Unavailable
B
Loctite 243, 10 ml
293800060
Unavailable
E
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
N
Grease, Super Lube
293550030
Unavailable
O
Not Available As Spare Part - Friction Washer
Unavailable
