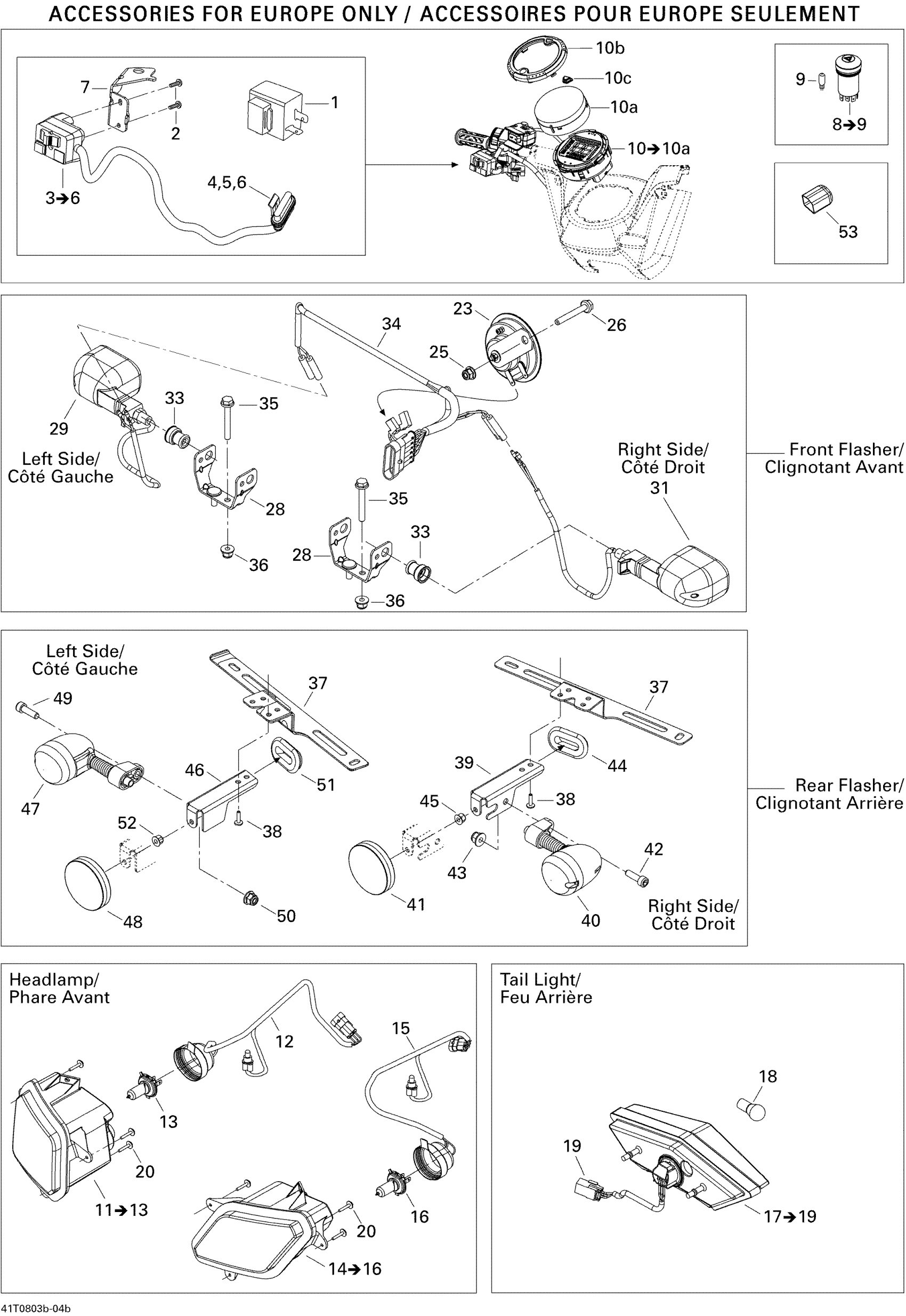

Can-Am Outlander MAX 400 XT, 2008 Electrical Accessories EURO Diagram

#

Description
Price

1

FLASHER UNIT - Call your local BRP dealership | Europe Models

710000581

Unavailable

2

Screw Hex. M4 X 12

207141260

$1.43

3

FLASHER SWITCH - Call your local BRP dealership | Includes 3 to 6

710000904

Unavailable

4

Connector

710000780

$17.88

5

Female Terminal

278001014

$3.12

6

Wire Seal

278001013

$3.12

7

Switch Support

710000905

Unavailable

8

EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe

710000367

Unavailable

9

EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership | Europe

710000661

Unavailable

10

Speedometer

710001359

Unavailable

10a

LENS - Call your local BRP dealership

415129319

Unavailable

10b

TRIM RING - Call your local BRP dealership

710000353

Unavailable

11

RH Headlamp Ass'y | Includes 11 to 13

710000861

$117.88

12

Headlamp Harness

710000923

$44.00

13

Bulb, 12V 35/35W

710000871

$32.06

14

LH Headlamp Ass'y | Includes 14 to 16

710000862

$117.88

15

Headlamp Harness

710000923

$44.00

16

Bulb, 12V 35/35W

710000871

$32.06

17

Tail Light Housing Ass'y | Includes 17 to 19

710001204

$52.21

18

Bulb

520000758

$8.60

19

Male Housing, 3 Circuits

515175494

$14.90

20

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

23

Horn

710004791

$36.54

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

26

Hex. Flange Screw M6 X 45

207664544

$1.22

28

BRACKET - Call your local BRP dealership

710000978

Unavailable

29

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

31

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

33

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

34

Front Fender Harness | Europe Models, Includes 81 To 89

710000814

Unavailable

35

Hex. Flange Screw M6 X 45

207664544

$1.22

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

37

BRACKET - Call your local BRP dealership

710001241

Unavailable

38

Pop Rivet 3/16"

390402400

$0.28

39

BRACKET - Call your local BRP dealership

710001329

Unavailable

40

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

41

Red Reflector

705011221

$11.96

42

Socket Head Screw M6 X 20

205062044

$1.22

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

44

Oblong Grommet

705003668

$5.21

45

Hex. Flange Elastic Nut M5

233251414

$1.91

46

BRACKET - Call your local BRP dealership

710001330

Unavailable

47

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

48

Red Reflector

705011221

$11.96

49

Socket Head Screw M6 X 20

205062044

$1.22

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

51

Oblong Grommet

705003668

$5.21

52

Hex. Flange Elastic Nut M5

233251414

$1.91

53

Cap

710001370

Unavailable
