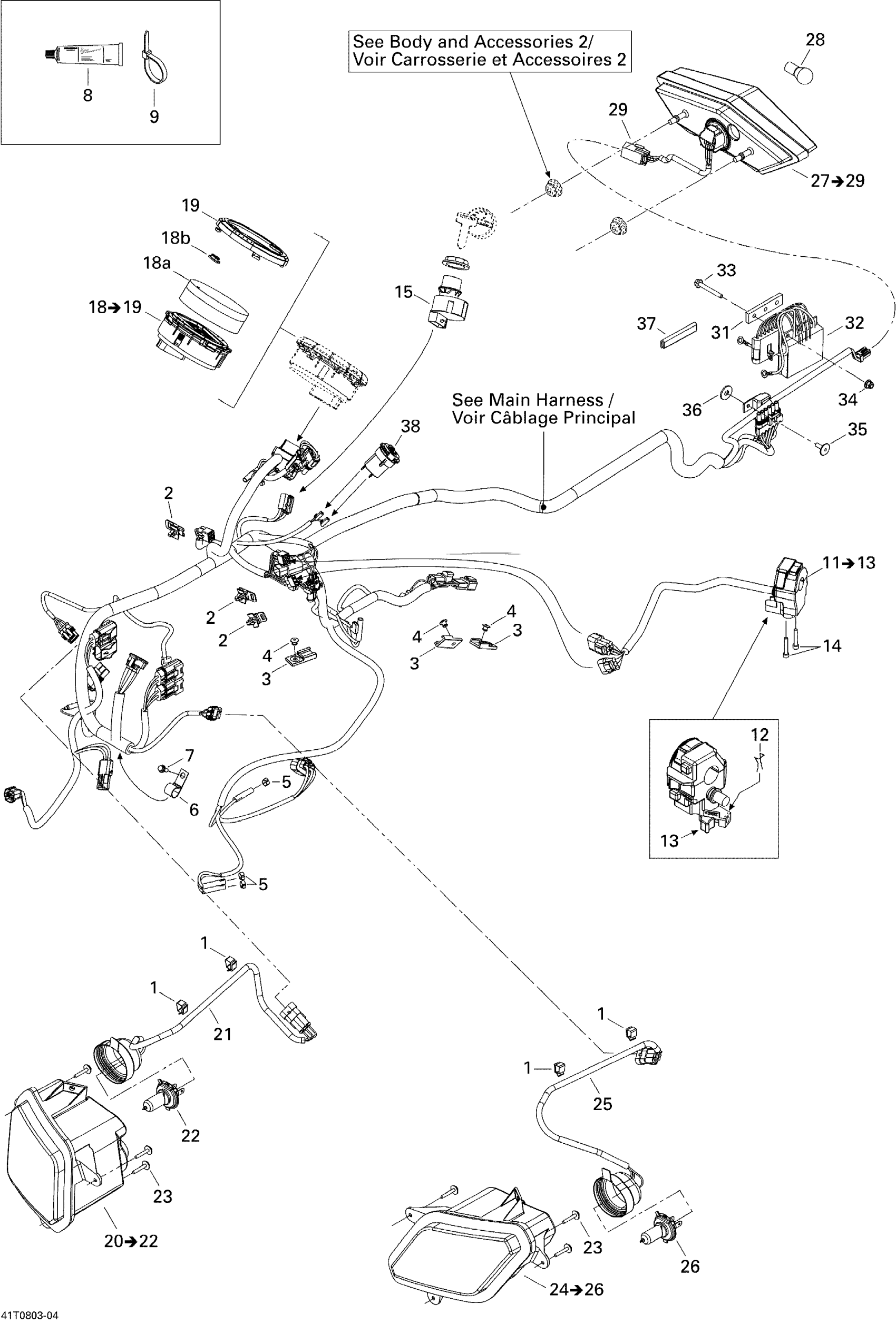

Can-Am Outlander MAX 400 XT, 2008 10- Electrical Accessories Diagram

#

Description
Price

1

Clip

414227300

Unavailable

2

Housing Support

515175283

Unavailable

3

Clip

270000141

Unavailable

4

Pop Rivet 3/16"

390402400

Unavailable

5

Oetiker Clamp

293650100

Unavailable

6

CLAMP - Call your local BRP dealership

293650181

Unavailable

7

Hex. Flange Screw M6 X 16

210261650

Unavailable

8

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

9

Tie Wrap 142 mm

293750002

Unavailable

9

Tie-Rap 173 mm

293750009

Unavailable

9

Tie-Rap 180 mm

414115200

Unavailable

9

Tie Wrap 368 mm

293750008

Unavailable

9

Tie-rap 627 mm

293750041

Unavailable

11

Multi-Fonction Handle | Includes 9 To 11

710000311

Unavailable

12

CLIP - Call your local BRP dealership

710000631

Unavailable

13

CHOKE LEVER - Call your local BRP dealership

710000632

Unavailable

14

Socket Head Screw M5 X 35

205053588

Unavailable

15

Switch_Ignition

710007867

Unavailable

18

Speedometer Ass'y | Includes 18 to 21

710003100

Unavailable

19

TRIM RING - Call your local BRP dealership

710000353

Unavailable

19a

BRP Logo13 mm

704904615

Unavailable

20

RH Headlamp Ass'y | Includes 20 to 22

710001496

Unavailable

21

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

22

Bulb, 12V 35/35W

710000871

Unavailable

23

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable

24

LH Headlamp Ass'y | Includes 24 to 26

710001497

Unavailable

25

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

26

Bulb, 12V 35/35W

710000871

Unavailable

27

Tail Light Housing Ass'y | Includes 29 to 31

710001203

Unavailable

28

Bulb

520000758

Unavailable

29

Male Housing, 3 Circuits

515175494

Unavailable

31

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

32

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

Unavailable

33

Hex. Flange Screw M6 X 50

207665044

Unavailable

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

35

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

36

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

37

Was 271000110 Protection Trim

219704353

Unavailable

38

Outlet Power Kit, 12 Volts

861507200

Unavailable
