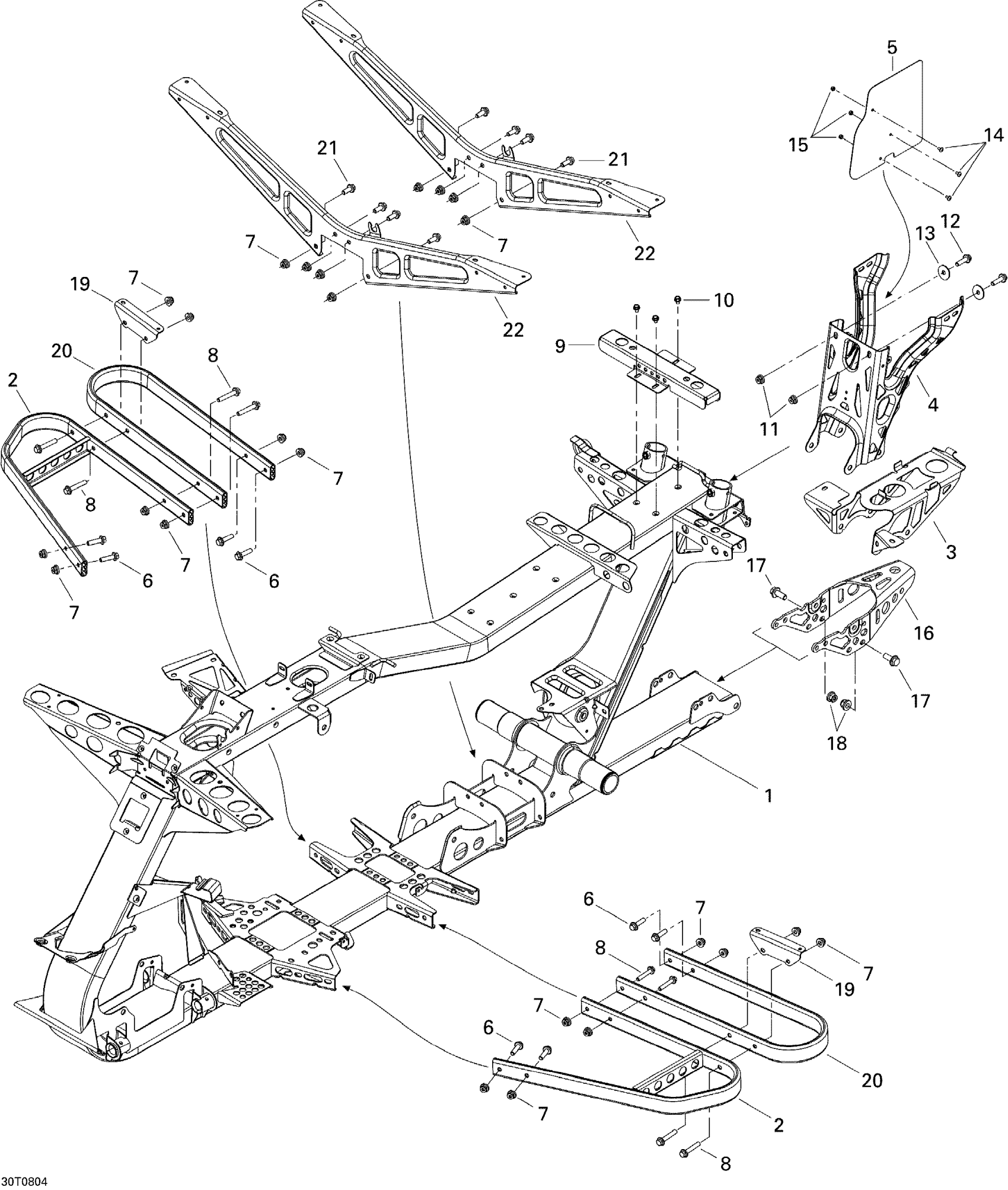

Can-Am Outlander MAX 400 XT, 2008 09- Frame, System Diagram

#

Description
Price

1

FRAME BLACK - Call your local BRP dealership

705202621

Unavailable

2

OOTBOARD ASS'Y - Call your local BRP dealership

705202081

Unavailable

3

Battery Support Base

705201942

Unavailable

4

Rear Support, Black

705203842

Unavailable

5

Heat Shield

705202394

Unavailable

6

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

7

Hex. Flange Elastic Nut M8

233281414

Unavailable

8

Hex. Flange Screw M8 X 45

207684544

Unavailable

9

Seat Support

705201260

Unavailable

10

Hex. Flange Screw M6 X 12

210261250

Unavailable

11

Hex. Elastic Flange Nut M8

233281416

Unavailable

12

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

13

Flat Washer

224081301

Unavailable

14

Torx Screw M4 X 8

250000127

Unavailable

15

Elastic Stop Nut M4

232541484

Unavailable

16

TRAILER HOOK, BLACK - Call your local BRP dealership

705201112

Unavailable

17

Hex. Flange Screw M10 X 25

207602544

Unavailable

18

Hex. Flange Elastic Nut M10

233201436

Unavailable

19

SUPPORT PLATE, BLACK - Call your local BRP dealership

705202402

Unavailable

20

REAR FOOTREST - Call your local BRP dealership

705201993

Unavailable

21

Hex. Flange Screw M8 X 20

207682044

Unavailable

22

DIAGONAL BRACE - Call your local BRP dealership

705202393

Unavailable
