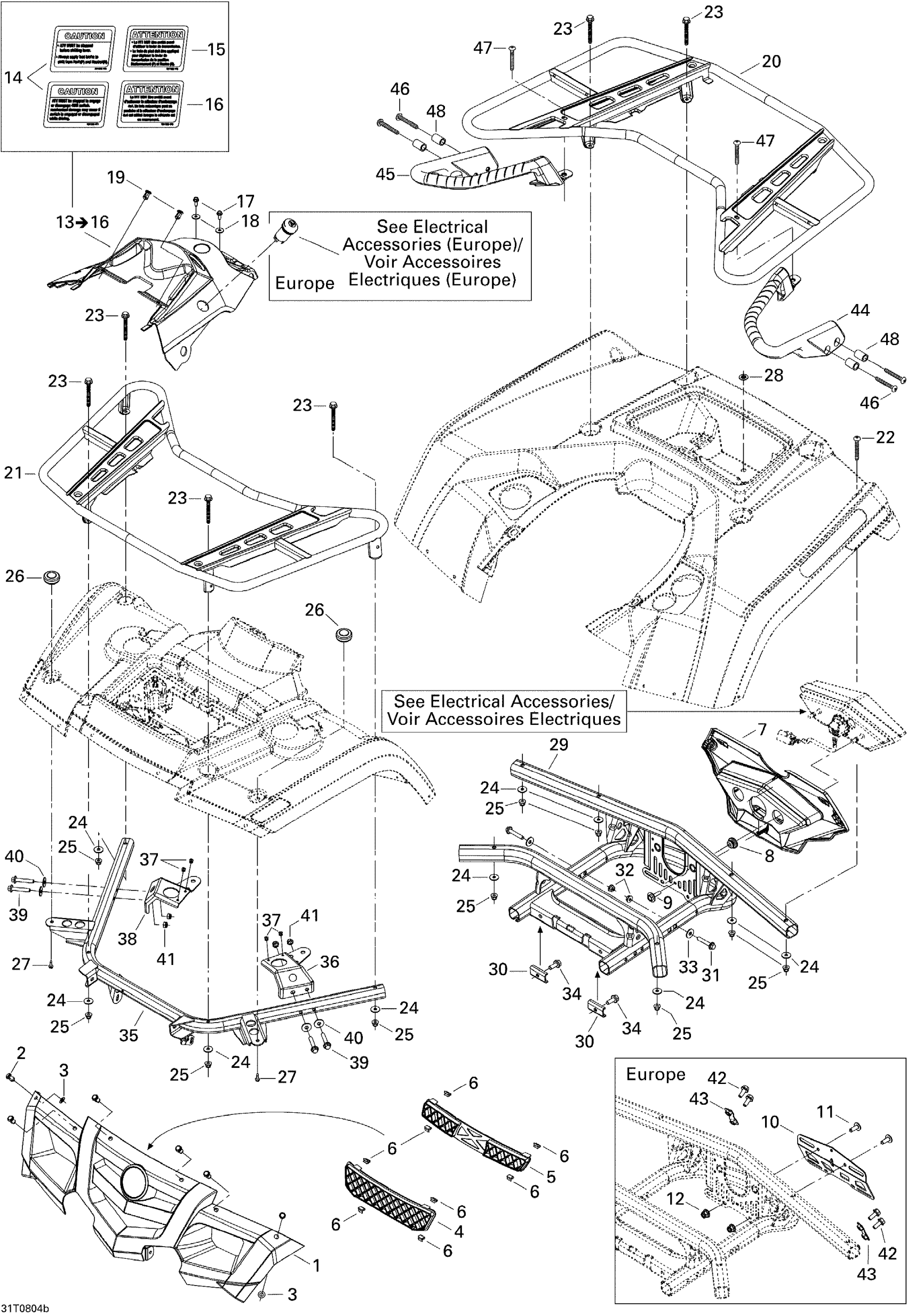

Can-Am Outlander MAX 400 XT, 2008 Body And Accessories 2 Diagram

#

Description
Price

1

FRONT FASCIA, RED - Call your local BRP dealership | Viper Red

705001313

Unavailable

1

FRONT FASCIA, YELLOW - Call your local BRP dealership | Yellow

705001991

Unavailable

1

FRONT FASCIA, GREEN - Call your local BRP dealership | Laurentian Green

705001992

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.39

3

Washer

506151252

$3.01

4

LOWER GRILL - Call your local BRP dealership

705001679

Unavailable

5

UPPER GRILL - Call your local BRP dealership

705001901

Unavailable

6

Clip | Europe Models

517306751

$1.91

7

Rear Facia

705003840

$41.01

8

Stopper Rubber

705014429

$6.09

9

Screw M4 X 16

250000725

$3.30

10

SUPPORT - Call your local BRP dealership | Europe

705002499

Unavailable

11

Torx Screw M6 X 16

250000755

$0.82

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

DASH-BOARD, RED - Call your local BRP dealership | Includes 7 to 10, Viper Red

703500668

Unavailable

13

Dash-board, Green | Includes 7 to 10, Laurentian Green

703500674

Unavailable

13

DASH-BOARD, YELLOW - Call your local BRP dealership | Includes 7 to 10, Yellow

703500670

Unavailable

13

Dash-board, Red | Includes 7 to 10, Viper Red (Europe)

703500671

Unavailable

13

DASH-BOARD, GREEN - Call your local BRP dealership | Includes 7 to 10, Laurentian Green (Europe)

703500672

Unavailable

13

DASH-BOARD, YELLOW - Call your local BRP dealership | Includes 7 to 10, Yellow (Europe)

703500673

Unavailable

14

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

15

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

16

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

17

Hex. Flange Screw M6 X 16

210261650

$1.40

18

Flat Washer

250200082

$0.40

19

Tuflok Plastic Rivet

293150230

$1.39

20

Rear Luggage Rack

705002617

$255.19

21

Front Luggage Rack

705002616

$255.19

22

Torx Truss Screw M6 X 50

250000749

$3.01

23

Hex. Flange Screw M6 X 50

207665044

$3.88

24

Flat Washer

224061201

$1.27

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

26

RUBBER CAP - Call your local BRP dealership

705002042

Unavailable

27

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

28

CAP - Call your local BRP dealership

414859400

Unavailable

29

Rear Support

705003656

$255.94

30

U Reinforcement

705003647

$6.72

31

Hex. Flange Screw M8 X 50

207685044

$1.60

32

Hex. Flange Elastic Nut M8

233281414

$1.31

33

Flat Washer 8 mm

234082410

$1.27

34

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

35

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

36

LH ANCHOR PLATE - Call your local BRP dealership

705000692

Unavailable

37

Pop Rivet 3/16"

390402300

$0.73

38

RH Anchor Plate

705002997

$16.39

39

Hex. Flange Screw M8 X 45

207684544

$3.57

40

Flat Washer 8 mm

234082410

$1.27

41

Hex. Elastic Stop Nut M8

232581414

$0.54

42

Hex Screw Washer Head M8 X 20

207582054

$3.00

43

ATTACHMENT PLATE - Call your local BRP dealership

705001075

Unavailable

44

LH Handle

705001944

Unavailable

45

RH Handle

705001945

Unavailable

46

Hex Torx Truss M8 X30

250000745

$2.96

47

Torx Truss Screw M8 X 16

250000746

$3.19

48

Bushing

705002153

$10.55
