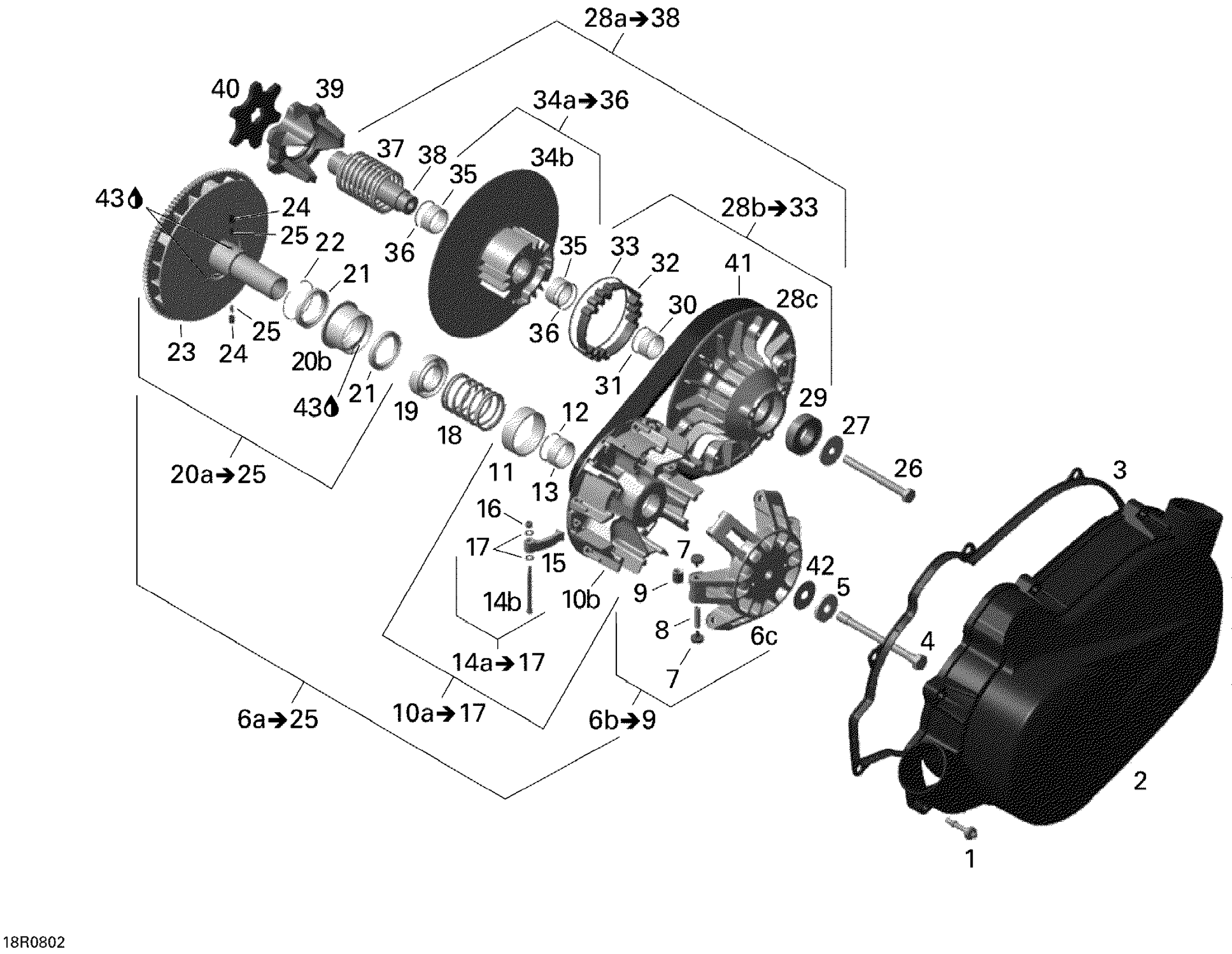

Can-Am Outlander MAX 400 XT, 2008 Transmission Diagram

#

Description
Price

1

Hex Screw M6 X 30

420440568

$7.10

2

CVT Cover

420610428

$226.12

3

CVT Cover Gasket

420630290

$32.28

4

Hex. Screw M12 X 140

420641812

$27.66

5

Spring Washer

420627760

$11.98

6a

CVT Drive Ass'y | Includes 48 to 67

420684401

Unavailable

6b

Governor Cup Ass'y | Includes 6 to 9

420280522

$253.82

6c

Not Available As Spare Part - Friction Washer

Unavailable

7

Slider Shoe Set

420281296

$42.28

8

Roller Axle

417223257

$9.22

9

Roller

417223767

$7.37

10a

Outer Half Ass'y | Includes 52 to 59

420280316

Unavailable

10b

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14a

Centrifugal Lever Set | 400HO / Includes 14 to 16

420248424

$132.99

14b

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Compression Spring

420238166

$36.89

19

Seat Spring

420627578

$28.57

20a

Inner Half Set Ass'y | Includes 19 to 24

420281390

Unavailable

20b

Clutch

420257439

$64.58

21

Ball Bearing

420632377

$40.27

22

Retaining Ring

420245951

$4.72

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Spring Sleeve

420229577

$14.92

25

Compression Spring

420239135

$6.45

26

Hex. Screw M10 X 110

420441485

$11.98

27

Thrust Washer

420627594

$12.91

28a

CVT Driven Pulley Ass'y | Includes 70 to 81

420685230

Unavailable

28b

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.99

28c

Not Available As Spare Part - Friction Washer

Unavailable

29

Ball Bearing

420932421

$26.89

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Torque Gear

420660124

$23.05

33

Retaining Ring

420245911

$5.98

34a

Inner Half Ass'y | Includes 33 to 35

420248233

$308.74

34b

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Compression Spring

420238340

Unavailable

38

Driven Pulley Shaft

420220913

$129.20

39

Cam

420280250

$41.51

40

Cam Plate

420627586

$46.12

41

Drive Belt

422280283

$99.74

42

Thrust Washer

420627920

$7.37

43

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72
