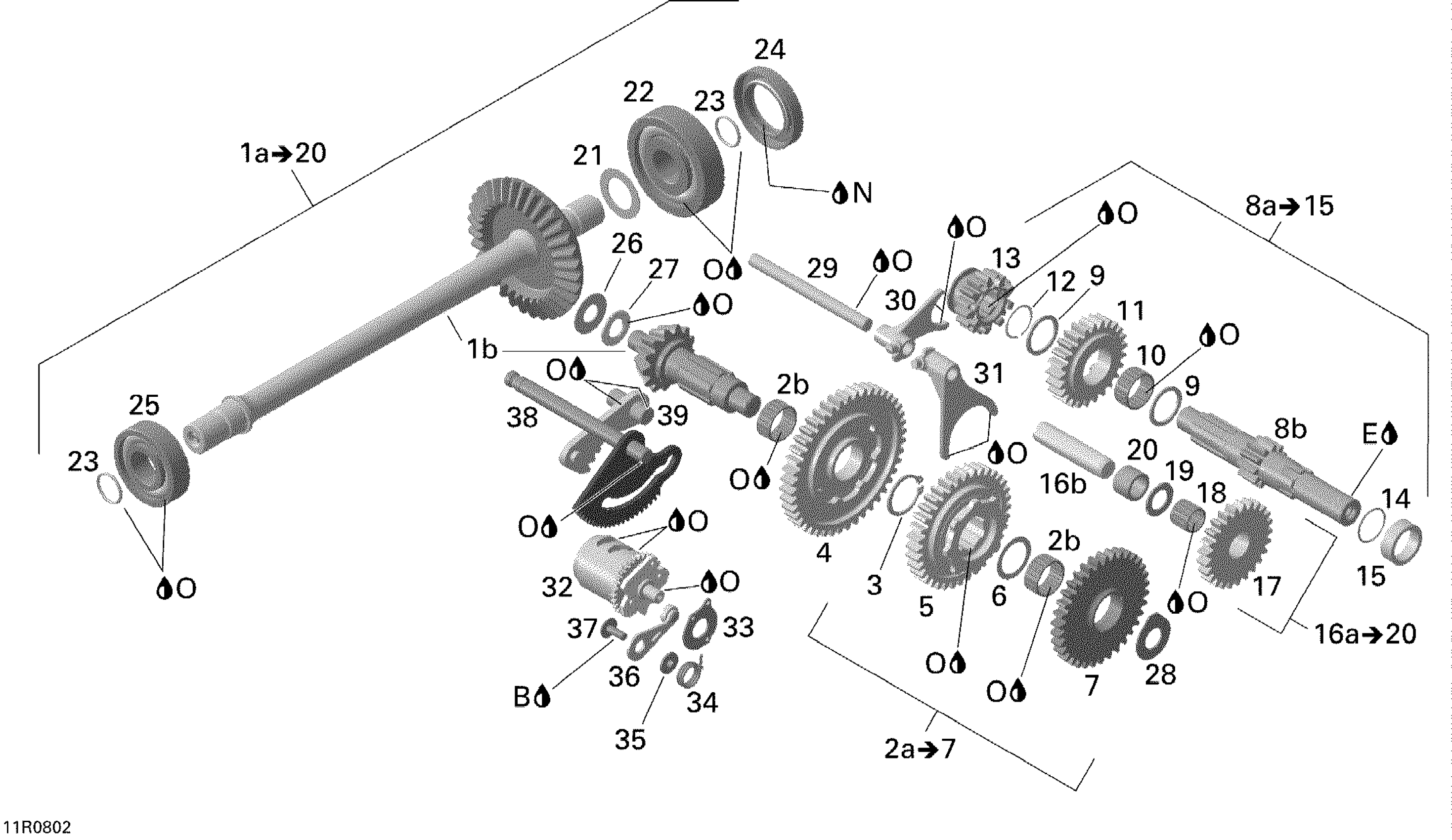

Can-Am Outlander MAX 400 XT, 2008 Gear Shift Diagram

#

Description
Price

1a

Drive Ass'y | 400HO, Includes 1a to 20

420684220

Unavailable

1b

BEVEL GEAR ASS?Y - Call your local BRP dealership

420296535

Unavailable

2a

Gear Wheel Set | 400HO, Includes 2a to 7

420281285

$459.20

2b

Needle Bearing

420632070

$23.05

3

Retaining Ring

420245850

$5.98

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8a

COUNTERSHAFT ASS'Y, 11 TEETH - Call your local BRP dealership | 400HO, Includes 8a to 15

420620440

Unavailable

8b

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Needle Bearing

420632070

$23.05

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Circlip

420445302

$4.03

13

Not Available As Spare Part - Friction Washer

Unavailable

14

O-Ring

420630040

$3.61

15

Distance Ring

420247110

Unavailable

16a

INTERMEDIATE GEAR SHAFT ASS'Y - Call your local BRP dealership | Includes 16a to 20

420635673

Unavailable

16b

Needle Pin

420229600

$36.89

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Needle Cage

420432034

$34.58

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Washer Thrust Set

420281300

$92.28

22

Ball Bearing 6405

420632280

$93.82

23

O-Ring

420430373

$2.63

24

Oil Seal

420650682

$18.43

25

Ball Bearing

420932822

$28.97

26

Thrust Washer Set, MAG Side

420281306

$59.97

27

Axial Needle Bearing

420632300

$17.57

28

Thrust Washer Set, CVT Side

420281302

$83.05

29

Pin

420229540

$23.05

30

Shift Fork

420257332

$119.97

31

Shift Fork

420257342

$96.89

32

Shift Drum Ass'y

420257325

$119.97

33

ISOLATING WASHER - Call your local BRP dealership

420627780

Unavailable

34

Index Spring

420238290

$11.06

35

BUSHING - Call your local BRP dealership

420227710

Unavailable

36

Index Lever Kit

703500254

$50.74

37

Torx Screw M6 X 16

420241529

$1.56

38

Shift Shaft Ass'y

420620136

$91.51

39

Parking Lock Lever

420257316

$55.35

B

Loctite 243, 10 ml

293800060

$20.77

E

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

N

Grease, Super Lube

293550030

$24.67

O

Not Available As Spare Part - Friction Washer

Unavailable
