- Outlander MAX 400 STD 4 X 4, 2007
10- Electrical System STD

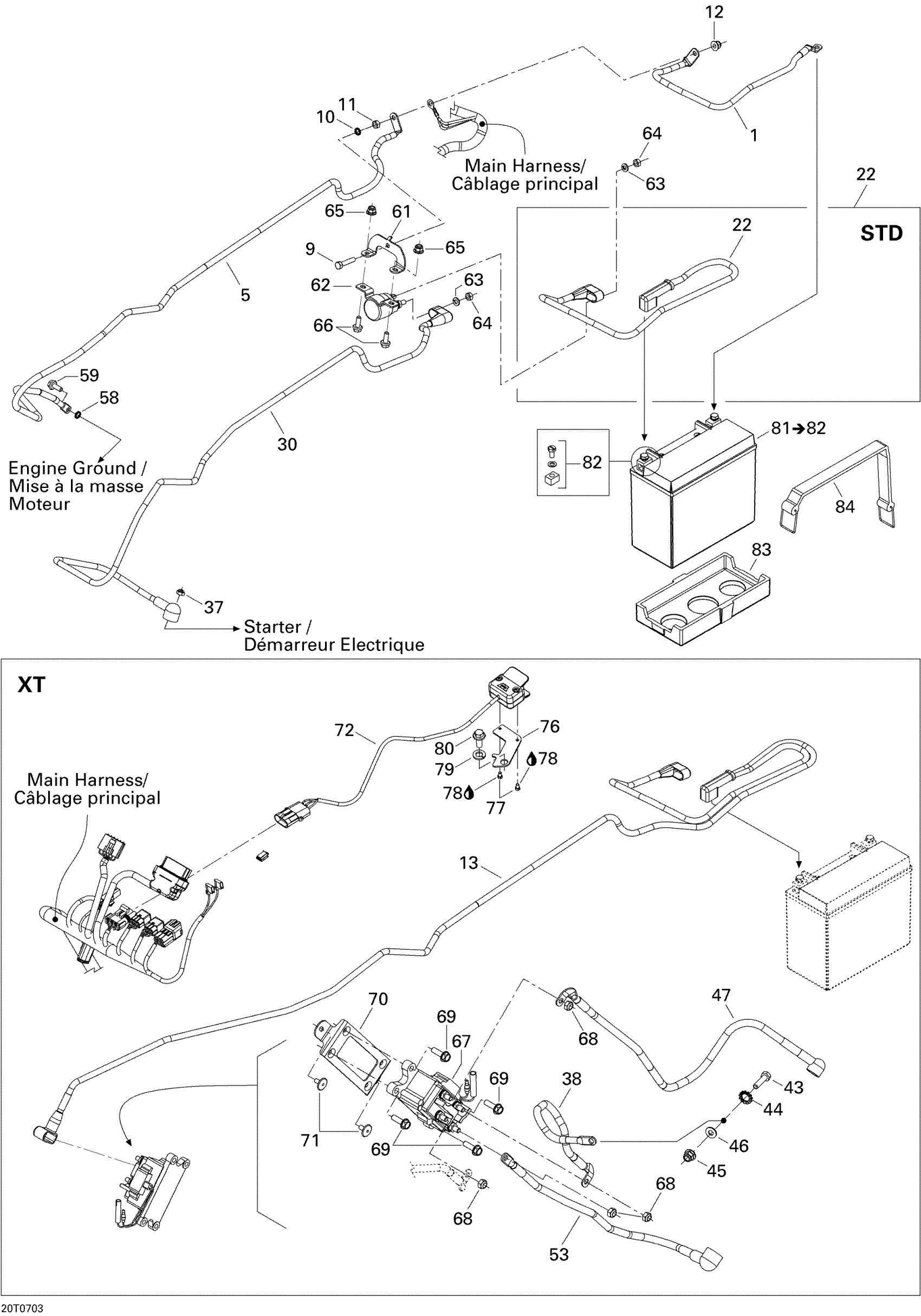

Can-Am Outlander MAX 400 STD 4 X 4, 2007 10- Electrical System STD Diagram
#
1
Ground Cable Ass'y, Battery/Frame | Includes 1 to 4
710000830
Unavailable
5
GROUND CABLE - Call your local BRP dealership | Includes 5 to 8
710000844
Unavailable
9
Hex. Screw M6 X 25
207162544
Unavailable
10
External Serrated Lock Washer 6 mm
234461608
Unavailable
11
Hex. Nut M6
232061414
Unavailable
12
Hex. Flange Nut M6
233061414
Unavailable
13
Not Available As Spare Parts
XXX
Unavailable
22
Positive Cable Ass'y | STD, Includes 22 to 28
710001822
Unavailable
30
POSITIVE CABLE - Call your local BRP dealership | Includes 30 to 36
710001819
Unavailable
37
Elastic Stop Nut M6
232561414
Unavailable
38
Not Available As Spare Parts
XXX
Unavailable
43
Not Available As Spare Parts
XXX
Unavailable
44
Not Available As Spare Parts
XXX
Unavailable
45
Not Available As Spare Parts
XXX
Unavailable
46
Not Available As Spare Parts
XXX
Unavailable
47
Not Available As Spare Parts
XXX
Unavailable
53
Not Available As Spare Parts
XXX
Unavailable
58
External Serrated Lock Washer 6 mm
234461608
Unavailable
59
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
61
SOLENOID SUPPORT - Call your local BRP dealership
710001260
Unavailable
62
Starter Relay
515176011
Unavailable
63
Lock Washer Helical M6
234161601
Unavailable
64
Hex. Nut M6
232061600
Unavailable
65
Hex. Flange Nut M6
233061414
Unavailable
66
Hex. Flange Screw M6 X 12
207661244
Unavailable
67
Not Available As Spare Parts
XXX
Unavailable
68
Not Available As Spare Parts
XXX
Unavailable
69
Not Available As Spare Parts
XXX
Unavailable
70
Not Available As Spare Parts
XXX
Unavailable
71
Not Available As Spare Parts
XXX
Unavailable
72
Not Available As Spare Parts
XXX
Unavailable
76
Not Available As Spare Parts
XXX
Unavailable
77
Not Available As Spare Parts
XXX
Unavailable
78
Not Available As Spare Parts
XXX
Unavailable
79
Not Available As Spare Parts
XXX
Unavailable
80
Not Available As Spare Parts
XXX
Unavailable
81
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
82
Battery Bolt Kit
250000282
Unavailable
83
INSULATOR PAD - Call your local BRP dealership
710000279
Unavailable
84
Retainer Strap
293850097
Unavailable
