09- Body And Accessories 3, STD

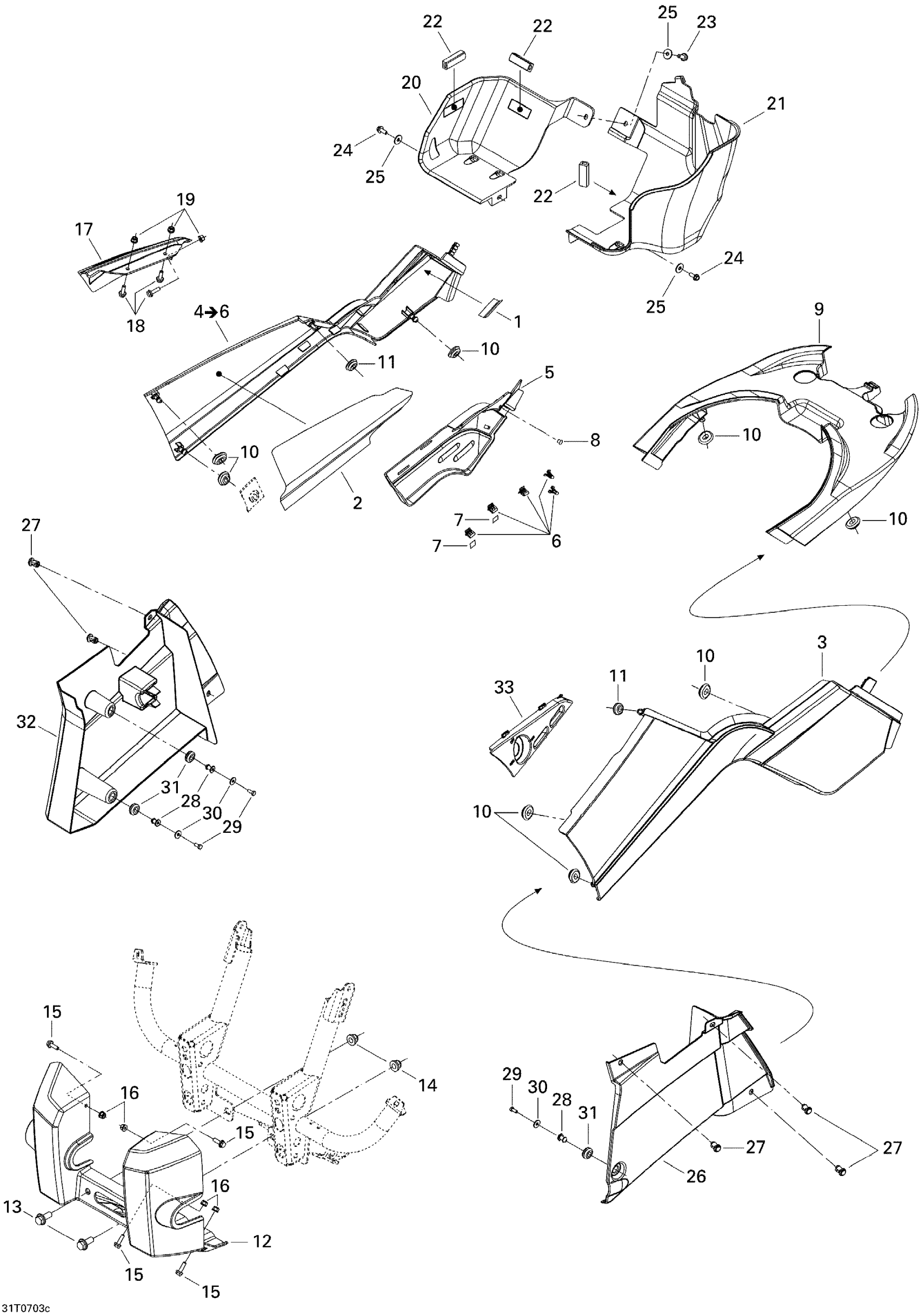

Can-Am Outlander MAX 400 STD 4 X 4, 2007 09- Body And Accessories 3, STD Diagram
#
1
Heat Shield | Europe
517305451
Unavailable
2
REFLECTIVE SHEET - Call your local BRP dealership
705000750
Unavailable
3
PANEL_BODY LH B-176 - Call your local BRP dealership
705003484
Unavailable
3
LH PANEL, LAURENTIAN GREEN - Call your local BRP dealership
705000915
Unavailable
3
PANEL_BODY LH B-190 - Call your local BRP dealership
705003483
Unavailable
4
RH Panel, Viper Red | Includes Item 3, 5, and 7
703500411
Unavailable
4
RH Panel, Laurentian Green | Includes Item 3, 5, and 7
703500412
Unavailable
4
RH Panel, Yellow | Includes Item 3, 5, and 7
703500413
Unavailable
5
Muffler Cover
705000689
Unavailable
6
Edge Clip
517302785
Unavailable
7
Heat Shield | Europe
517305451
Unavailable
8
Rubber Bumper
293830005
Unavailable
9
RED STORAGE TRAY - Call your local BRP dealership | Viper Red
705002954
Unavailable
9
YELLOW STORAGE TRAY - Call your local BRP dealership | Yellow
705002952
Unavailable
9
STORAGE TRAY, GREEN - Call your local BRP dealership | Laurentian Green
705002953
Unavailable
10
Oval Washer
705005156
Unavailable
11
Grommet
705003264
Unavailable
12
GUARD PLATE - Call your local BRP dealership | STD
705003495
Unavailable
13
Hex. Flange Screw M10 X 25
207602544
Unavailable
14
Hex. Flange Elastic Nut M10
233201414
Unavailable
15
Hex. Flange Screw M6 X 20
207662044
Unavailable
16
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
17
LEVER INDICATOR - Call your local BRP dealership
705001529
Unavailable
18
Hex. Flange Screw M6 X 20
207662044
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
20
RH TANK PROTECTOR - Call your local BRP dealership
705000554
Unavailable
21
LH TANK PROTECTOR - Call your local BRP dealership
705002176
Unavailable
22
Was 293200017 Neoprene Seal
219704365
Unavailable
23
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
24
Hex. Flange Screw M6 X 12
210261250
Unavailable
25
Flat Washer
250200082
Unavailable
26
LH Inner Fender
705000652
Unavailable
27
Tuflok Plastic Rivet
293150230
Unavailable
28
Knob
517303439
Unavailable
29
Torx Screw K50 X 16
250000720
Unavailable
30
Washer | DS 650 X
391301600
Unavailable
31
Grommet
709000582
Unavailable
32
INNER FENDER - Call your local BRP dealership
705002640
Unavailable
33
VALVE SUPPORT - Call your local BRP dealership
705001691
Unavailable
